Pepperl Fuchs PSE4-SC-01
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Safety Control Units |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can PSE4-SC-01 be shipped?
PSE4-SC-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up PSE4-SC-01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for PSE4-SC-01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for PSE4-SC-01, subject to availability and destination.

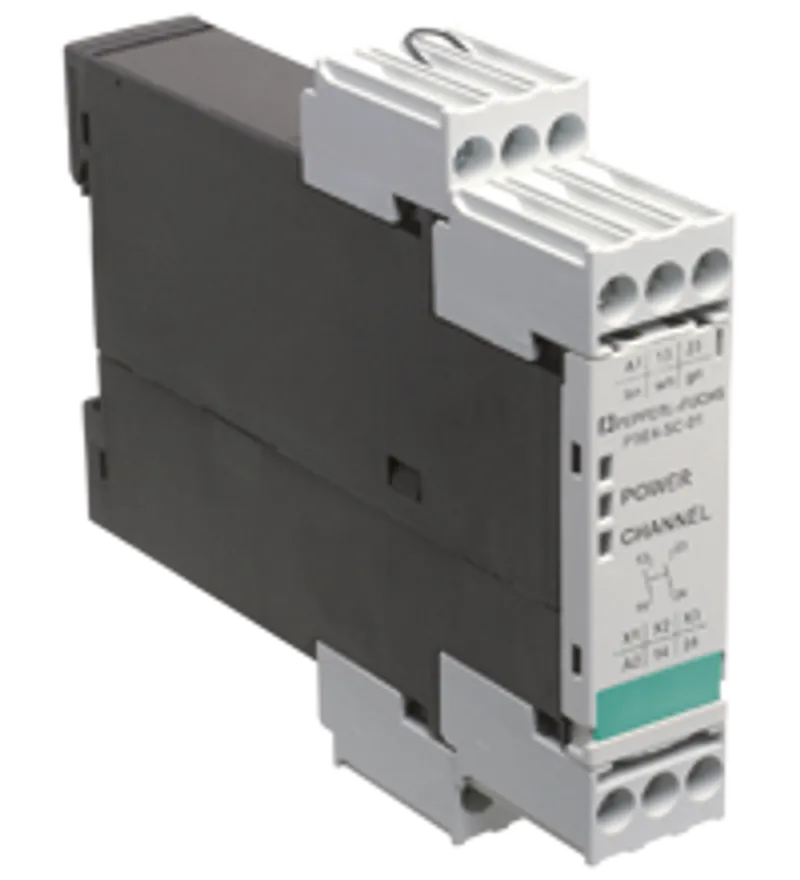

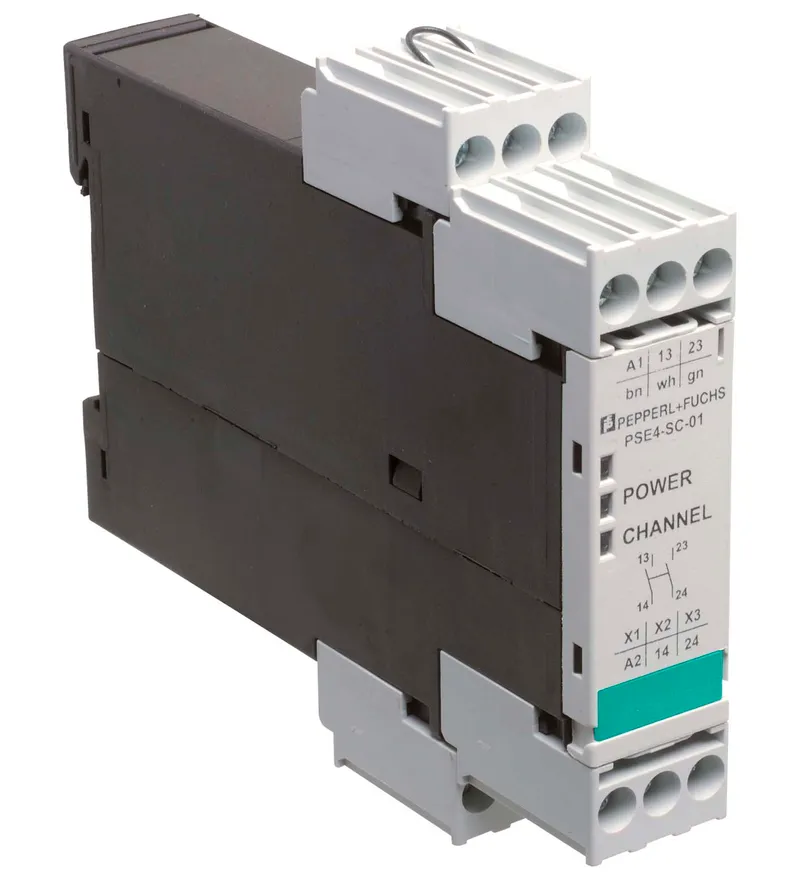

Safety control unit. Safety control unit, For evaluating safety thru-beam sensors PSE4-SL, Safety category 4 according to EN61496-1, 24 V DC supply voltage, 2 safe output contacts, Performance level PLe (EN13849-1) is attainable, Component of PSE4 modular system, Number of channels: 1-channel, Performance level (PL): PL e, Category: Cat. 4, Operating voltage: 24 V DC +20/-10 %, Connection: screw terminals , Cable cross-section 0.2 ... 2.5 mm<sup>2</sup>. Permissible cable length: 200 m. Performance level (PL): PL e. Category: Cat. 4. MTTFd: 100 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 99 %. Operation indicator: LED green: Power on. Function indicator: LED green. Operating voltage: 24 V DC +20/-10 %. Power consumption: < 4 W. Signal output: relay, 2 NO. Switching voltage: max. 250 V AC/DC. Switching current: max. 4 A. Switching power: 1000 VA. Response time: 32 ms. Functional safety: ISO 13849-1. Product standard: EN 12978 ; ISO 13856-2. UL approval: cULus Listed File no: NRNT.E344450. TÜV approval: TÜV Rheinland 968/M 301.00/11. Ambient temperature: 5 ... 55 °C (41 ... 131 °F). Pollution degree: 2. Degree of protection: IP20. Connection: screw terminals , Cable cross-section 0.2 ... 2.5 mm2. Material: Polyethylene (PE). Mass: approx. 200 g. Dimensions: . Height100 mmWidth22.5 mmDepth120 mm: . Height: 100 mm. Width: 22.5 mm. Depth: 120 mm
Specifications
Limit data
| Permissible cable length | 200 m |
Functional safety related parameters
| Performance level (PL) | PL e |
| Category | Cat. 4 |
| MTTFd | 100 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 99 % |
Indicators/operating means
| Operation indicator | LED green: Power on |
| Function indicator | LED green |
Electrical specifications
| Operating voltage | 24 V DC +20/-10 % UB |
| Power consumption | < 4 W P0 |
Output
| Signal output | relay, 2 NO |
| Switching voltage | max. 250 V AC/DC |
| Switching current | max. 4 A |
| Switching power | 1000 VA |
| Response time | 32 ms |
Conformity
| Functional safety | ISO 13849-1 |
| Product standard | EN 12978 ; ISO 13856-2 |
Approvals and certificates
| UL approval | cULus Listed File no: NRNT.E344450 |
| TÜV approval | TÜV Rheinland 968/M 301.00/11 |
Ambient conditions
| Ambient temperature | 5 ... 55 °C (41 ... 131 °F) |
| Pollution degree | 2 |
Mechanical specifications
| Degree of protection | IP20 |
| Connection | screw terminals , Cable cross-section 0.2 ... 2.5 mm2 |
| Material | Polyethylene (PE) |
| Mass | approx. 200 g |

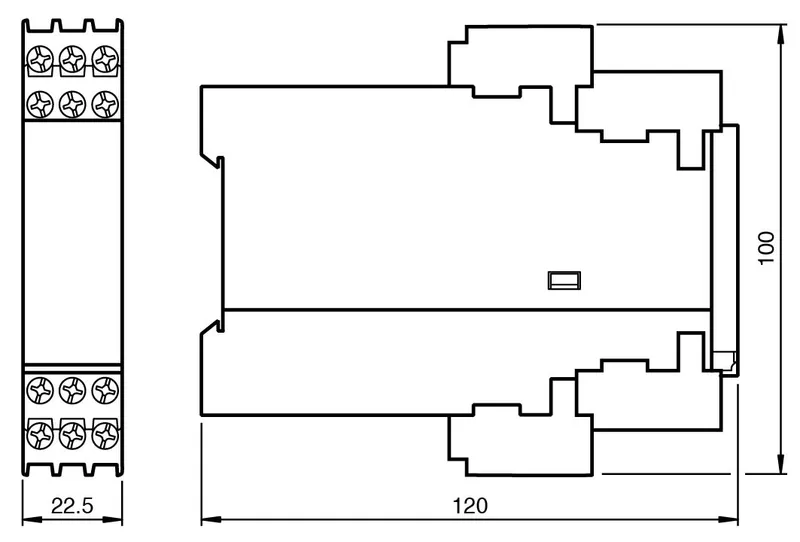

| Dimensions | |
| Height100 mmWidth22.5 mmDepth120 mm | Height |
| Height | 100 mm |
| Width | 22.5 mm |
| Depth | 120 mm |
