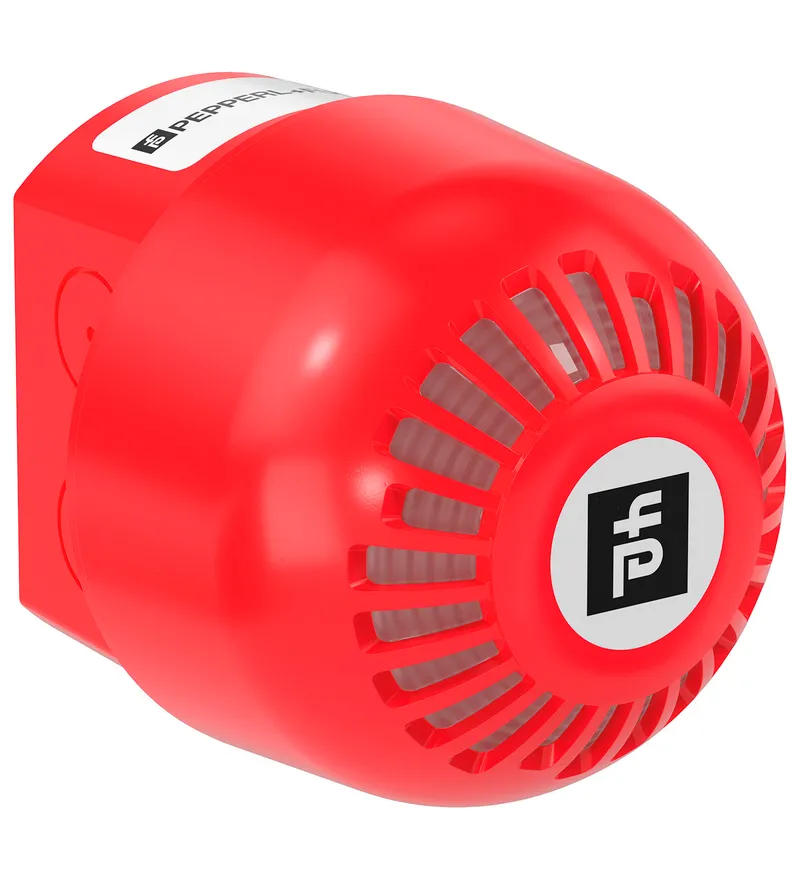

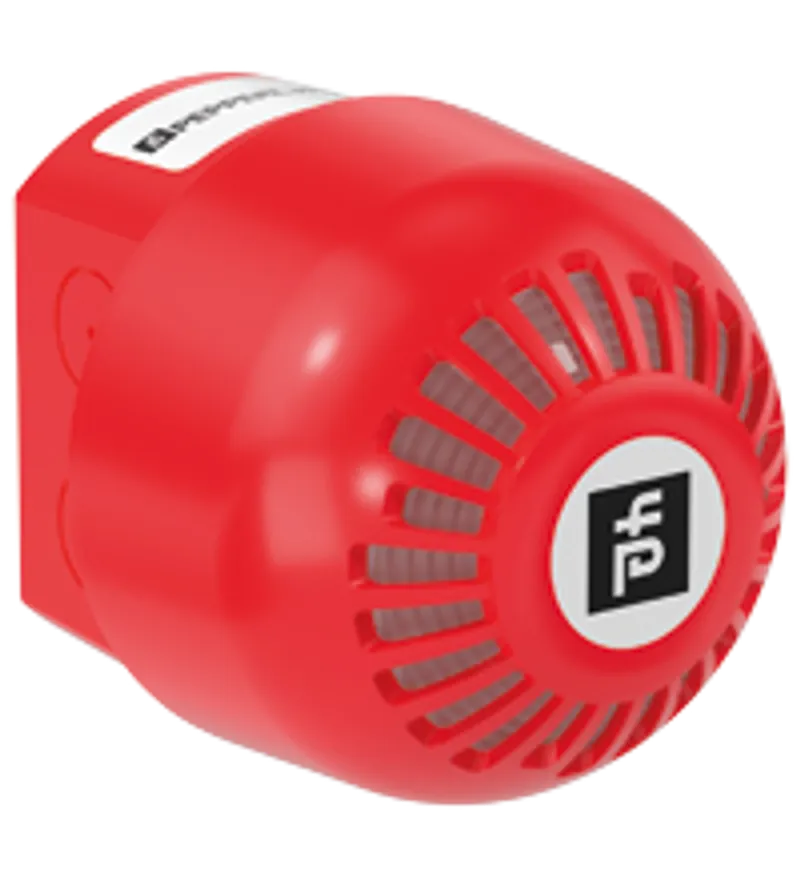

Pepperl Fuchs PF-IS-CM-105-*
Alarm sounder/signal beacon
- MPN
- PF-IS-CM-105-*
- Category
- Signaling Devices (Ex d, Ex i)
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs PF-IS-CM-105-*?
ATEX, IECEx and UKEX approval
For use in Zone 0, 1, 2, 20, 21, 22 and mining applications
Max. output of 105 dB
Available with 32 tones and 2 stages
Flashing or steady state options
Recommended for fire, security and process control applications
Degree of protection: IP 66
Compliant with EN 54-3
Diode polarized and end of line resistor compatible
ATEX, IECEx and UKEX approval, For use in Zone 0, 1, 2, 20, 21, 22 and mining applications, Max. output of 105 dB, Available with 32 tones and 2 stages, Flashing or steady state options, Recommended for fire, security and process control applications, Degree of protection: IP 66, Compliant with EN 54-3, Diode polarized and end of line resistor compatible
Specifications
Electrical specifications
| Order code (Pepperl+Fuchs part number) | T221771 |
| Operating voltage | 16 ... 28 V DC , via zener barrier or galvanic isolator |
| Operating current | 31 mA @ 24 V DC max. - value measured with Zener barrier connected |
| Terminal capacity | 0.5 ... 2.5 mm2 |
| Function | alarm sounder with flashing signal beacon LED |
| Lens color | red , amber , green , blue or clear |
| Flash mode | 1 Hz flash 60 FPM or steady light high power |
| Luminous intensity | Dependent on head selected |
| Effective luminous intensity, measured | 4.22 cd max. value measured with Zener barrier connected |
| Illuminant, type | array of 9x high-intensity LEDs |
| Sound pressure level, maximum | 105 dB @ 1 m +/- 3 dB - sound 18 , 95 dB @ 3 m |
| Sound pressure level, nominal | 87 dB @ 1 m +/- 3 dB - sound 1 |
| Number of sounds | 32 |
| Number of stages | 2 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Mechanical specifications
| Enclosure cover | fully detachable |
| Cover fixing | Stainless steel screws |
| Degree of protection | IP66 |

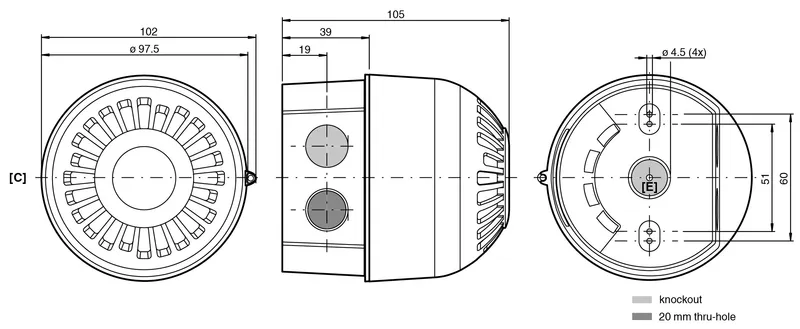

| Cable entry face C: M20 quantity | 1 |
| Cable entry face C: M20 type | thru-holes |
| Cable entry face C: M20 info | without entry devices (ordered separately) |
| Cable entry face E: M20 quantity | 1 |
| Cable entry face E: M20 type | knockout |
| Material: Enclosure | Polycarbonate UL94 V2 |
| Material: Finish | RAL 3000 (red) |
| Material: Seal | nitrile O-ring |
| Material: Seal insert | Neoprene |
| Mass | 0.29 kg |
| Grounding | Internal connection |
Ambient conditions
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
Data for application in connection with hazardous areas
| EU-type examination certificate | ERO 24 ATEX 0014X |
| Marking | II 1 GD Ex ia IIC T5 Ga Ex ia IIIC T200 85°C Da [exsign] I M1 Ex ia I Ma |
| Equipment: Voltage | 28 V max. Ui |
| Equipment: Current | 93 mA max. Ii |
| Equipment: Power | 660 mW max. Pi |
| Equipment: Internal capacitance | 0 µF max. Ci |
| Equipment: Internal inductance | 0 mH max. Li |
International approvals
| IECEx approval | IECEx EMT 24.0011X |
| UKCA approval | EMA 24 UKEX 0006X |
| Further approvals | available on request |
Conformity
| Degree of protection | EN 60529 |
| CE marking | 2829 |
| UKCA marking | 2503 |
General information
| Scope of delivery | device Instruction leaflet Gasket set Allen wrench anti-rotation grub screw |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
Accessories
| Optional accessories | CG.PIDS1.M20.PA.C.10.K01.LN55 SP.PE.M20.* |
