Pepperl Fuchs PCV*-CA40-*
Quick facts
| Availability | Confirmed on request |
| Category | Camera-Based Linear Positioning |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can PCV*-CA40-* be shipped?
PCV*-CA40-* is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up PCV*-CA40-* in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for PCV*-CA40-* and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for PCV*-CA40-*, subject to availability and destination.

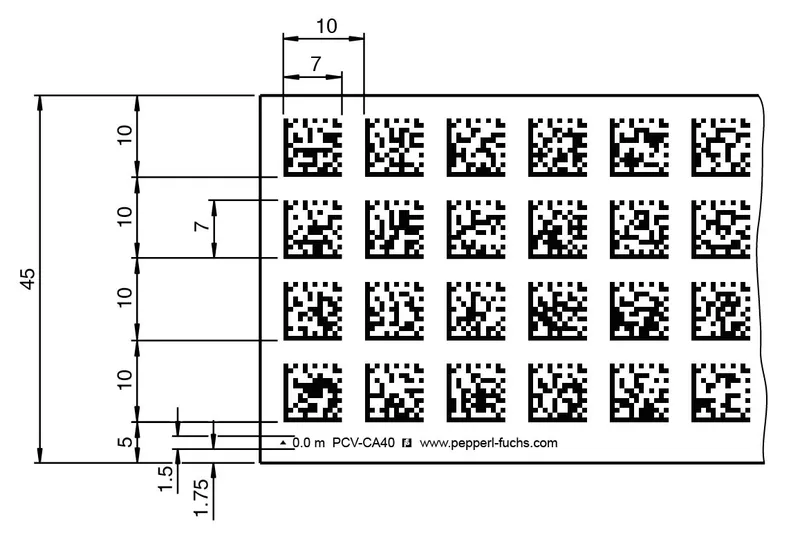

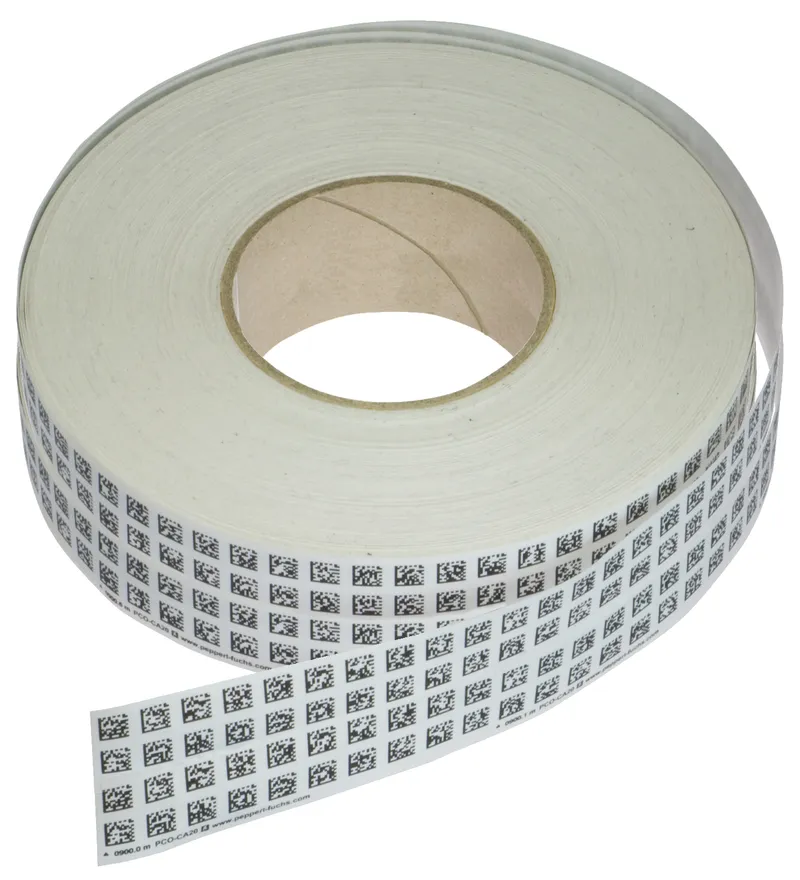

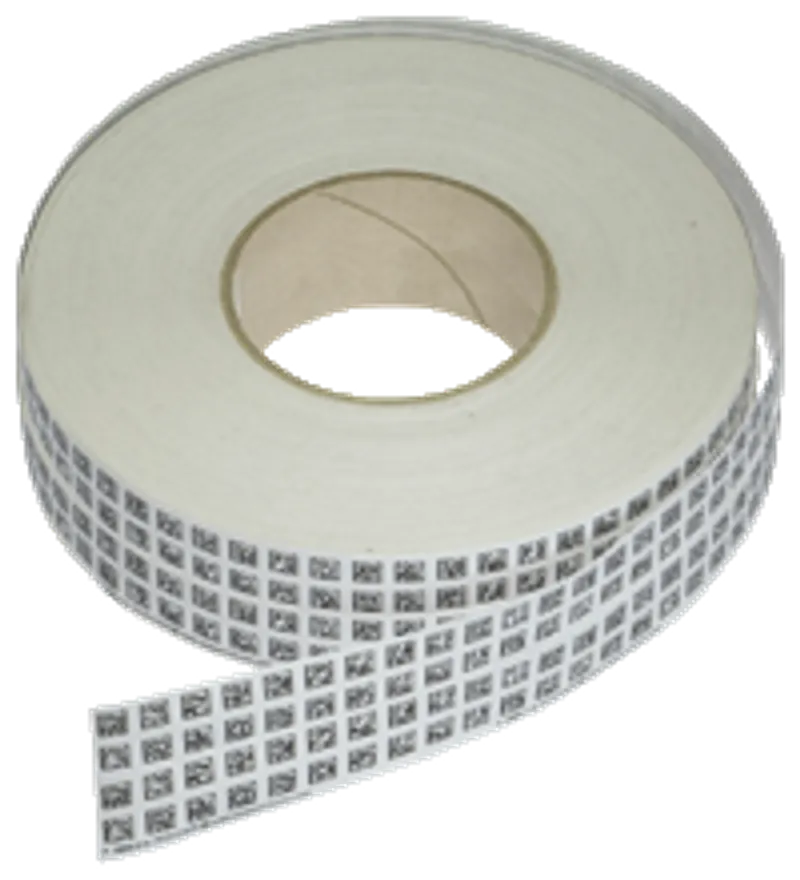

Code tape. Data Matrix code tape, High chemical resistance, Low weight, Self-adhesive mounting, High temperature resistance, High mechanical stability. Start position: 0 … 9900 m(see Order Information). Length: 6 ... 100 m (see Order Information). External diameter: max. 180 mm (with max. code tape length of 100 m). Inside diameter: 76 mm ( role core ). Operating temperature: -40 ... 100 °C (-40 ... 212 °F). Installation temperature: 10 ... 40 °C (50 ... 104 °F). Environmental resistance: UV radiation Humidity Salt spray (150 h / 5%). Chemical resistance: Oils Grease Fuels Aliphatic solvents Weak acids. Material thickness: 150 µm. Material: polyester laminate. Surface: polyester , matte. Mass: 6.3 g / m2. Tensile strength: ≥ 270 N. Storage: Maximum 2 years under normal storage conditions.. Adhesive: Acrylate-based adhesive ; curing 72 h. Adhesive strength: Average values (FTM2) Aluminum : 24 N / 25 mm High grade stainless steel : 25 N / 25 mm ABS : 22 N / 25 mm PP : 18 N / 25 mm HD-PE : 12 N / 25 mm LD-PE : 12 N / 25 mm. Note: Max. code tape length of 100 m per roll
Specifications
General specifications
| Start position | 0 … 9900 m(see Order Information) |
| Length | 6 ... 100 m (see Order Information) |
| External diameter | max. 180 mm (with max. code tape length of 100 m) |
| Inside diameter | 76 mm ( role core ) |
Ambient conditions
| Operating temperature | -40 ... 100 °C (-40 ... 212 °F) |
| Installation temperature | 10 ... 40 °C (50 ... 104 °F) |
| Environmental resistance | UV radiation Humidity Salt spray (150 h / 5%) |
| Chemical resistance | Oils Grease Fuels Aliphatic solvents Weak acids |
Mechanical specifications
| Material thickness | 150 µm |
| Material | polyester laminate |
| Surface | polyester , matte |
| Mass | 6.3 g / m2 |
| Tensile strength | ≥ 270 N |
| Storage | Maximum 2 years under normal storage conditions. |
| Adhesive | Acrylate-based adhesive ; curing 72 h |
| Adhesive strength | Average values (FTM2) Aluminum : 24 N / 25 mm High grade stainless steel : 25 N / 25 mm ABS : 22 N / 25 mm PP : 18 N / 25 mm HD-PE : 12 N / 25 mm LD-PE : 12 N / 25 mm |
| Note | Max. code tape length of 100 m per roll |
