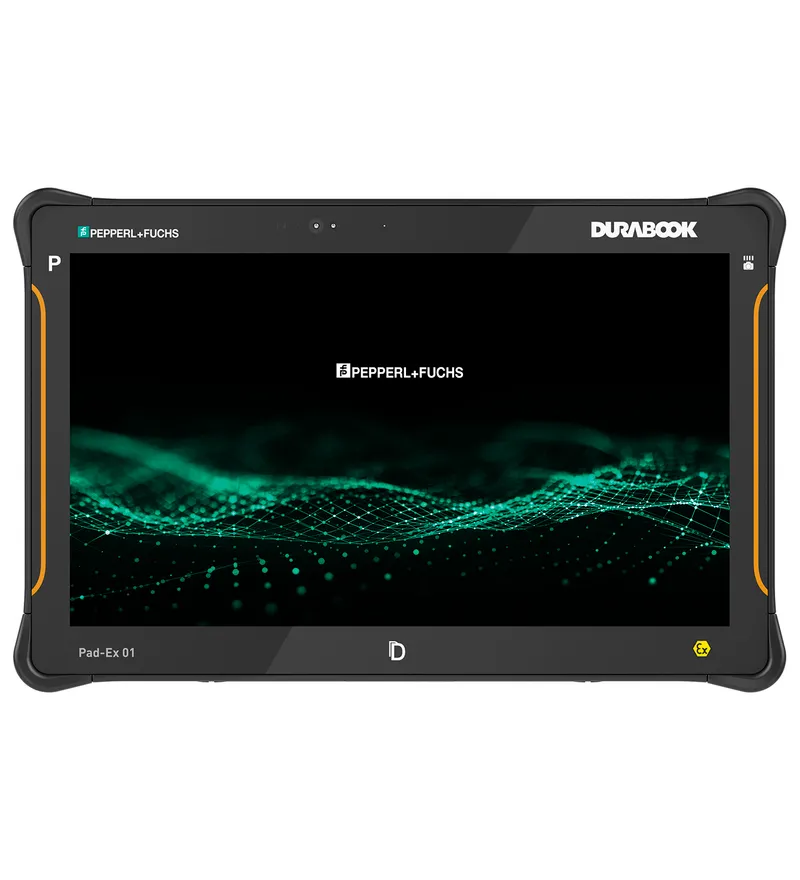

Pepperl Fuchs PAD-EX01P12-D2*
Tablet computer
- MPN
- PAD-EX01P12-D2*
- Category
- Division 2
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs PAD-EX01P12-D2*?
12th generation Intel® Core processor, Windows® 11 Pro
Intel® Wi-Fi 6E
11.6" FHD DynaVueWindows® SR display with 1000 nits
11 MP camera with autofocus and LED flash
Can be used in sunlight
Thunderbolt® 4
Micro HDMI
6 keys, including 2 user-definable keys
TPM 2.0
Support for 4G LTE and GPS/Augmented Reality
Sierra Wireless EM 7565 Module
1-D/2-D barcode scanner
MIL-STD-810H / MIL-STD-461F standard
Division 2, 11.6 inch display, Windows® 11 Pro
Specifications
Hardware
| Order code (Pepperl+Fuchs part number) | T217573 |
| Processor | Intel® Core i5-1235U, 12. Gen. |
| RAM | 16 GByte DDR5 |
| Camera: Front camera | 2 MP |
| Camera: Main camera | 11 MP Autofocus |
| Scanner | Optional:1-D/2-D barcode scanner Honeywell N670X Series scan engine |
| Internal data memory | 256 GByte NVMe PCIe SSD |
| Sensors | Acceleration sensor, gyroscope and e-compass, light sensor |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Indicators/operating means
| Display: Touch screen technology | Capacitive multitouch |
| Display: Panel type | TFT, LCD |
| Display: Screen size | 29.5 cm (11.6 ") |
| Display: Aspect ratio | 16:9 |
| Display: Resolution | 1920x1080 (Full HD) |
| Display: Brightness | 1000 cd/m2 (nit) |
| Display: Colors | 16 Mio. |
| Display: Special Features | Can be operated while wearing gloves |
| Key | On/off Volume up / down Windows Touch button Barcode / Camera Touch Button Programmable Touch Button |
Electrical specifications
| Battery type | Li-Ion battery 43.29 WH 11.1 V 3900 mAh |
Interface
| I/O ports | 1x Thunderbolt® 4 1x USB 3.2 Gen 2 (Type A) 1x Micro-HDMI 1x Audio in/out (combo jack) 1x microSD card (microSDXC) 1x Docking connector (35-pin Pogo) 1x DC-In jack |
Communication
| Mobile standard | Also available in a Wi-Fi only version. |
| 3G | HSPA+B1, B2, B4, B5, B6, B8, B9, B19 |
| 4G | LTE Please note (only U.S. market): AT&T is the only supported mobile carrier for the U.S. market. B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18, B19, B20, B26, B28, B29, B30, B32, B41, B42, B43, B46, B48, B66 |
| WLAN | Intel® Wi-Fi 6E AX211 (802.11a/b/g/n/ac/ax) |
| Bluetooth | Bluetooth® 5.3 |
| GPS sensor | GPS, Glonass, Beidou, Galileo |
| SIM card | Optional:1x Nano SIM |
Software
| Operating system | Windows® 11 Pro (64 Bit) TPM 2.0 |
| Languages | Deutsch , English (default) |
Ambient conditions
| Ambient temperature | -10 ... 55 °C (14 ... 131 °F) |
| Storage temperature | -10 ... 55 °C (14 ... 131 °F) |
Mechanical specifications
| Degree of protection | IP64 MIL-STD-810H / MIL-STD-461F |
| Mass | 1200 g |
| Dimensions: Height | 20 mm |
| Dimensions: Width | 298 mm |
| Dimensions: Length | 192 mm |
International approvals
| SGS approval: SGS certificate | SGSNA/24/SUW/00031X |
| SGS approval: Approved for | Class I, Zone 2, AEx ic IIC T4 Gc IP64 Class I, Div 2, Groups A-D T4 Zone 22, AEx ic IIIB T135°C Dc Class II, Div 2, Class III, Div 1, Groups F, G, T135°C Ex ic IIC T4 Gc IP64 Ex ic IIIB T135°C Dc IP64 |
General information
| Scope of delivery | Pad-Ex® Power supply Power cable Dock Connector with Pass-Through Hand strap Documentation Stylus pen with tether |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
Certificates (1)
PAD-EX01P12-D2*: frequently asked questions
When can PAD-EX01P12-D2* be shipped?
PAD-EX01P12-D2* is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up PAD-EX01P12-D2* in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for PAD-EX01P12-D2* and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for PAD-EX01P12-D2*, subject to availability and destination.
