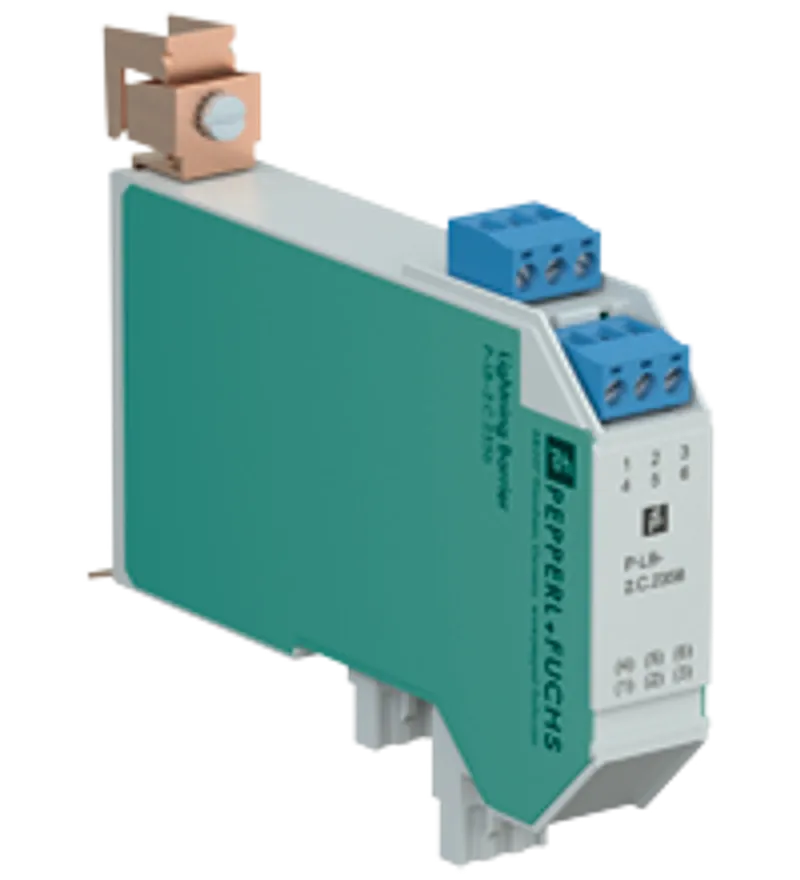

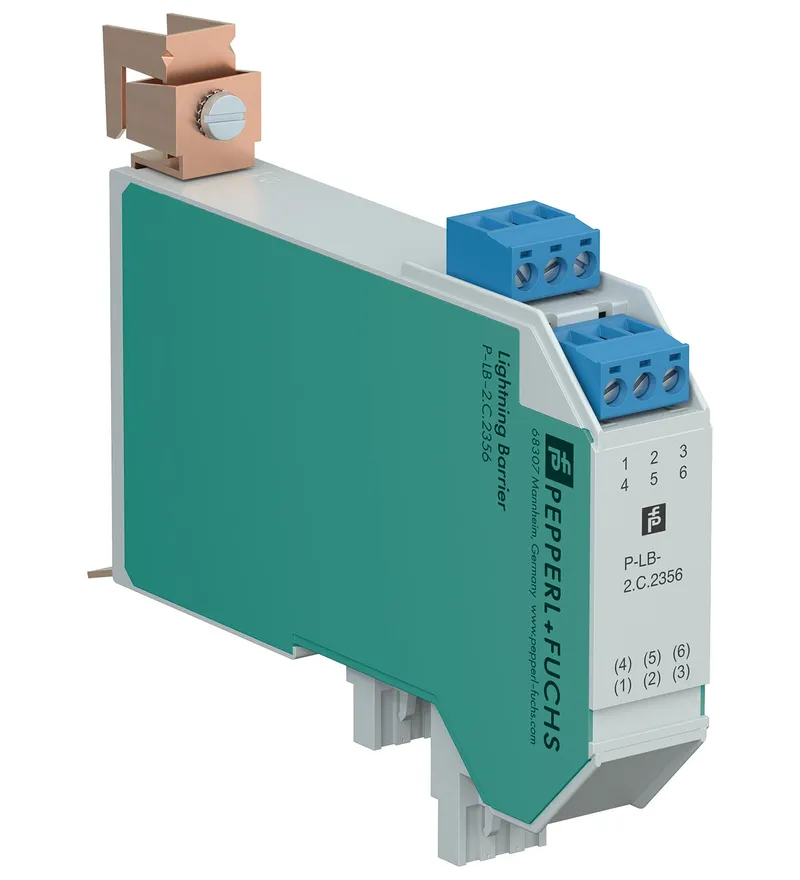

Pepperl Fuchs P-LB-2.C.2356
Surge Protection Barrier
- MPN
- P-LB-2.C.2356
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs P-LB-2.C.2356?
2-channel
Plugs directly in to field side of KF modules
Analog or digital signal inputs
Surge protection up to 10 kA
Protects leads 2, 3, 5 and 6 of KF modules
Uninterruptable operation (auto reset)
Up to SIL 3 acc. to IEC/EN 61508
2-channel, Plugs directly in to field side of KF modules, Analog or digital signal inputs, Surge protection up to 10 kA, Protects leads 2, 3, 5 and 6 of KF modules, Uninterruptable operation (auto reset), Up to SIL 3 acc. to IEC/EN 61508
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 103643 |
| Number of protected signal lines | 4 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| Safety Integrity Level (SIL) | SIL 3 |
Signal lines
| Connection | Terminals 2, 3; 5, 6 |
| Rated voltage | max. 30 V UB |
| Rated current | max. 250 mA IB |
| Leakage current | max. 5 µA |
| On-state voltage | max. 45 V |
| Ground insulation | max. 500 V breakdown voltage |
Conformity
| Degree of protection | IEC 60529:2001 |
Ambient conditions
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
Mechanical specifications
| Degree of protection | IP20 |
| Mass | approx. 70 g |
| Dimensions | 20 x 104 x 127 mm (0.8 x 4.1 x 5 inch) (W x H x D) |
| Mounting | on the KF module |
Data for application in connection with hazardous areas
| EU-type examination certificate | PTB 02 ATEX 2044 |
| Marking | II (1)G [Ex ia Ga] IIC |
| Voltage | 30 V Ui |
| Current | 250 mA Ii |
| Internal capacitance | negligible Ci |
| Internal inductance | 200 µH Li |
| Maximum leakage current | 10 kA (8/20 µs) per conductor |
| Nominal response time: Symmetrical | 1 ns |
| Nominal response time: Asymmetric | 100 ns |
| Series resistor | ≤ 0.5 Ω per wire |
| Bandwidth | ≥ 40 kHz |
| Certificate | PF 16 CERT 3908 X |
| Marking | II 3G Ex nA IIC T4 Gc |
| Directive conformity: Directive 2014/34/EU | EN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-15:2010 |
International approvals
| IECEx approval: IECEx certificate | IECEx BAS 12.0123 |
| IECEx approval: IECEx marking | [Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I |
General information
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
Certificates (5)
P-LB-2.C.2356: frequently asked questions
When can P-LB-2.C.2356 be shipped?
P-LB-2.C.2356 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up P-LB-2.C.2356 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for P-LB-2.C.2356 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for P-LB-2.C.2356, subject to availability and destination.
