Pepperl Fuchs OMH-RL28
Mounting aid
- MPN
- OMH-RL28
- Category
- Accessories
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via

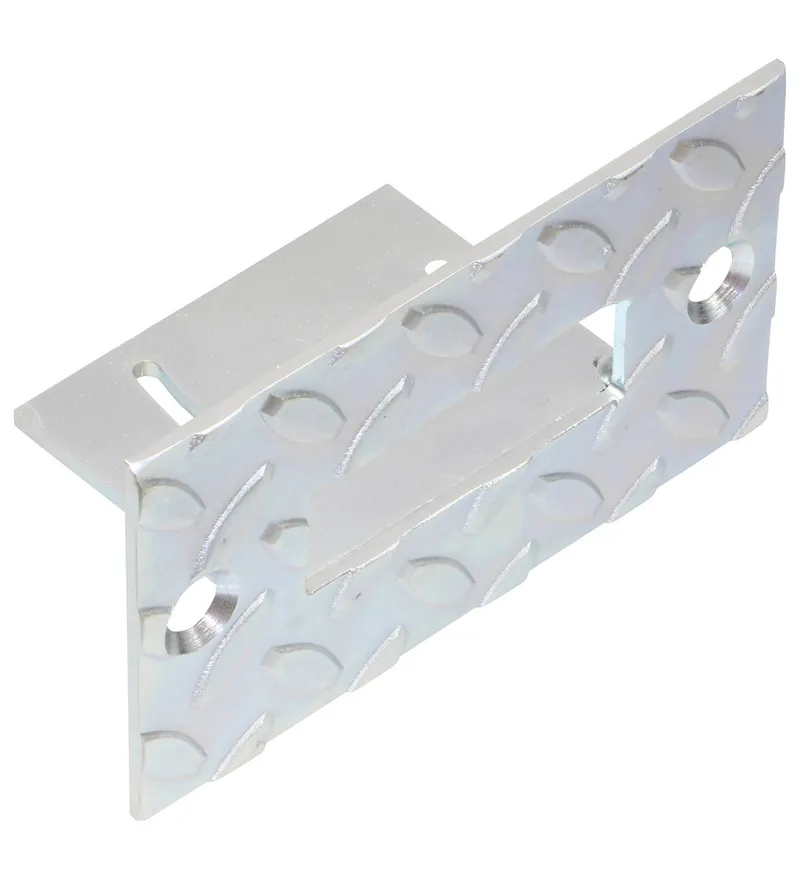

What is the Pepperl Fuchs OMH-RL28?
Mounting bracket
Simple and fast mounting
Retainer, Mounting bracket, Simple and fast mounting
Specifications
Ambient conditions
| Order code (Pepperl+Fuchs part number) | 250350 |
| Ambient temperature | -40 ... 80 °C (-40 ... 176 °F) |
| Storage temperature | -40 ... 80 °C (-40 ... 176 °F) |
| Lifecycle | Active (current Pepperl+Fuchs product) |

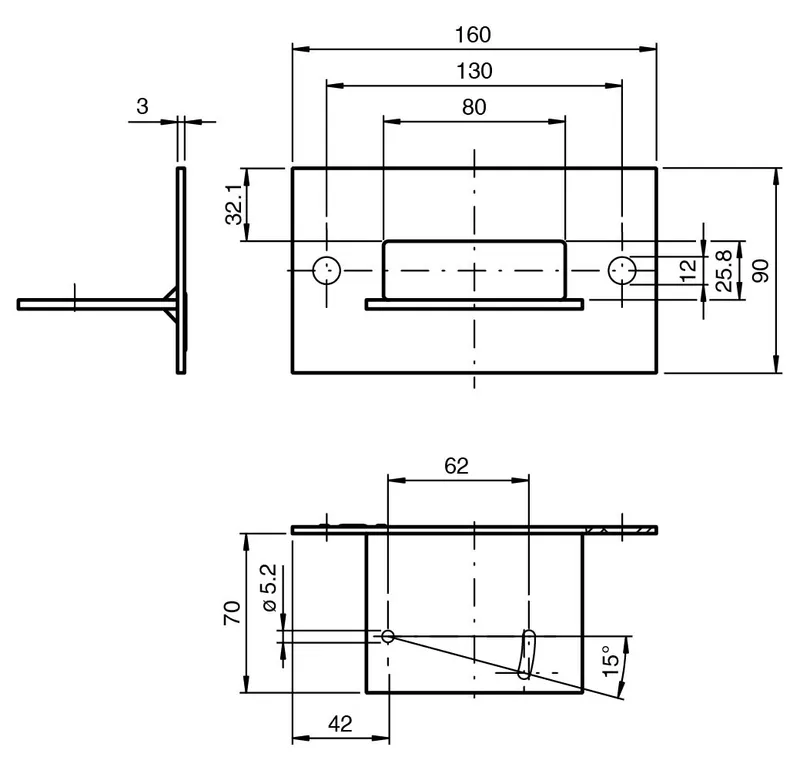

Mechanical specifications
| Material: Housing | Zinc plated steel |
| Mass | approx. 530 g |
| Dimensions: Height | 70 mm |
| Dimensions: Width | 90 mm |
| Dimensions: Length | 160 mm |
| Mounting | Mounting accessories included |
Suitable series
| Safety Series | RLK28 SLP / SLC RL28 |
No matching specifications
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
OMH-RL28: frequently asked questions
When can OMH-RL28 be shipped?
OMH-RL28 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up OMH-RL28 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for OMH-RL28 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for OMH-RL28, subject to availability and destination.
More Pepperl Fuchs parts
