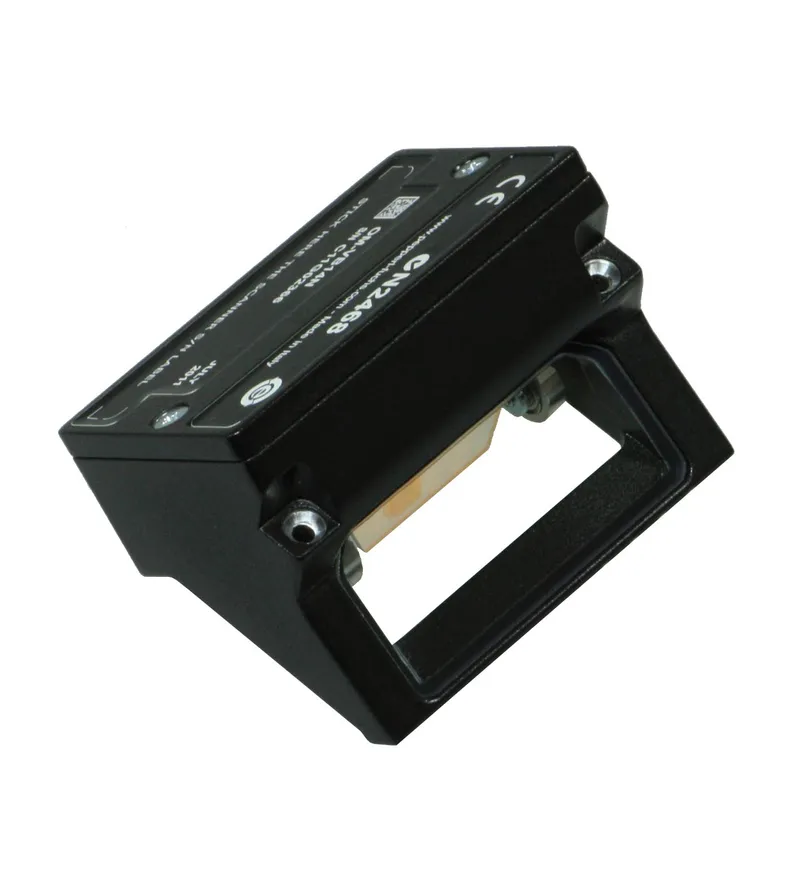

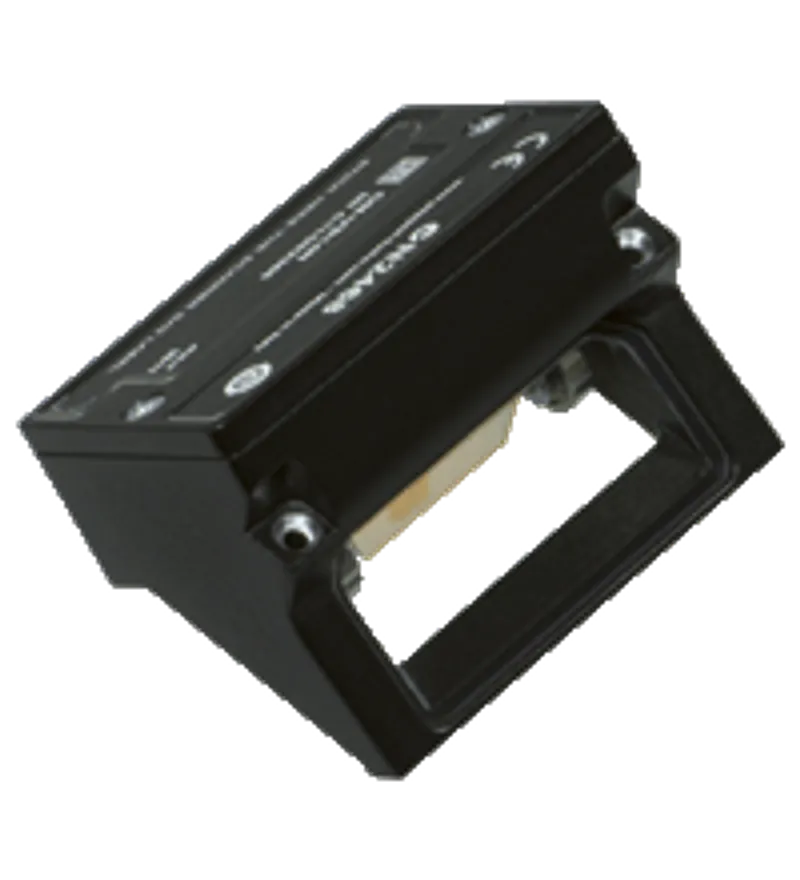

Pepperl Fuchs OM-VB14N

Oscillating mirror

MPN: OM-VB14N
Category: Accessories for Optical Identification

Price and lead time confirmed within 1 business day

Discontinued by Pepperl Fuchs — we can still source the original OM-VB14N (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Pepperl Fuchs parts? We buy surplus →

What is the Pepperl Fuchs OM-VB14N?

oscillating mirror for the VB14N barcode scanner series

Pepperl+Fuchs has archived the OM-VB14N: it is no longer part of the current range. PartnerPLC sources discontinued Pepperl+Fuchs parts on the surplus market for maintenance and repair of existing installations — request a quote for availability, condition, price and lead time.

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	232940
Viewing angle	10 ... 40 ° , adjustable
Lifecycle	Discontinued — archived by Pepperl+Fuchs

Nominal ratings

Oscillator frequency

0.5 ... 4 Hz , adjustable fO

Electrical specifications

Operating voltage	10 ... 30 V DC UB
Operating current	max. 40 mA @ 10 V DC IB
Power consumption	max. 1 W @ 30 V DC P0
Inrush current	1.2 A @ 10 V DC at max. duration = 100 ms

Output

Response time

max. 1 ms

Ambient conditions

Ambient temperature	0 ... 45 °C (32 ... 113 °F)
Storage temperature	-20 ... 70 °C (-4 ... 158 °F)
Relative humidity	90 % , non-condensing
Shock resistance	IEC 68-2-6 FC 0,5 G at 9 ... 150 Hz 2 hours on each axis
Vibration resistance	IEC 68-2-27 Test EA 30G; 11 ms; 3 impacts on each axis

Mechanical specifications

Degree of protection	IP65 (with correct installation on the barcode scanner)
Connection	Connector plug , 4-pin
Mass	approx. 160 g

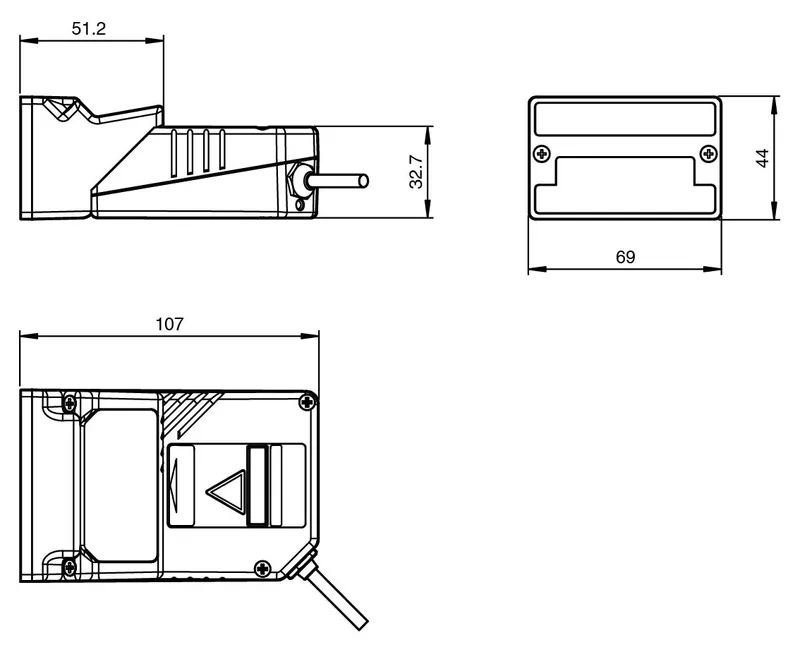

Dimensions: Height	44 mm
Dimensions: Width	68 mm

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals
