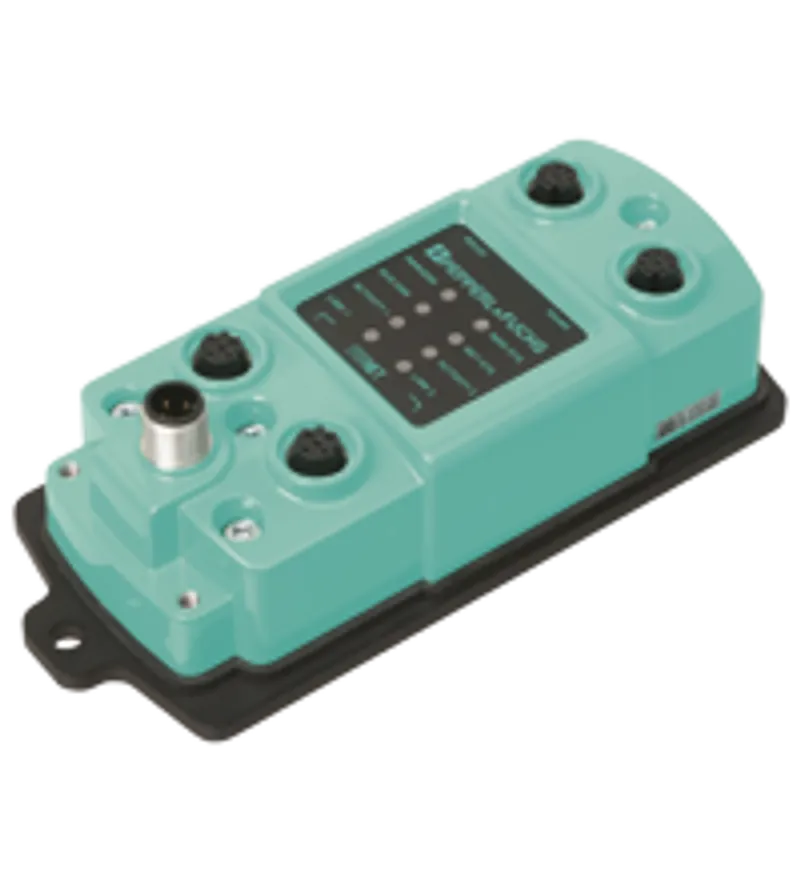

Pepperl Fuchs OHV-F230-B17
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories for Optical Identification |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can OHV-F230-B17 be shipped?
OHV-F230-B17 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up OHV-F230-B17 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for OHV-F230-B17 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for OHV-F230-B17, subject to availability and destination.
Gateway. PROFINET Gateway for OHV handheld. MTTFd: 110 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. LED green: LINK 1/LINK2: Port 1/2 connected. LED yellow: ACTIVITY 1/ACTIVITY 2: data at port 1/2. LED red: BUS ERR: Communication error. LED red/green: PWR/ERR: green: on; red: system error. Operating voltage: 10 ... 30 V DC PELV. Ripple: ≤ 10 % at 30 V DC. Current consumption: ≤ 1.1 A Inc. readers. Power consumption: 2.5 W Without readers. Interface type: RS-232, EIA/TIA-232E. Transfer rate: 115k, 8N1. Interface type: RS485 , No function. Interface type: 2 x PROFINET IO with int. switch. Protocol: Conformance Class BRealtime class RTMin. cycle time 1 ms. Transfer rate: 10/100 Mbps. Ambient temperature: -25 ... 60 °C (-13 ... 140 °F) , noncondensing. Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Degree of protection: IP65. Connection: RS232/RS485: 2 x M12 connector, 8-pin, A-coded Power supply: M12 connector Protective earth: M4 earthing screw Ethernet: M12 connection, 4-pin, D-coded. Material: . Housingpowder coated aluminum: . Housing: powder coated aluminum. Installation: screw fixing : 6 mm. Mass: approx. 400 g. Dimensions: . Height41 mmWidth62 mmLength137 mm: . Height: 41 mm. Width: 62 mm. Length: 137 mm
Specifications
Functional safety related parameters
| MTTFd | 110 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |

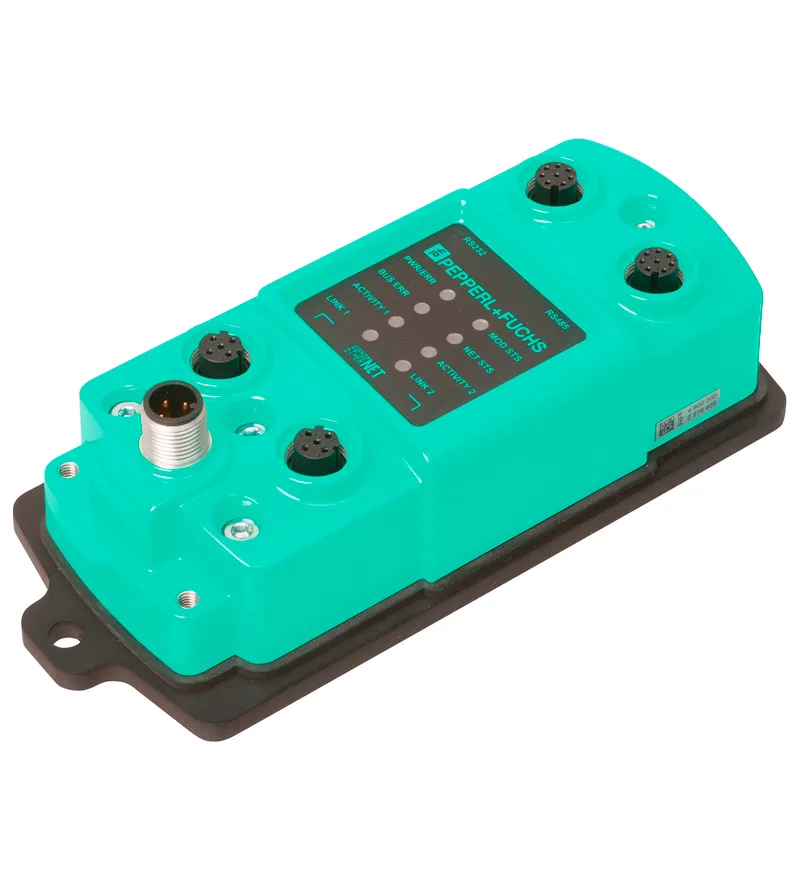

Indicators/operating means
| LED green | LINK 1/LINK2: Port 1/2 connected |
| LED yellow | ACTIVITY 1/ACTIVITY 2: data at port 1/2 |
| LED red | BUS ERR: Communication error |
| LED red/green | PWR/ERR: green: on; red: system error |
Electrical specifications
| Operating voltage | 10 ... 30 V DC PELV UB |
| Ripple | ≤ 10 % at 30 V DC |
| Current consumption | ≤ 1.1 A Inc. readers |
| Power consumption | 2.5 W Without readers P0 |
Interface 1
| Interface type | RS-232, EIA/TIA-232E |
| Transfer rate | 115k, 8N1 |
Interface 2
| Interface type | RS485 , No function |
Interface 3
| Interface type | 2 x PROFINET IO with int. switch |
| Protocol | Conformance Class BRealtime class RTMin. cycle time 1 ms |
| Transfer rate | 10/100 Mbps |
Ambient conditions
| Ambient temperature | -25 ... 60 °C (-13 ... 140 °F) , noncondensing |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
Mechanical specifications
| Degree of protection | IP65 |

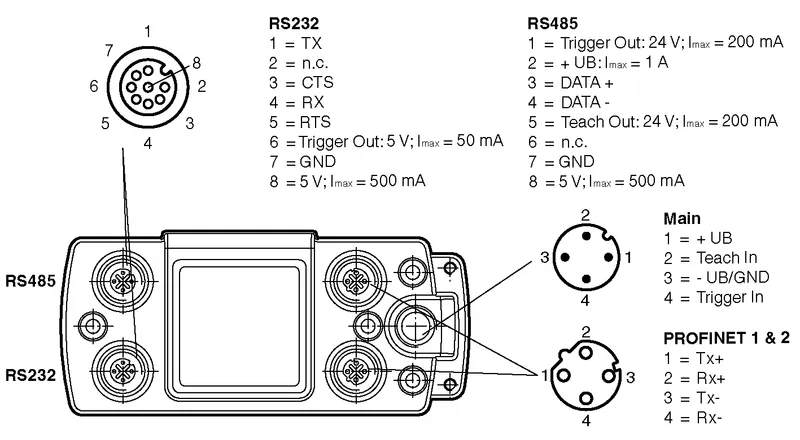

| Connection | RS232/RS485: 2 x M12 connector, 8-pin, A-coded Power supply: M12 connector Protective earth: M4 earthing screw Ethernet: M12 connection, 4-pin, D-coded |
| Material | |
| Housingpowder coated aluminum | Housing |
| Housing | powder coated aluminum |
| Installation | screw fixing : 6 mm |
| Mass | approx. 400 g |

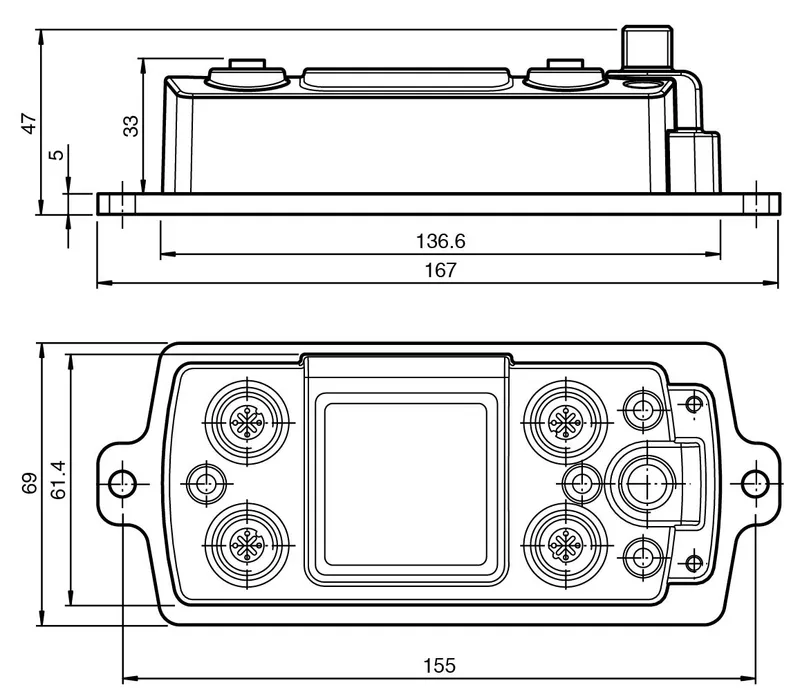

| Dimensions | |
| Height41 mmWidth62 mmLength137 mm | Height |
| Height | 41 mm |
| Width | 62 mm |
| Length | 137 mm |
