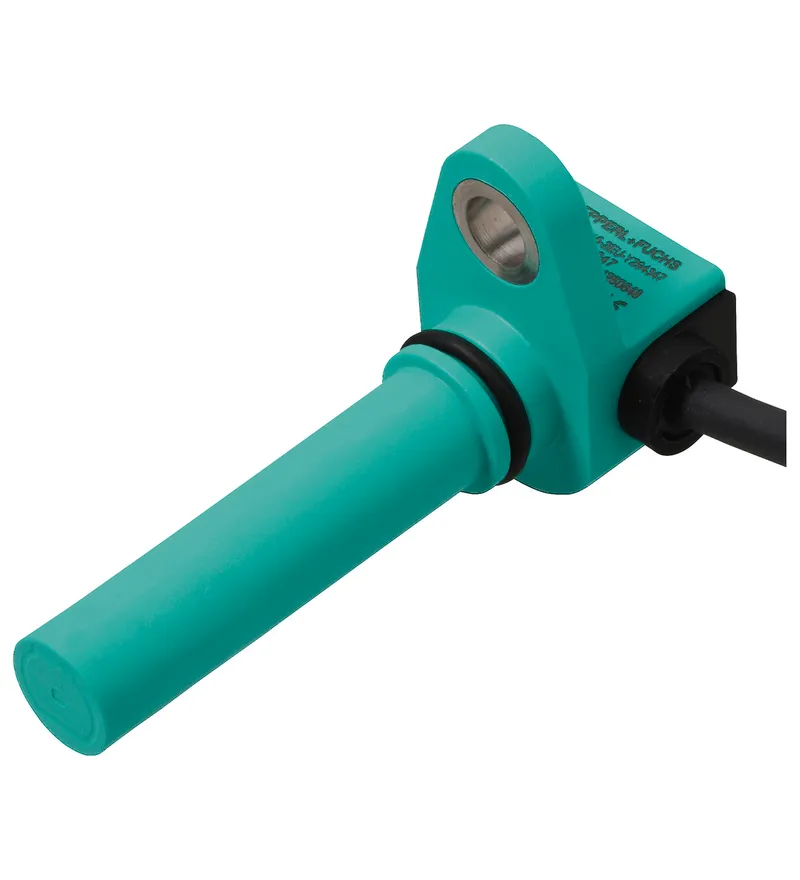

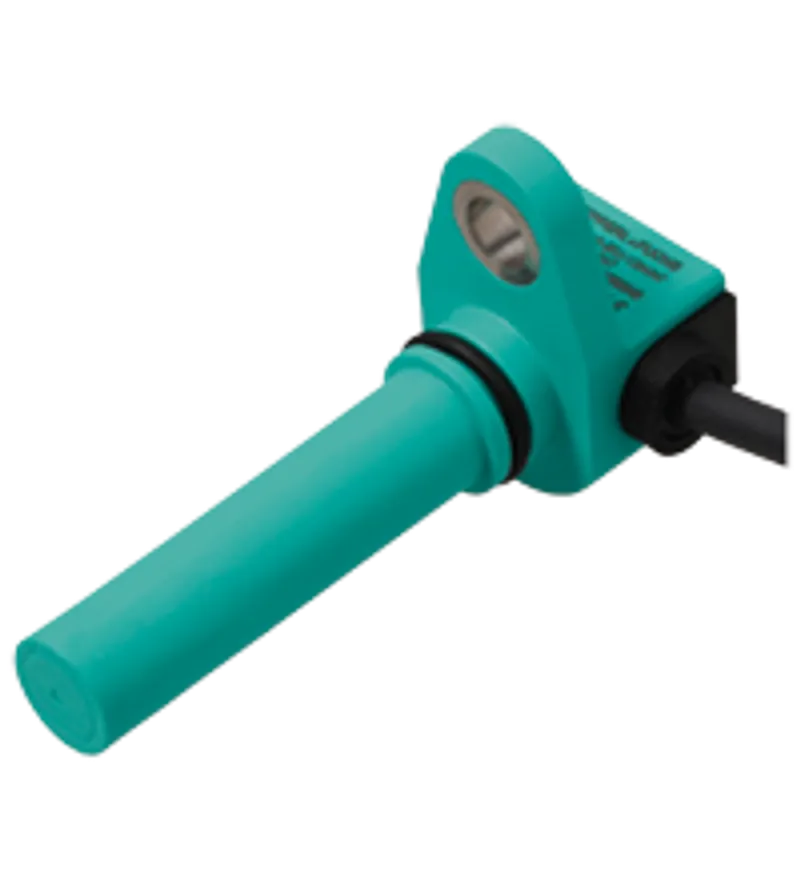

What is the Pepperl Fuchs MHS2-12M55-2EU-0,3M?
Rotational speed-detecting hall effect sensor
Responds to customer-specific gear
Switching frequency up to 10 kHz
Output type: Digital voltage output, Connection type: cable, Housing material: PBT + GF, Degree of protection: IP67
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 294349 |
| Output type | Digital voltage output |
| Assured operating distance | 0.3 ... 2 mm sa |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Operating voltage | 4.75 ... 5.25 V UB |
| Switching frequency | 10 kHz f |
| Operating current | 0 ... 25 mA IL |
Safety-relevant product characteristics
| MTTFd | 882.2 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |

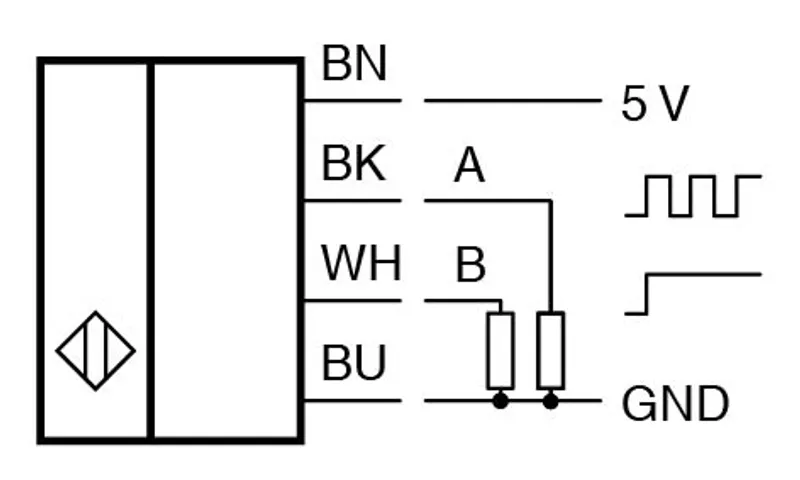

Output 1
| Designation | A |
| Output type | Digital voltage output output of the velocity |
| Output value | The following output values are only achieved with a load resistance of ≥ 500 Ω high level 3.8 ... 4.75 V low level 0.4 ... 2.6 V |
Output 2
| Designation | B |
| Output type | Digital voltage output output of the direction of rotation |
| Output value | The following output values are only achieved with a load resistance of ≥ 500 Ω direction of rotation cw 3.8 ... 4.75 V direction of rotation ccw 0.4 ... 2.6 V |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2 |
Approvals and certificates
| UL approval | cURus Recognized Load Type: General Purpose Circuitry: Class 2 Power Source Supply/Switching Voltage: 5 V DC Further UL information see section "Additional Information" |
Ambient conditions
| Ambient temperature | -40 ... 125 °C (-40 ... 257 °F) |
Mechanical specifications
| Connection type | cable |
| Housing material | PBT + GF |
| Sensing face | PBT + GF |
| Degree of protection | IP67 |
| Cable: Cable diameter | 4.8 mm ± 0.15 mm |
| Cable: Bending radius | > 10 x cable diameter |
| Cable: Material | PUR |
| Cable: Color | black |
| Cable: Number of cores | 4 |
| Cable: Core cross section | 0.5 mm2 |
| Cable: Length | 300 mm L |
| Tightening torque, fastening screws | ≤ 10 Nm |
| Tightening torque, housing screws | 10 Nm |
General information
| Supplementary information | Specifications relating to disk 61_01-105_04_72-03 ST12 ferromagnetic steel |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals

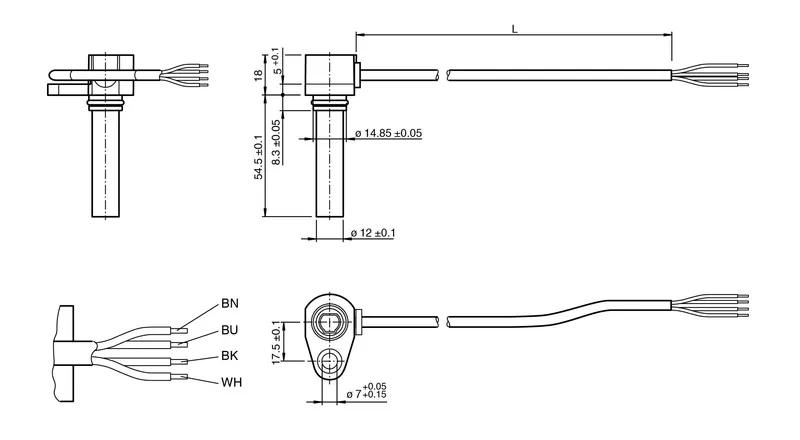

CAD & dimension drawings
