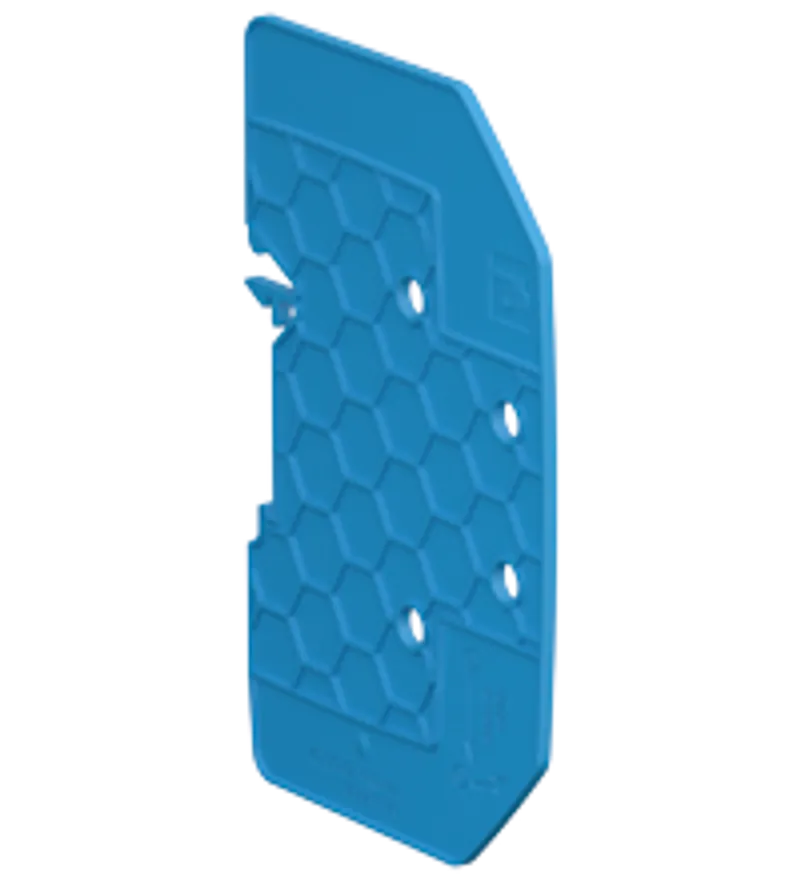

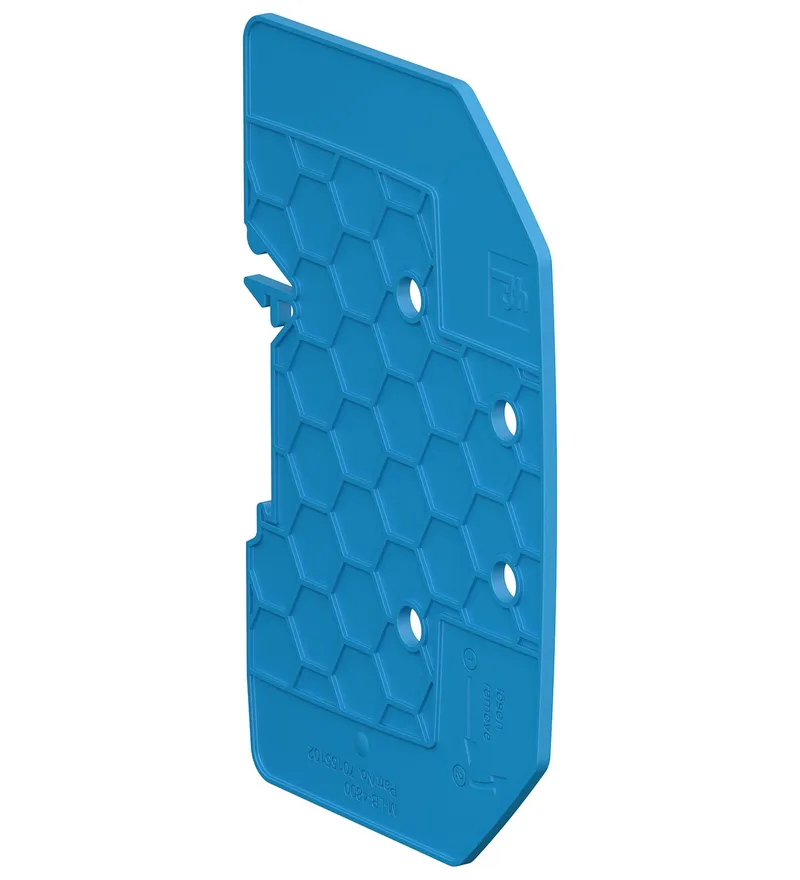

Pepperl Fuchs M-LB-4800

Separation Wall

MPN: M-LB-4800
Category: Devices for Signal Line Protection

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Pepperl Fuchs M-LB-4800?

For surge protection system M-LB-4000

Isolation acc. to IEC 60079-11

Color blue

DIN rail mountable

For surge protection system M-LB-4000, Isolation acc. to IEC 60079-11, Color blue, DIN rail mountable

Specifications

Ambient conditions

Order code (Pepperl+Fuchs part number)	70155102
Ambient temperature	-40 ... 80 °C (-40 ... 176 °F)
Storage temperature	-40 ... 80 °C (-40 ... 176 °F)
Relative humidity	max. 95 % , without condensation
Lifecycle	Active (current Pepperl+Fuchs product)

Mechanical specifications

Material: Housing	Polyamide PA 6.6
Mass	approx. 28 g
Dimensions	2.5 x 122 x 70 mm (0.1 x 4.8 x 2.8 inch) (W x H x D)
Height	122 mm
Width	2.5 mm
Depth	70 mm
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001

General information

Supplementary information

Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
