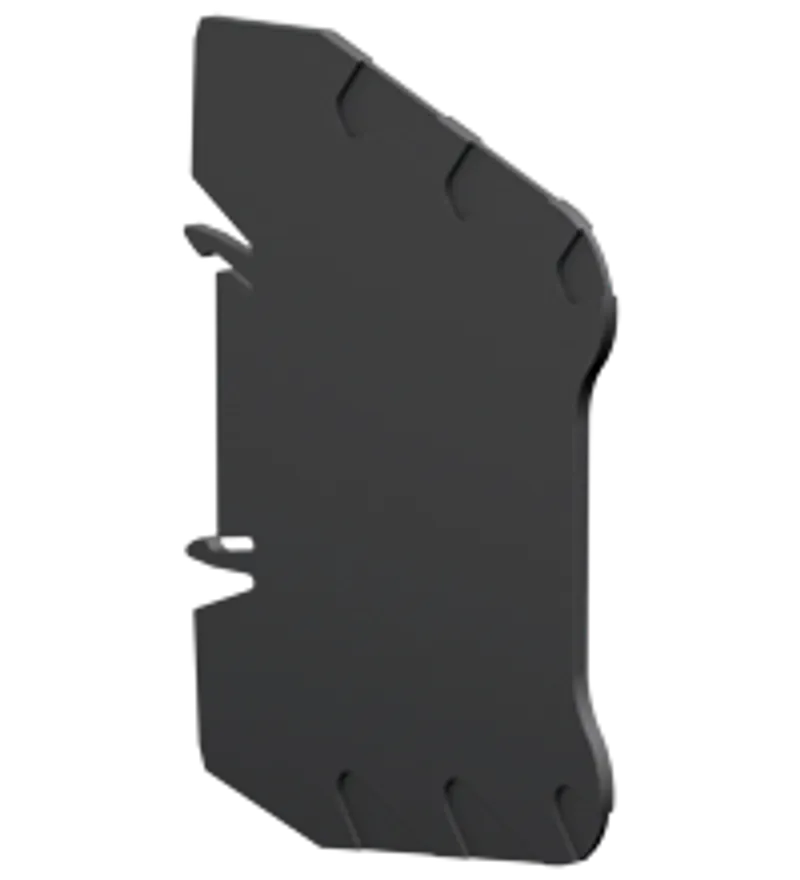

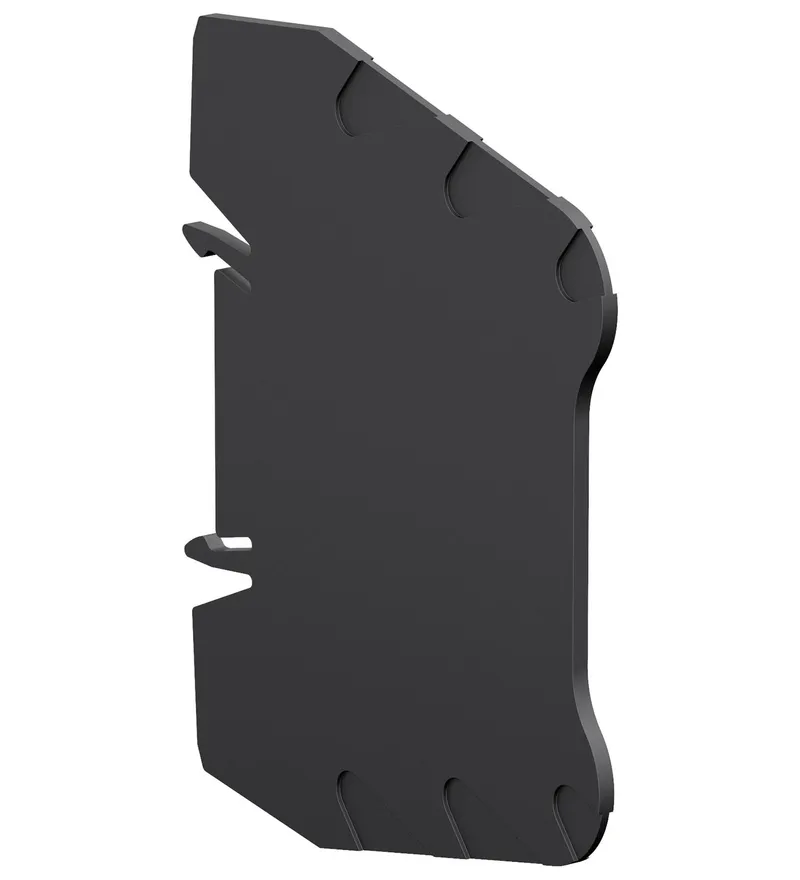

Pepperl Fuchs M-LB-2800
Insulation Spacer
- MPN
- M-LB-2800
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs M-LB-2800?
For surge protection system M-LB-2000
Color black
DIN rail mountable
For surge protection system M-LB-2000, Color black, DIN rail mountable
Specifications
Ambient conditions
| Order code (Pepperl+Fuchs part number) | 70101641 |
| Ambient temperature | -40 ... 80 °C (-40 ... 176 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | max. 95 % , without condensation |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Mechanical specifications
| Material | Polyamide (PA) |
| Mass | approx. 40 g |

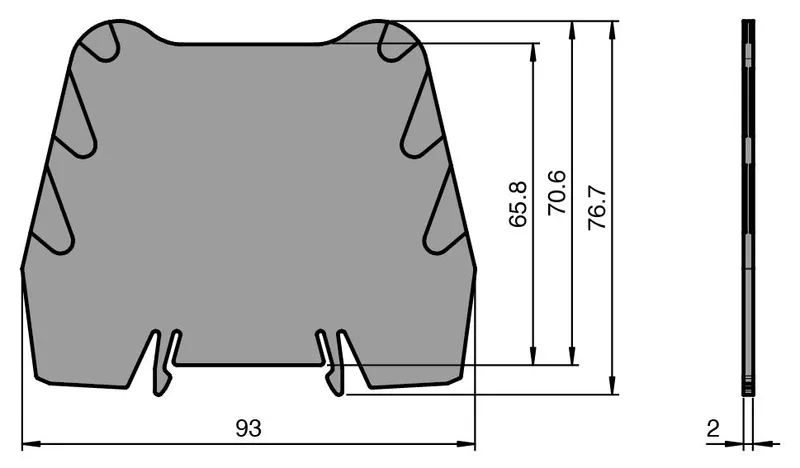

| Dimensions | 2 x 93 x 77 mm (0.08 x 3.7 x 3 inch) (W x H x D) |
| Height | 93 mm |
| Width | 2 mm |
| Depth | 77 mm |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
M-LB-2800: frequently asked questions
When can M-LB-2800 be shipped?
M-LB-2800 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up M-LB-2800 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for M-LB-2800 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for M-LB-2800, subject to availability and destination.
