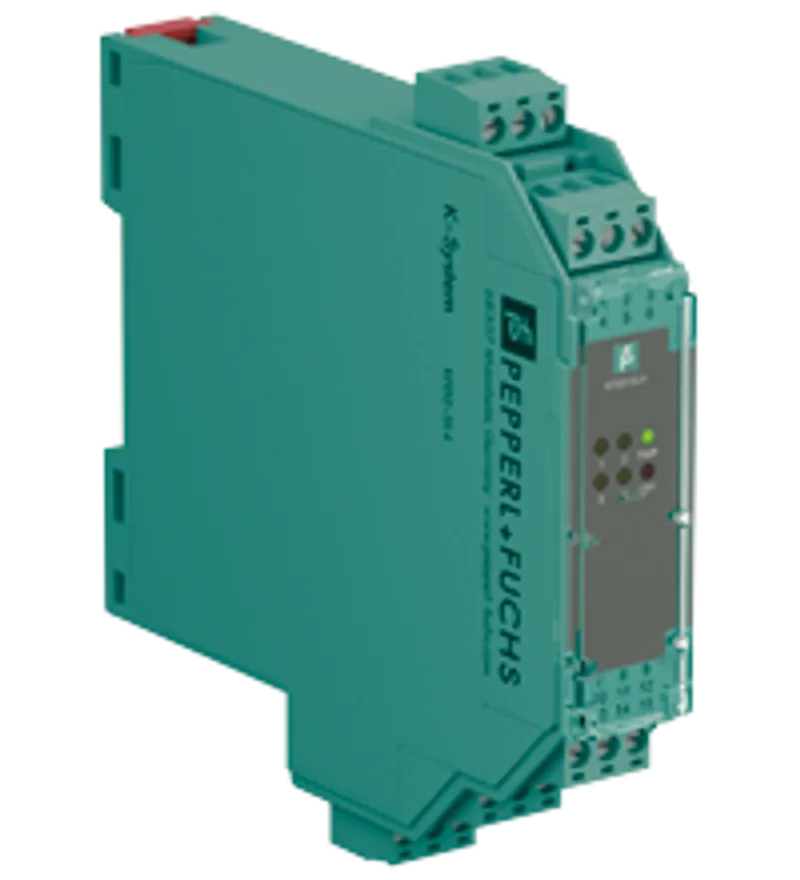

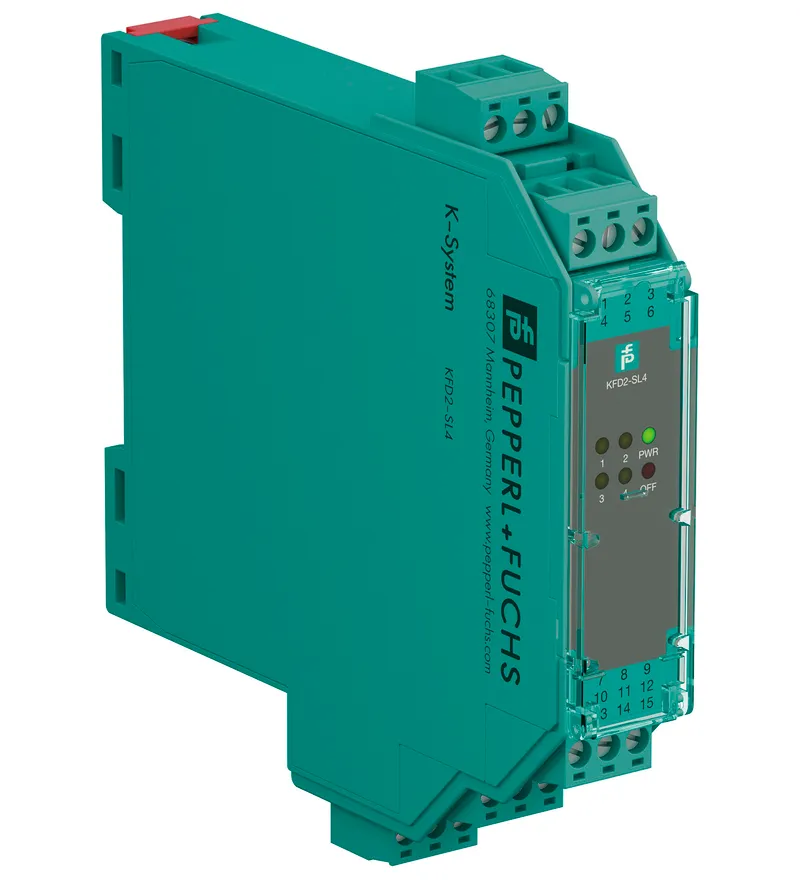

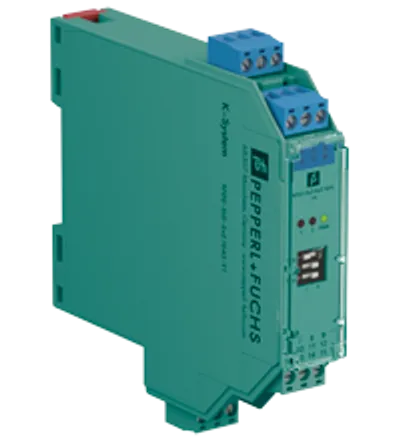

Pepperl Fuchs KFD2-SL-4
Solenoid Driver, Power Amplifier
- MPN
- KFD2-SL-4
- Category
- K-System (DIN Rail Mounting)
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Pepperl Fuchs KFD2-SL-4?
4-channel signal conditioner
24 V DC supply (Power Rail)
Output 600 mA per channel
Logic inputs
Common safety-oriented disable input
Line fault detection (LFD)
Up to SIL 2 acc. to IEC/EN 61508
4-channel signal conditioner, 24 V DC supply (Power Rail), Output 600 mA per channel, Logic inputs, Common safety-oriented disable input, Line fault detection (LFD), Up to SIL 2 acc. to IEC/EN 61508, Housing width: 20 mm, Number of channels: 4-channel, Safety Integrity Level (SIL): SIL 2, Rated voltage: 20 ... 30 V DC, Type: logic input, Field device: 4 x Valve, Field device [2]: 4 x audible alarm, Field device [3]: 4 x visual alarm, Line fault detection, Current: ≤ 600 mA, Voltage: typ. 23.8 V
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 112730 |
| Signal type | Digital Output |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| Safety Integrity Level (SIL) | SIL 2 |
Supply
| Connection | Power Rail or terminals 14+, 15- |
| Rated voltage | 20 ... 30 V DC Ur |
| Undervoltage switching-off | ≤ 18 V DC |
| Quiescent current indication | < 50 mA at 24 V DC |
| Power dissipation | < 2 W supply voltage 30 V, all outputs loaded with 600 mA |
Input
| Connection side | control side |
| Connection | Terminals 7+, 8+, 9+, 10+, 15- |
| Input current | approx. 2 mA at 24 V DC |
| Signal level | 0-signal: 0 ... 5 V DC 1-signal: 16 ... 30 V |
Common disable
| Connection | terminals 11, 12 |
| Input current | ≤ 50 mA at 24 V, depolarized currentless state: downscale of the outputs |
| Switch on | min. 15 V |
| Switch off | max. 5 V |
Output
| Connection side | field side |
| Current | ≤ 600 mA Ie |
| Voltage | typ. 23.8 V Ue |
| Open loop voltage | 24 V DC Us |
| Connection | terminals 1+, 2+, 3+, 4+, 5-, 6- |
| Switching frequency | 1 kHz f |
| Output current | 600 mA per channel , sustained short-circuit proof and overload-proof |
| Off-state current | < 1 mA at 24 V DC Ir |
| Line fault detection | lead breakage: ≤ 4 mA |
Galvanic isolation
| Common disable/input and outputs | basic insulation according to IEC/EN 61010-1, rated insulation voltage 50 Veff |
Indicators/settings
| Display elements | LEDs |
| Labeling | space for labeling at the front |
Directive conformity
| Electromagnetic compatibility: Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) |
Conformity
| Electromagnetic compatibility | NE 21:2011 |
| Degree of protection | IEC 60529:2001 |
Ambient conditions
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
Mechanical specifications
| Degree of protection | IP20 |
| Connection | screw terminals |
| Mass | approx. 100 g |
| Dimensions | 20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2 |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 |
General information
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
