Pepperl Fuchs

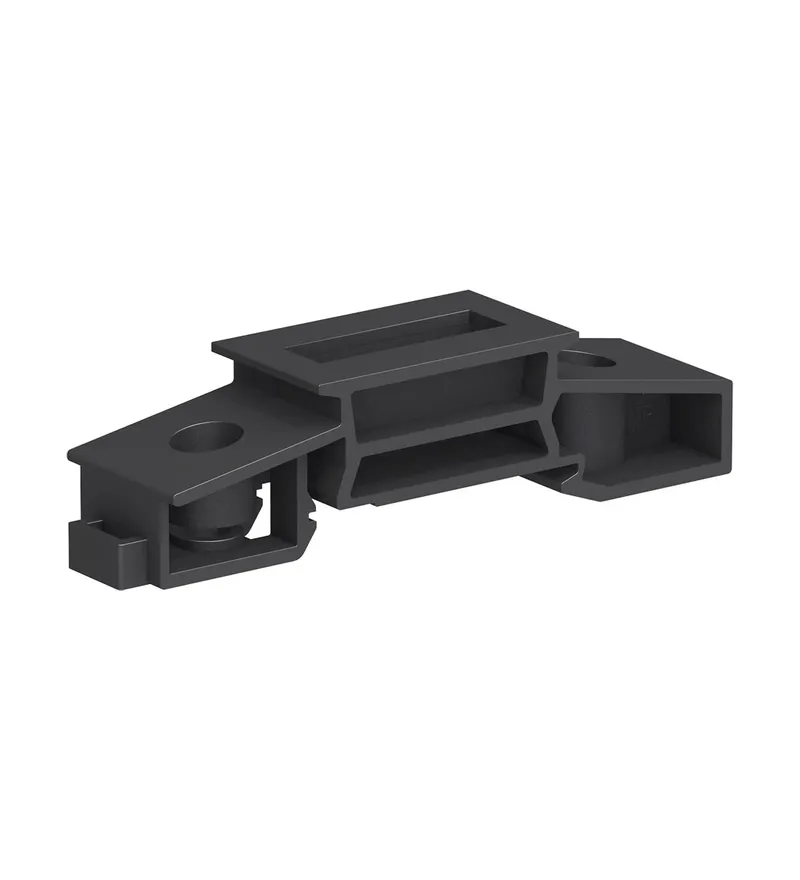

Pepperl Fuchs K-MS

Mounting Socket

MPN: K-MS
Category: K-System (DIN Rail Mounting, Highly Functional)

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Pepperl Fuchs K-MS?

1-channel

KF module DIN rail isolation block

Snaps on to 35 mm DIN rail acc. to EN 60715

Easy panel mounting

1-channel, KF module DIN rail isolation block, Snaps on to 35 mm DIN rail acc. to EN 60715, Easy panel mounting

Specifications

Mechanical specifications

Order code (Pepperl+Fuchs part number)	034302
Material	Polyamide PA 66
Mass	approx. 30 g

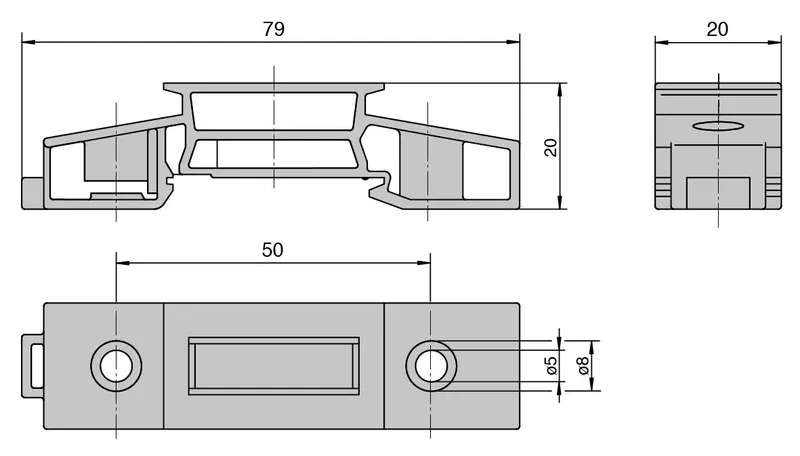

Dimensions	20 x 20 x 79 mm (0.8 x 0.8 x 3.1 inch)
Height	20 mm
Width	20 mm
Length	79 mm
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
Lifecycle	Active (current Pepperl+Fuchs product)

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet K-MSPDF

K-MS: frequently asked questions

When can K-MS be shipped?

K-MS is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up K-MS in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for K-MS and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for K-MS, subject to availability and destination.
