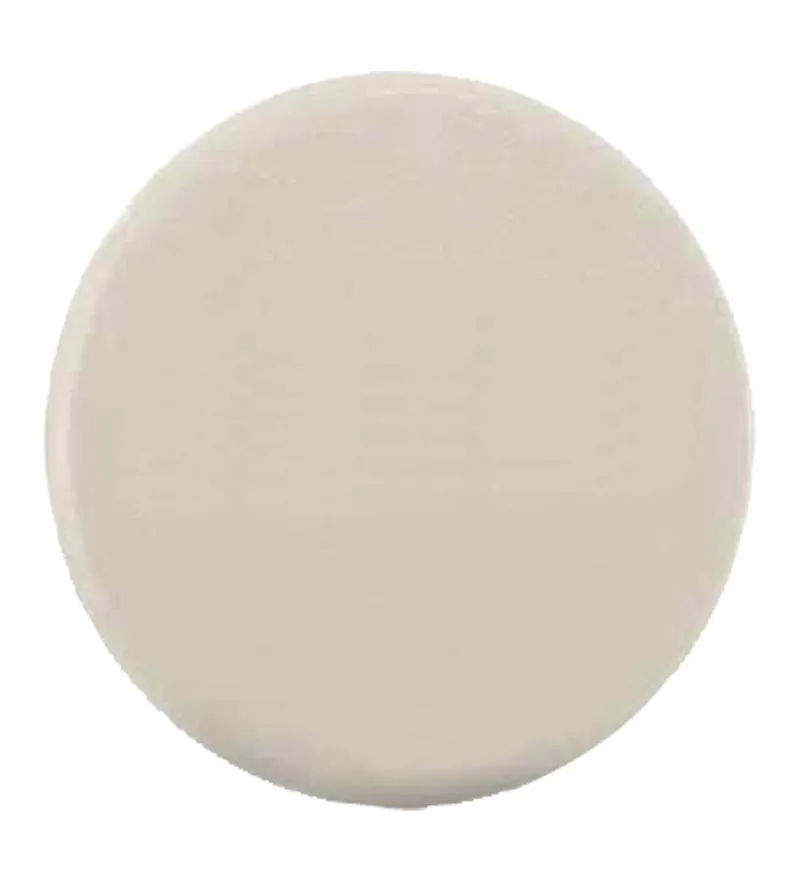

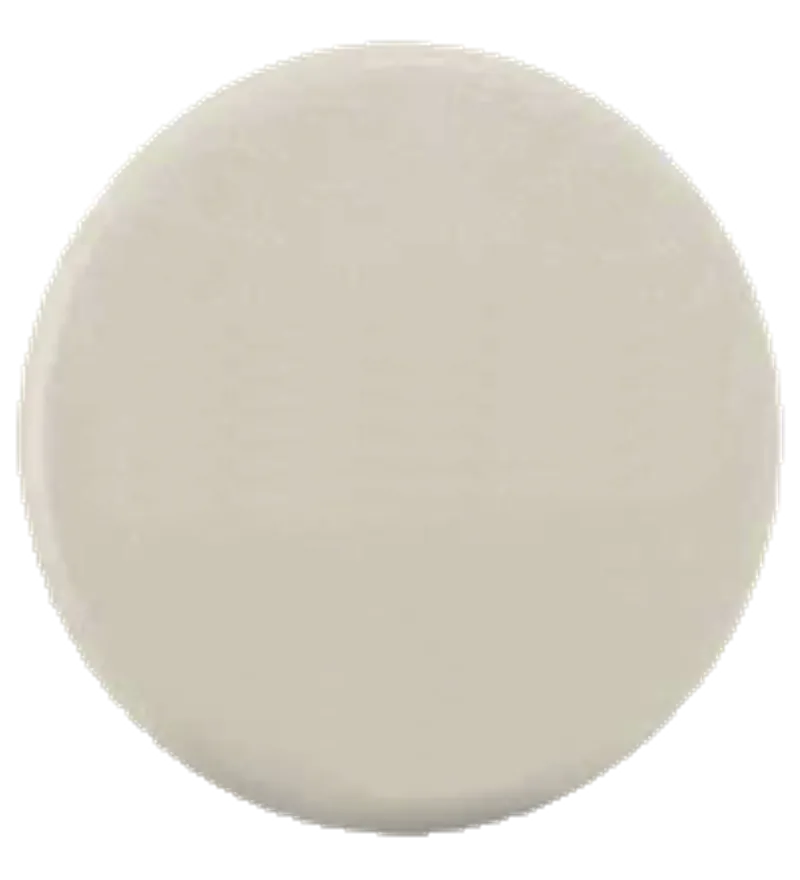

Pepperl Fuchs IQC51-16 50pcs

RFID Transponder

MPN
IQC51-16 50pcs
Category
RFID Tags
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Pepperl Fuchs parts? We buy surplus →

What is the Pepperl Fuchs IQC51-16 50pcs?

Operating frequency 13.56 MHz

2400 bits memory available

64 bit Fixcode

Readable and writable from both sides

Packaging unit: 50 pieces

Data carrier

Specifications

General specifications

Order code (Pepperl+Fuchs part number)70207349
Operating frequency13.56 MHz
Transfer rate26 kBit/s
Colorwhite
LifecycleActive (current Pepperl+Fuchs product)

Memory

Chip TypeICODE 3 (NXP)
EEPROM2400 Bit
UID64 Bit
Memory organization4 bytes/block
Read cyclesunlimited
Write cycles100000
Data retention period50 years

Directive conformity

Radio equipment: Directive 2014/53/EUEN 300330
RoHS: Directive 2011/65/EU (RoHS)IEC/EN 63000

Standard conformity

Degree of protectionEN 60529
RFIDISO/IEC 15693-1 ISO/IEC 15693-2 ISO/IEC 15693-3 ISO/IEC 18000-3

Ambient conditions

Ambient temperature-40 ... 85 °C (-40 ... 185 °F)
Storage temperature-40 ... 90 °C (-40 ... 194 °F) 120 °C for 100 h220 °C for 30 s

Mechanical specifications

Degree of protectionIP68
Material: HousingPPS
Installation: In airyes
Mass1 g

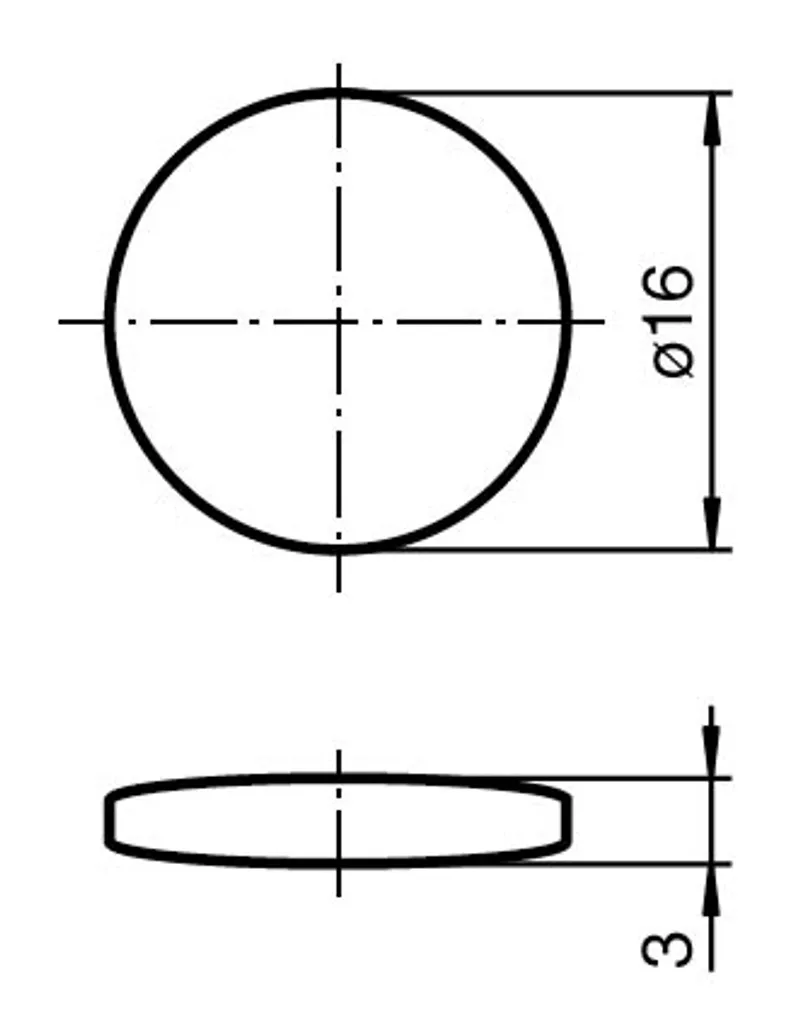

Dimensions: Height3 mm
Dimensions: Height tolerance± 0.2 mm
Dimensions: Diameter16 mm
Dimensions: Diameter tolerance± 0.2 mm
Construction typeCylindrical
NotePackaging unit, 50-piece

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

IQC51-16 50pcs: frequently asked questions

When can IQC51-16 50pcs be shipped?

IQC51-16 50pcs is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up IQC51-16 50pcs in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for IQC51-16 50pcs and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for IQC51-16 50pcs, subject to availability and destination.

More Pepperl Fuchs parts

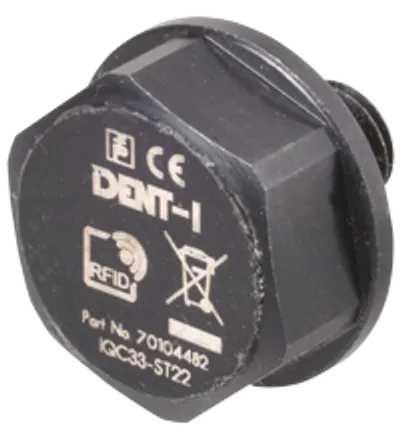

Pepperl Fuchs IQC33-ST22 – RFID Transponder
Pepperl Fuchs
IQC33-ST22

RFID Transponder

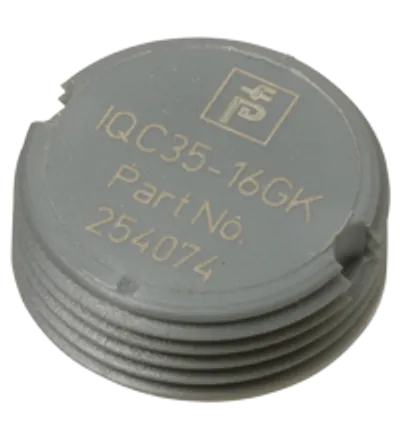

Pepperl Fuchs IQC35-16GK – RFID Transponder
Pepperl Fuchs
IQC35-16GK

RFID Transponder

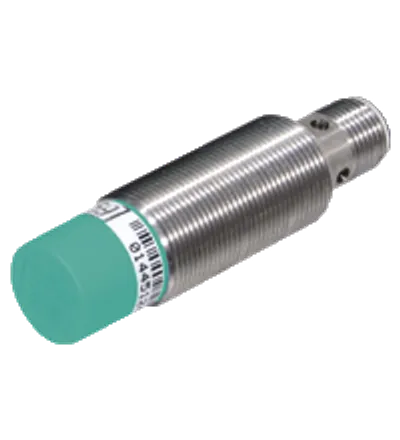

Pepperl Fuchs IQH1-18GM-V1 – RFID read/write device
Pepperl Fuchs
IQH1-18GM-V1

RFID read/write device

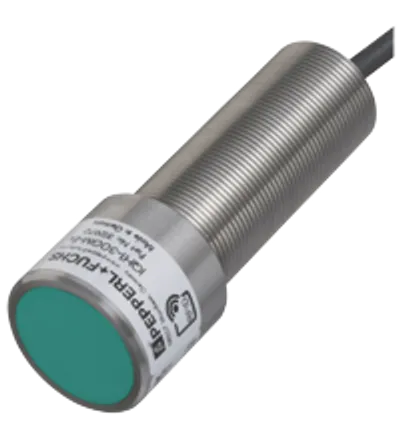

Pepperl Fuchs IQH1-30GM-Ex – RFID read/write device hazardous area
Pepperl Fuchs
IQH1-30GM-Ex

RFID read/write device hazardous area

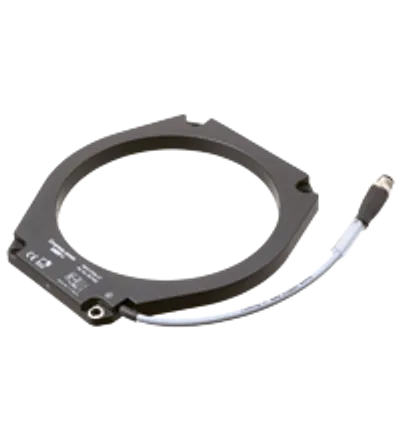

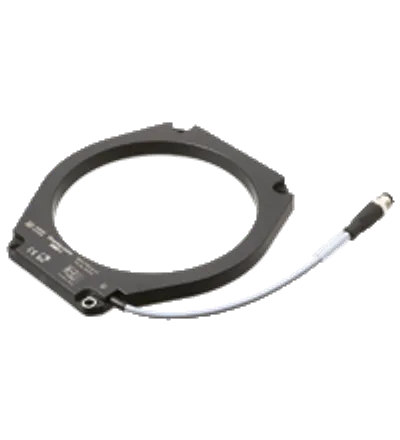

Pepperl Fuchs IQH1-F198-V1 – RFID read/write device
