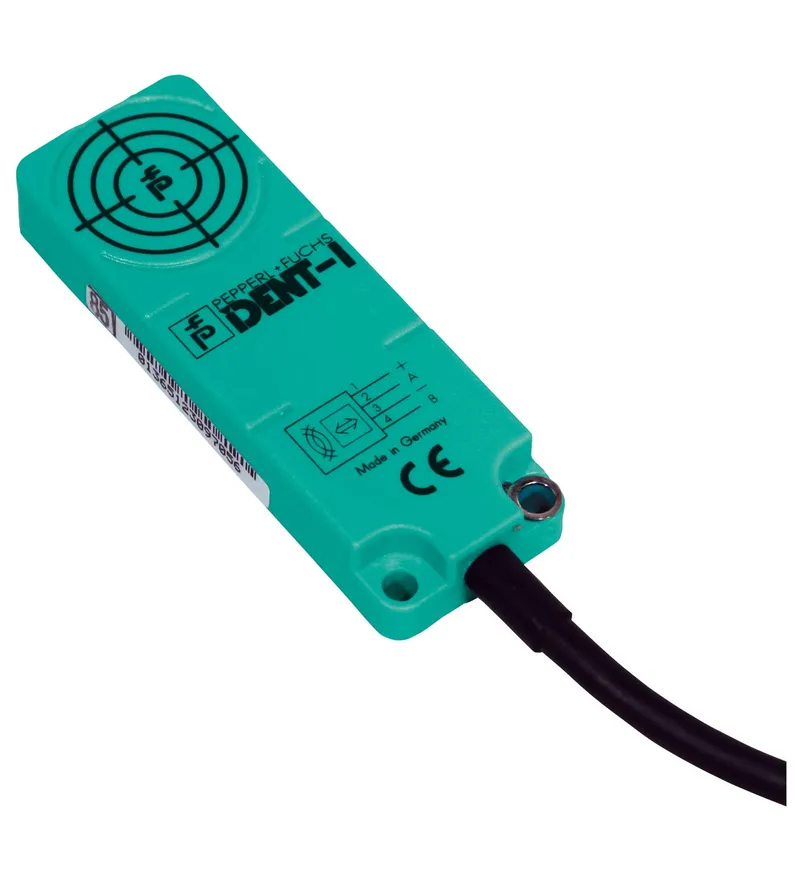

Pepperl Fuchs IPT-F61-R4-V1

RFID read/write device

MPN
IPT-F61-R4-V1
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Pepperl Fuchs parts? We buy surplus →

What is the Pepperl Fuchs IPT-F61-R4-V1?

Particularly flat construction

Connection cable with V1 plug (M12 x 1)

Degree of protection IP67

Can be mounted on metal

LF RFID read/write device

Specifications

General specifications

Order code (Pepperl+Fuchs part number)70192676
Operating frequency125 kHz
Transfer rate2 kBit/s
Sensing range: Read distance2 ... 45 mm
Sensing range: Write distance2 ... 35 mm
Sensing range: Widthmax. 65 mm
MTBF350 a (Operation at +40 °C)
LifecycleActive (current Pepperl+Fuchs product)

Electrical specifications

Rated operating voltage18 ... 30 V DC , limited power source (EN 60950) Ue
Power consumption≤ 1.2 W P0

Interface

PhysicalRS-485 point-to-point connection
ProtocolASCII
Transfer rate1200, 2400, 4800, 9600, 19200, 38400 (default) Bit/s
Cable length≤ 3 m

Directive conformity

Radio equipment: Directive 2014/53/EUEN 301489-1 EN 301489-3 EN 300330 EN 62368-1 EN 50364
RoHS: Directive 2011/65/EU (RoHS)IEC/EN 63000

Standard conformity

Degree of protectionEN 60529
RFIDISO/IEC 18000-2

Ambient conditions

Ambient temperature-25 ... 70 °C (-13 ... 158 °F)
Storage temperature-40 ... 85 °C (-40 ... 185 °F)

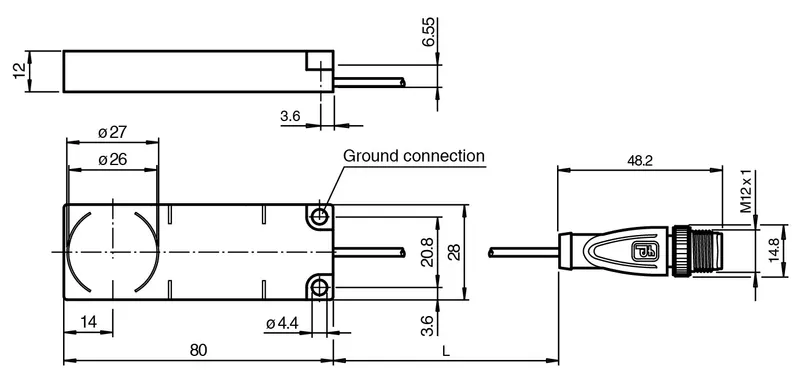

Mechanical specifications

Degree of protectionIP67
Connectionconnector M12 x 1
Material: HousingABS
Material: Encapsulation compoundWEVO 403FL/300
Installation: Distance between two heads≥ 290 mm
Massapprox. 50 g
Dimensions: Height12 mm
Dimensions: Width28 mm
Dimensions: Length80 mm
Cable length20 cm

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

Certificates (2)

IPT-F61-R4-V1: frequently asked questions

When can IPT-F61-R4-V1 be shipped?

IPT-F61-R4-V1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up IPT-F61-R4-V1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for IPT-F61-R4-V1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for IPT-F61-R4-V1, subject to availability and destination.
