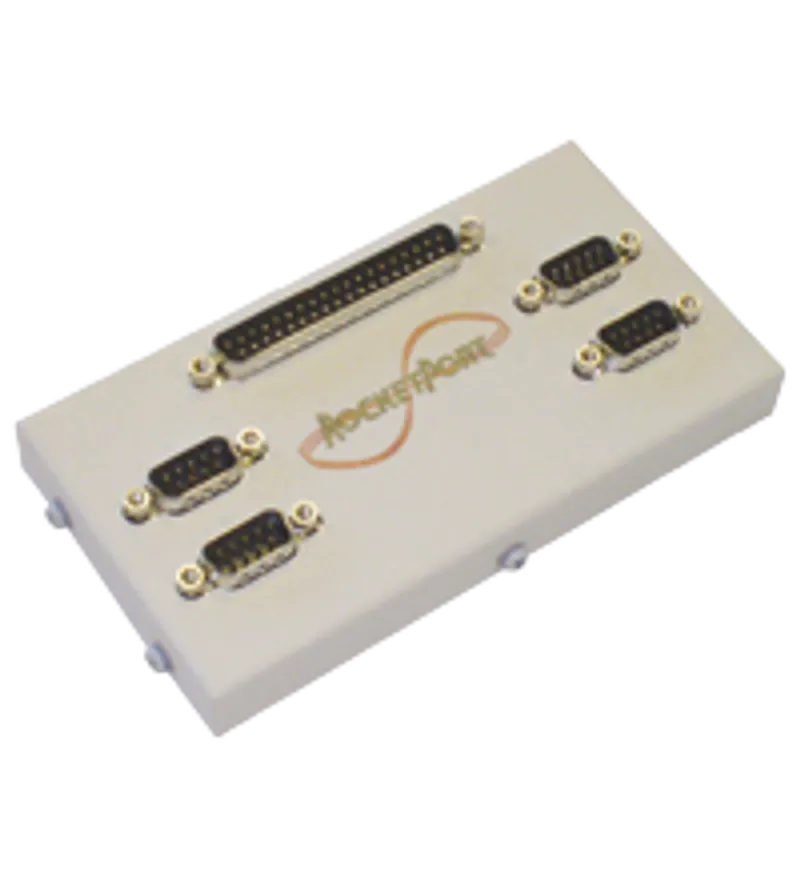

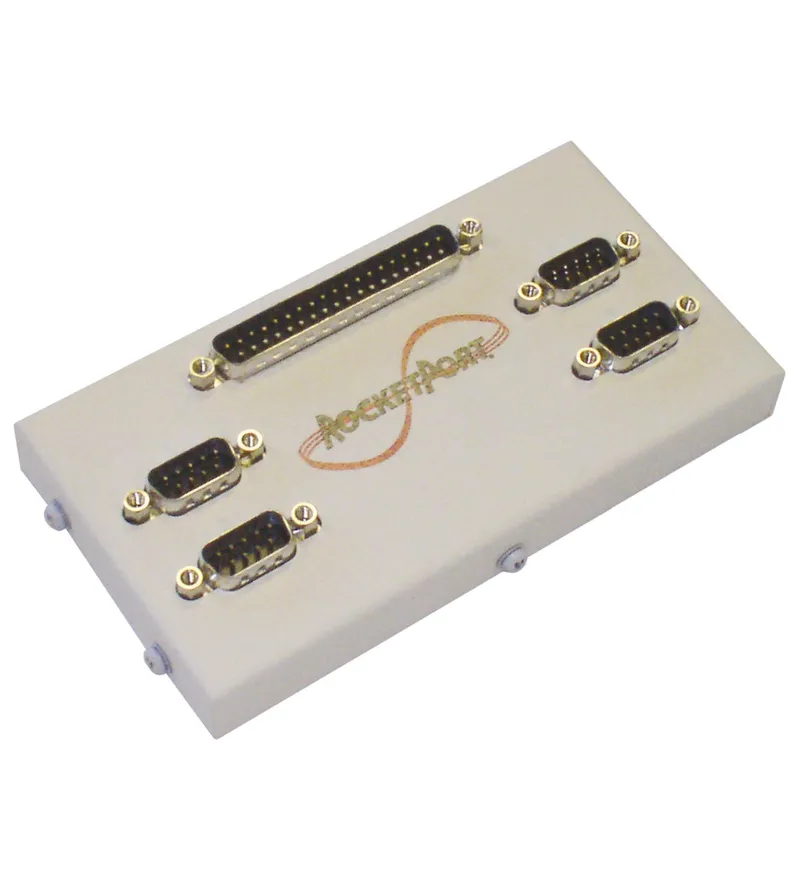

Pepperl Fuchs ICRPB-4DB9M-PM
Breakout Box
- MPN
- ICRPB-4DB9M-PM
- Category
- Serial Gateways
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs ICRPB-4DB9M-PM?
RS-232/422/485 software selectable interfaces
Communication speeds up to 460 Kbps
15 KV surge protection

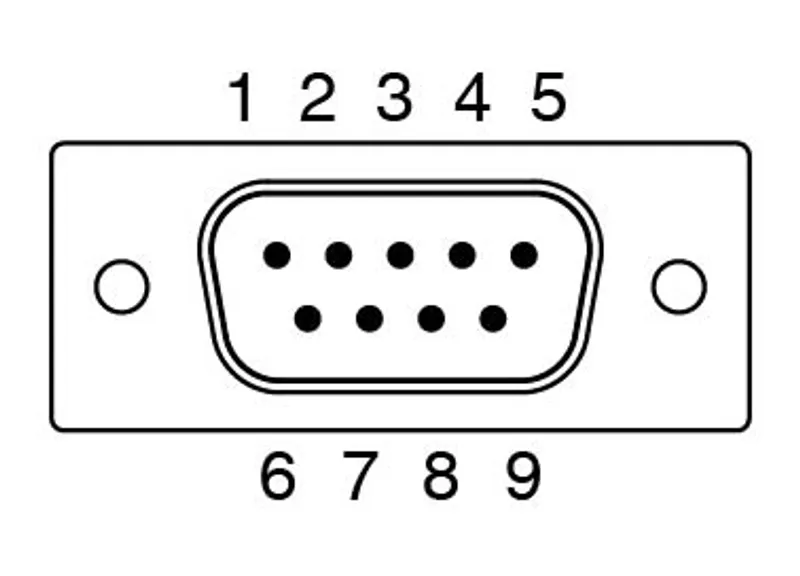

DB9 male connectors
4 DB-9M connectors
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70116472 |
| UL File Number | E185802 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| MTBF | 119.1 a |
Electrical specifications
| Surge protection | 15 KV / 200 A for 1 ns |
Interface
| Interface type | Software selectable interfaces: RS-232 , RS-422 , RS-485 |
| Physical | 4 x DB9 |
| Supported baud rates | 300 to 460.8 Kbps |
Directive conformity
| Electromagnetic compatibility: Directive 2014/30/EU | EN 61000-4-2:2009 EN 61000-4-3:2006+A1:2008+A2:2010 EN 61000-4-4:2012 EN 61000-4-5:2014+A1:2017 EN 61000-4-6:2014 EN 61000-4-11:2004+A1:2017 |
| RoHS | EN IEC 63000:2018 |
Standard conformity
| Electrical safety | CSA C22.2 No. 60950 / UL60950 |
| Emitted interference | EN 55032:2015 FCC CFR 47, part 15, subpart B: 2017 ICES-003 AS/NZ5 CISPR 32, FCC Part 15 Subpart B Class A |
| Noise immunity | EN 55035:2017-07 |
Ambient conditions
| Ambient temperature | 0 ... 60 °C (32 ... 140 °F) |
| Storage temperature | -20 ... 85 °C (-4 ... 185 °F) |
| Relative humidity | max. 95 % non-condensing |
| Altitude | 0 ... 3048 m |

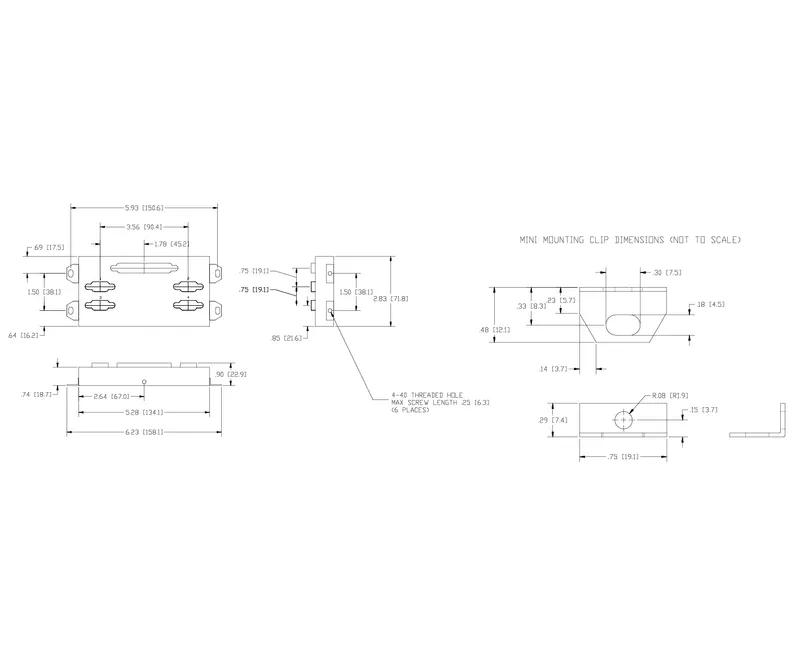

Mechanical specifications
| Mass | 275 g |
| Dimensions: Height | 22.9 mm |
| Dimensions: Width | 76.2 mm |
| Dimensions: Length | 139.7 mm |
| Construction type | Metal housing |
| Mounting | panel mount |
