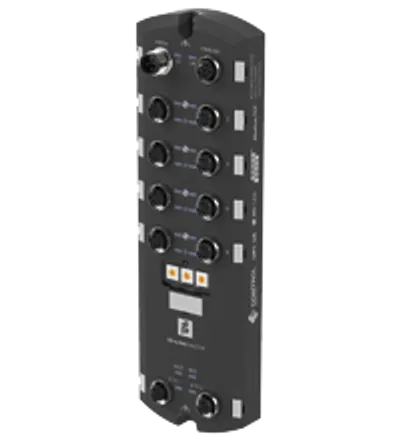

Pepperl Fuchs ICE3-8IOL-G65L-V1D

IO-Link master

MPN: ICE3-8IOL-G65L-V1D
Category: Serial Gateways

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Pepperl Fuchs ICE3-8IOL-G65L-V1D?

PROFINET IO, Modbus/TCP and OPC UA Support

Web-based configuration of module and IO-Link devices

Integrated IODD storage for more than 100 IODDs

Downloadable module configuration

M12 L-coded power connector

PROFINET IO IO-Link master with 8 inputs/outputs

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	70104876
UL File Number	E360395
Lifecycle	Active (current Pepperl+Fuchs product)

Indicators/operating means

LED indication	see manual
Rotary switch	Setting the IP address

Electrical specifications

Rated operating voltage	20 ... 30 V DC Ue
Nominal voltage	24 V DC UN
Current consumption	typ. 120 mA
Current loading capacity	Max. 2 x 16 A per module (Loop-through current via L-coded power supply) Total current: max. 6.7 A per module
Galvanic isolation	between US and UA

Interface 1

Interface type	Industrial Ethernet
Physical	M12, D-coded
Protocol	PROFINET IO with media redundancy protocol (MRP) + Modbus TCP + OPC UA + MQTT (including Sparkplug B support) Modbus max PDI: 33 times / sec OPC UA max PDI update rate: 20 times / sec MQTT max PDI update rate: 10 times / sec
Transfer rate	10/100 Mbps

Inputs/Outputs

Number/Type	8 x IO-Link Class A (X1 - X8) Configurable as: Max. 8 IO-Link and 8 digital inputs Max. 16 digital inputs Max. 8 digital inputs and 8 digital outputs short-circuit protected
Sensor supply	Port 1: max. 1.6 A Via L+ (pin 1) Port 3: max. 1 A via L+ (pin 1) Ports 2 and 4 – 8: max. 500 mA per port via L+ (pin 1)
Output current	max. 200 mA Per port via C/Q (pin 4) Ie

Directive conformity

Electromagnetic compatibility: Directive 2014/30/EU

EN 61000-6-2 , EN 61000-6-4

Standard conformity

Degree of protection	EN 60529
Fieldbus standard	Type 1 according to IEC 61131-2, EN 61131-9
Electrical safety	CSA C22.2 No. 61010-1-12 UL 61010-1, IEC 61010-2-201
Emitted interference	EN 61000-6-4, FCC Part 15 Subpart B, ICES-001, AS/NZS CISPR 11
Noise immunity	EN 61000-6-2 , EN 61131-2 , EN 61131-9
Shock resistance	EN 60068-2-27

Ambient conditions

Ambient temperature	-25 ... 70 °C (-13 ... 158 °F)
Storage temperature	-40 ... 85 °C (-40 ... 185 °F)
Relative humidity	max. 95 %
Altitude	0 ... 2000 m
Shock and impact resistance	15g, 11ms, half-sine

Mechanical specifications

Degree of protection	IP67
Connection	Power Supply M12, L-coded Fieldbus M12, D-coded Inputs/Outputs M12, A-coded
Material: Housing	Molded Polyamide 66
Mass	454 g
Tightening torque, fastening screws	8 Nm
Tightening torque, cable gland	0.6 Nm
Dimensions: Height	212 mm
Dimensions: Width	65 mm
Dimensions: Length	29.8 mm
Construction type	Field housing
