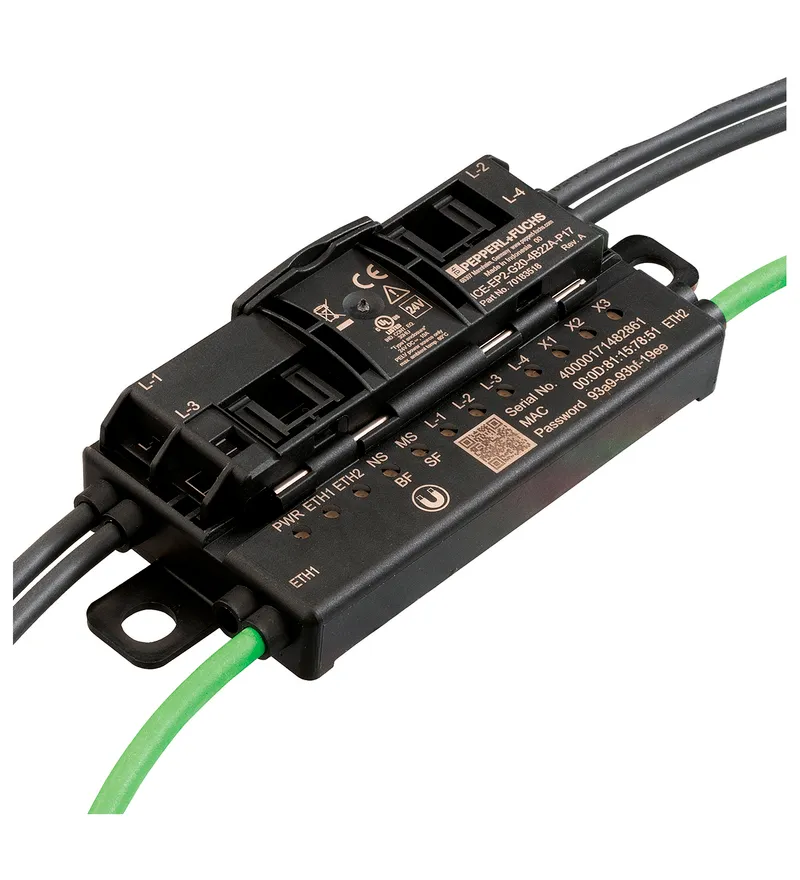

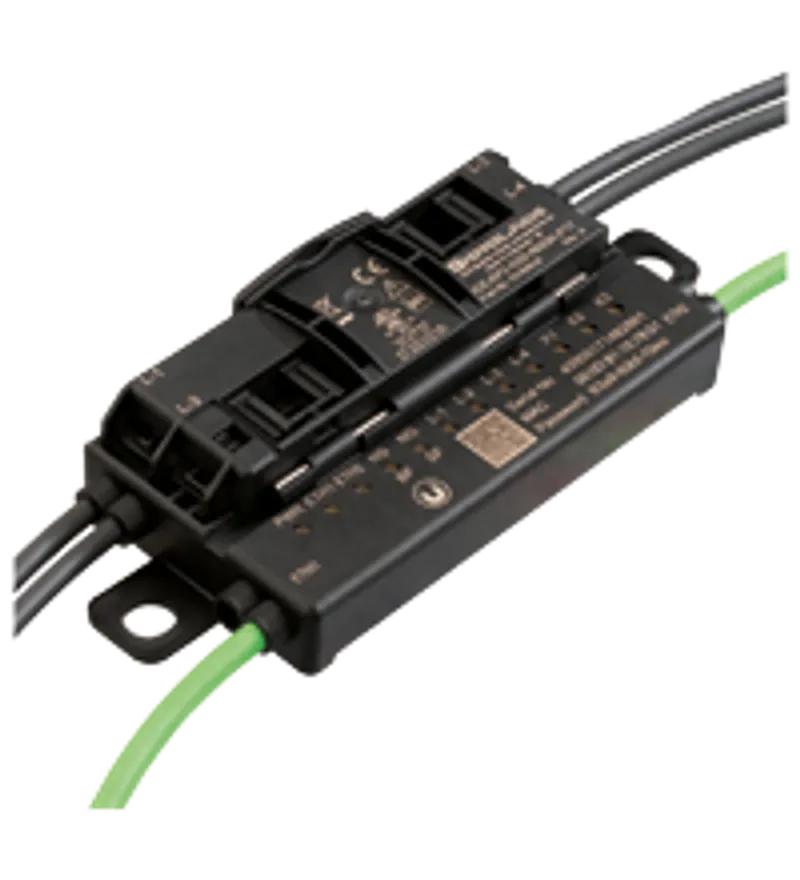

Pepperl Fuchs ICE-EP2-G20-4B22A-P17

Ethernet G20 Controller

MPN: ICE-EP2-G20-4B22A-P17
Category: Ethernet Devices

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Pepperl Fuchs ICE-EP2-G20-4B22A-P17?

Multiprotocol capability for PROFINET and EtherNet/IP

Mounting directly in the support profile

Control of up to 120 motor rollers per controller

IIoT-ready thanks to OPC UA and REST API

Automatic detection and addressing of connected G20 system modules

Control via PLC or decentralized via integrated ZPA logic

Ethernet G20 MDR controller for 4 lines each with up to 15 G20 MDR system modules

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	70183518
Compatible roller motors	See data sheet information ICA-4IO-2M4-G20-B22A-P18
Lifecycle	Active (current Pepperl+Fuchs product)

Indicators/operating means

LED indication

see manual

Electrical specifications

Operating voltage	21.6 ... 30 V DC, PELV UB
No-load supply current	≤ 100 mA I0
Operating current	max. 8.1 A IB
Nominal voltage	24 V UN

Interface 1

Interface type	Fieldbus
Physical	2x M12, D-coded
Protocol	HTTP (REST API) HTTPS EtherNet/IP PROFINET IO
Transfer rate	10 MBit/s / 100 MBit/s , Automatic baud rate detection

Interface 2

Interface type	Communication interface for G20 motor roller sytem module
Physical	4x M12 connector, 4-pin, A-coded
Load current	max. 8 A ≤ 40 °C max. 5 A ≤ 60 °C

Directive conformity

Electromagnetic compatibility: Directive 2014/30/EU

EN 61326-1:2013 EN 55011:2016

Standard conformity

Degree of protection	EN 60529:2000
Emitted interference	EN 61000-6-4:2007
Noise immunity	EN 61000-6-2:2005

Approvals and certificates

UL approval: Application	for use in NFPA 79 applications
UL File Number	E223772

Ambient conditions

Ambient temperature	-25 ... 60 °C (-13 ... 140 °F)
Storage temperature	-40 ... 85 °C (-40 ... 185 °F)
Relative humidity	85 % non-condensing
Climatic conditions	For indoor use only
Altitude	≤ 5000 m above MSL
Shock and impact resistance	30 g, 11 ms in 6 spatial directions, 3 shocks 10 g, 16 ms in 6 spatial directions,1000 shocks
Vibration resistance	0.75 mm / 5 g 5 ... 500 Hz
Pollution degree	3

Mechanical specifications

Degree of protection	IP67 according to EN 60529
Mass	370 g

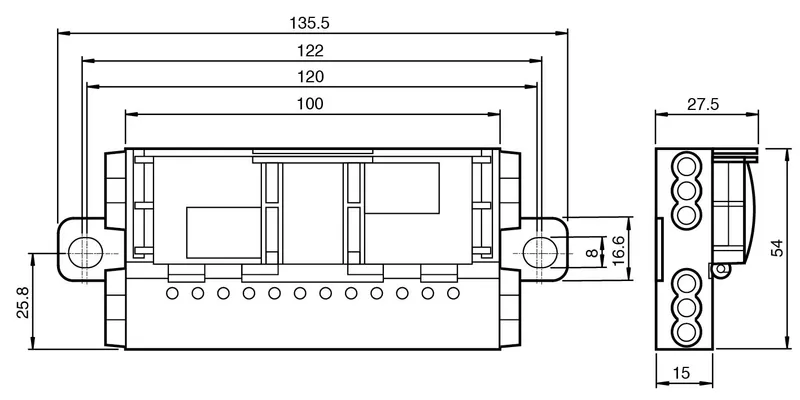

Dimensions: Height	27.5 mm
Dimensions: Width	131.5 mm
Dimensions: Length	54 mm
Mounting	2 clips with ∅ 8 mm drill hole The module must be secured to a solid, continuous surface using the two lugs
Cable length	1.5 m (L-1, L-2, L-3, L-4) 0.3 m (ETH1, ETH2)
Note	The flat cable routing is designed for 100 actuation cycles

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

3-D model (STEP) ICE-EP2-G20-4B22A-P17STP · 1.8 MB

Certificates (2)
