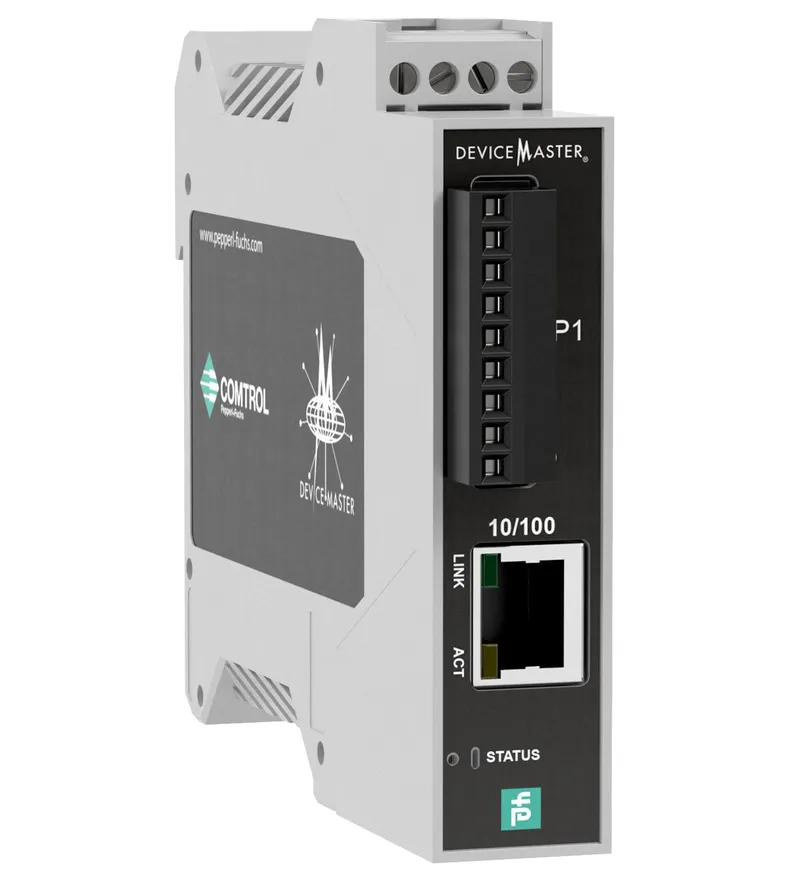

Pepperl Fuchs ICDM-RX/TCP-ST/RJ45-DIN
Serial Device Server
- MPN
- ICDM-RX/TCP-ST/RJ45-DIN
- Category
- Serial Gateways
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs ICDM-RX/TCP-ST/RJ45-DIN?
Web-based configuration
DIN-rail mounting and screw terminal connections
RS-232/422/485 software selectable interfaces
NEMA TS2 Certified
TCP/IP & UDP Socket Services
Device drivers (Windows and Linux)
Serial Device Server 1-port DIN Rail Screw Terminal
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70104868 |
| UL File Number | E360395 |
| MTBF | 61.4 a |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Indicators/operating means
| LED indication | see manual |
Electrical specifications
| Rated operating voltage | 5 ... 30 V DC Ue |
| Power consumption | 1.3 W |
| General information | Redundant power |
| Nominal voltage | 24 V DC UN |
| Current consumption | 63 mA |
Interface
| Interface type | Software selectable interfaces: RS-232 , RS-422 , RS-485 (2 and 4-wire) |
| Physical | 1 x screw terminal |
| Protocol | Raw serial |
| Supported baud rates | 300 bps to 230Kbps |
Interface 1
| Interface type | Industrial Ethernet |
| Physical | 1 x RJ45 |
| Protocol | TCP/IP |
| Additional protocols | ARP, BOOTP, DHCP/RARP, HTTP, HTTPS, SSH, SSL/TLS, ICMP, RFC 1006 (ISO over TCP), SNMP (MIB-II), TCP/IP & UDP socket services, Telnet, and TFTP, and supports IP multicast data transmission |
| Transfer rate | 10/100 Mbps |
Directive conformity
| Electromagnetic compatibility: Directive 2014/30/EU | EN 61000-6-2:2005 , EN 610006-4:2007 , EN 610006-4/A1:2011 |
| RoHS | EN IEC 63000:2018 |
Standard conformity
| Degree of protection | NEMA TS2 |
| Electrical safety | CSA C22.2 No. 61010-1-12 / CSA C22.2 No. 61010-1-201 UL 61010-1 / UL 61010-1-201 |
| Emitted interference | EN 61000-6-4, EN 55032, FCC Part 15 Subpart B, ICES-003, AS/NZS CISPR 32 |
| Noise immunity | EN 61000-6-2 |
Ambient conditions
| Ambient temperature | -40 ... 75 °C (-40 ... 167 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | max. 95 % |
| Altitude | 0 ... 3048 m |
Mechanical specifications
| Degree of protection | IP20 |

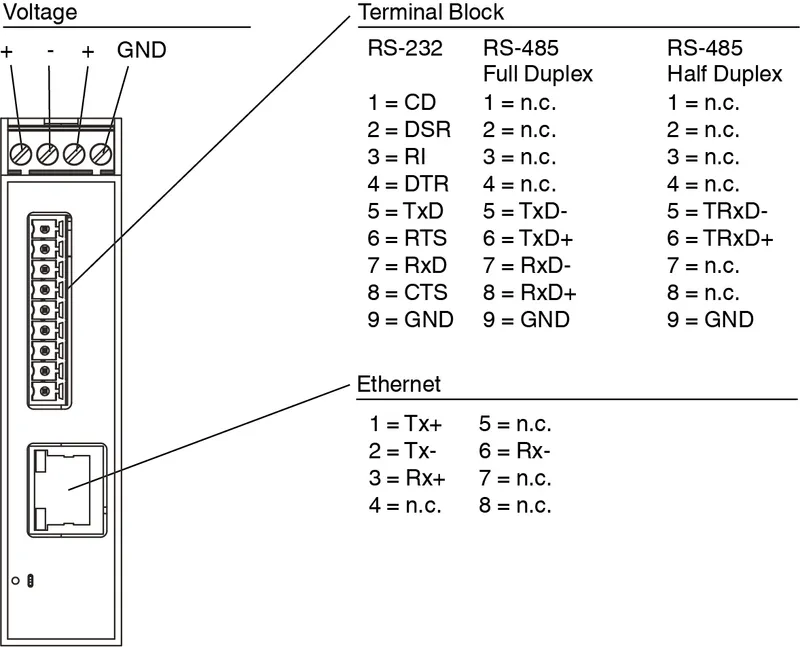

| Connection | Power Supply: screw terminals Fieldbus: 1 x RJ45 Inputs/outputs: 9-pin screw terminal block |
| Material: Housing | Polyamide, UL94V-0 |
| Mass | 113.4g |

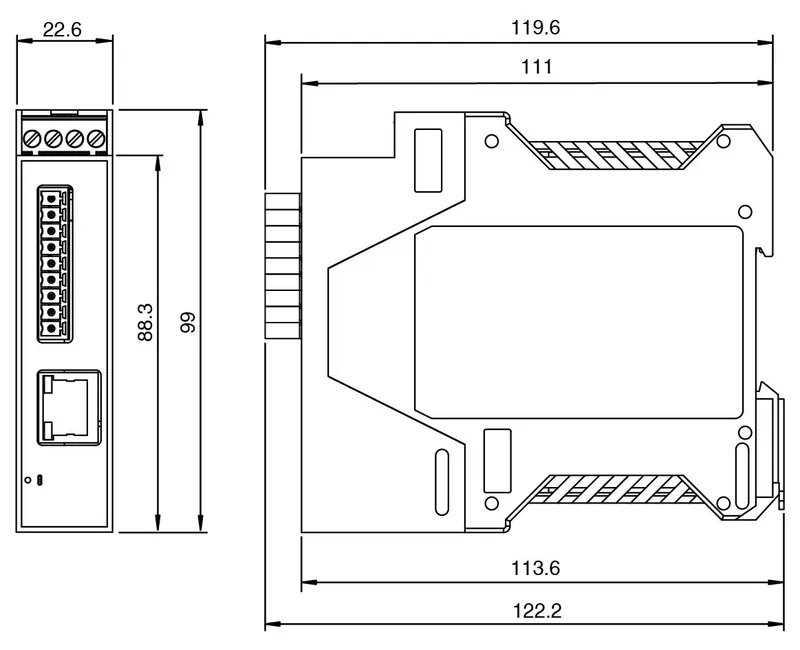

| Dimensions: Height | 99.1 mm |
| Dimensions: Width | 22.9 mm |
| Dimensions: Length | 119.3 mm |
| Construction type | Cabinet module |
| Mounting | DIN mounting rail |
