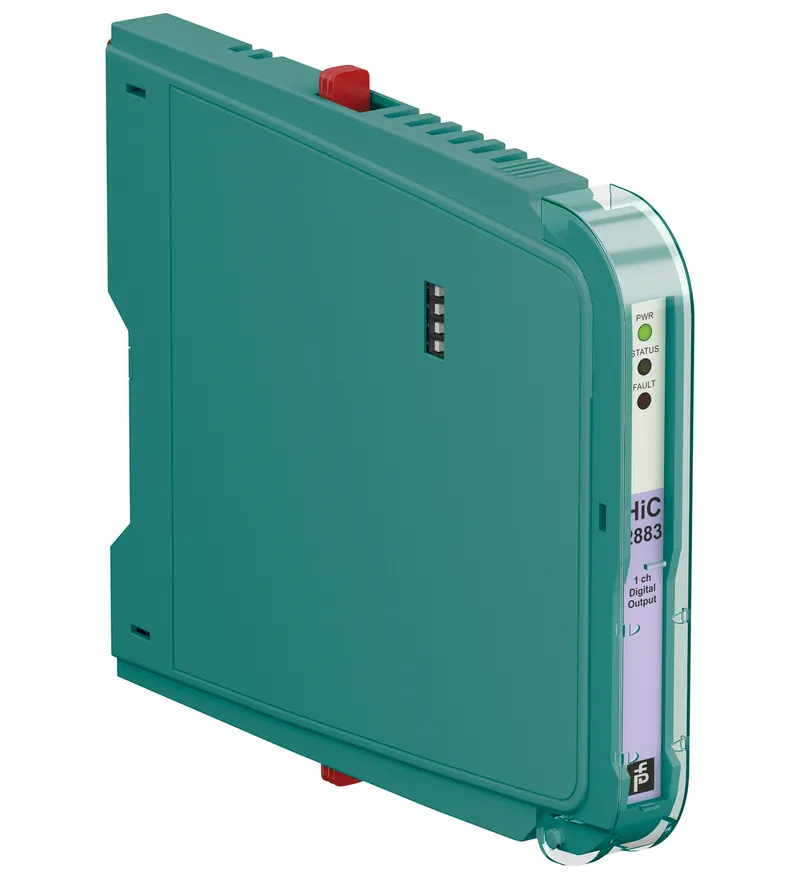

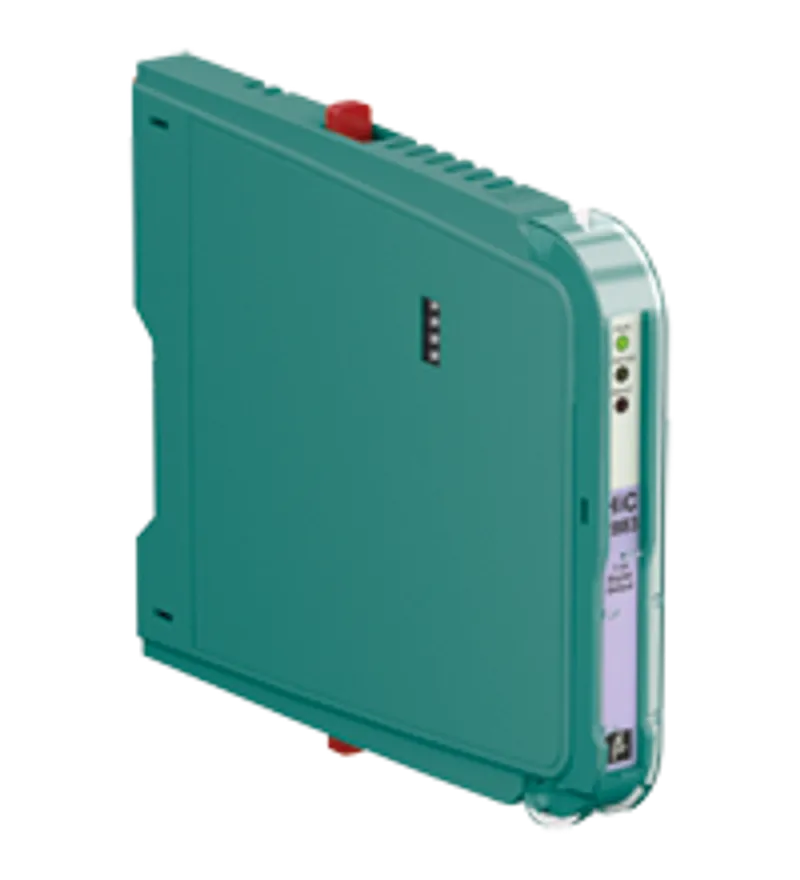

Pepperl Fuchs HiC2883
Solenoid Driver
- MPN
- HiC2883
- Category
- K-System (DIN Rail Mounting)
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Pepperl Fuchs HiC2883?
1-channel isolated barrier
24 V DC supply (bus or loop powered)
Output 45 mA at 12 V DC
Line fault transparency (LFT)
Test pulse immunity
Up to SIL 3 acc. to IEC/EN 61508
1-channel isolated barrier, 24 V DC supply (bus or loop powered), Output 45 mA at 12 V DC, Line fault transparency (LFT), Test pulse immunity, Up to SIL 3 acc. to IEC/EN 61508, Housing width: 12.5 mm, Number of channels: 1-channel, Line fault transparency, Filter, Safety Integrity Level (SIL): SIL 3, Systematic capability (SC): SC 3, Rated voltage: 19 ... 30 V bus powered via Termination Board , 19 ... 30 V loop powered via input , reverse polarity protected, Type: logic input
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70140020 |
| Signal type | Digital Output |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| Safety Integrity Level (SIL) | SIL 3 |
| Systematic capability (SC) | SC 3 |
Supply
| Connection | SL1: 1a, 1b(-); 2a, 2b(+) |
| Rated voltage | 19 ... 30 V bus powered via Termination Board 19 ... 30 V loop powered via input , reverse polarity protected Ur |
| Input current | 75 mA at 24 V, 270 Ω load |
| Power dissipation | 1.3 W at 24 V, 270 Ω load |
Input
| Connection side | control side |
| Connection | SL1: 7a(-), 9a(-); 8a(+), 10a(+) |
| Test pulse length | max. 2 ms from DO card |
| Signal level | loop powered 1-signal: 19 ... 30 V DC 0-signal: 0 ... 5 V DC bus powered 1-signal: 15 ... 30 V DC (current limited to 5 mA) 0-signal: 0 ... 5 V DC |
| Rated current | 0-signal: typ. 1.6 mA at 1.5 V DC; typ. 8 mA at 3 V DC (maximum leakage current DO card) 1-signal: ≥ 36 mA (minimum load current DO card) Ir |
| Inrush current | < 200 mA , 10 ms loop powered |
Output
| Connection side | field side |
| Connection | SL2: 5a(+), 5b(-) |
| Internal resistor | approx. 240 Ω Ri |
| Current | typ. 45 mA Ie |
| Voltage | ≥ 12 V Ue |
| Current limit | 50 mA Imax |
| Open loop voltage | typ. 24.6 V Us |
| Load | nominal 0.05 ... 18 kΩ , valid range for line fault detection (LFD) |
| Switching frequency | max. 10 Hz f |
| Energized/De-energized delay | 20 ms / 5 ms |
| Line fault detection: Test current | max. 350 µA , calculated by ILFD = 4.7 V / (15 kΩ + RLoad) |
Fault indication output
| Connection | SL1: 6b |
| Output type | open collector transistor (internal fault bus) |
Galvanic isolation
| Output/other circuits | basic insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff |
Indicators/settings
| Display elements | LEDs |
| Control elements | DIP switch |
| Configuration | via DIP switches |
| Labeling | space for labeling at the front |
Directive conformity
| Electromagnetic compatibility: Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) |
Conformity
| Electromagnetic compatibility | NE 21:2017 , IEC/EN 61326-3-2:2018 For further information see system description. |
| Degree of protection | IEC 60529:2013 |
| Protection against electrical shock | UL 61010-1:2012 |
Ambient conditions
| Ambient temperature | -40 ... 70 °C (-40 ... 158 °F) |
Mechanical specifications
| Degree of protection | IP20 |
| Mass | approx. 150 g |
| Dimensions | 12.5 x 106 x 128 mm (0.5 x 4.2 x 5.1 inch) (W x H x D) |
| Mounting | on termination board |
| Coding | pin 1 and 4 trimmed For further information see system description. |
Data for application in connection with hazardous areas
| EU-type examination certificate | FIDI 21 ATEX 0069X |
| Marking | II 3(1)G Ex nC ec [ia Ga] IIC T4 Gc [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I |
| Output | Ex ia |
| Voltage | 26 V Uo |
| Current | 110 mA Io |
| Power | 715 mW Po |
| Supply: Maximum safe voltage | 60 V (Attention! The rated voltage can be lower.) Um |
| Input: Maximum safe voltage | 60 V (Attention! The rated voltage can be lower.) Um |
| Galvanic isolation: Input/Output | safe electrical isolation acc. to IEC/EN 60079-11, rated insulation voltage 300 Vrms |
| Directive conformity: Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 , EN 60079-7:2015+A1:2018 , EN 60079-11:2012 , EN IEC 60079-15:2019 |
International approvals
| FM approval | FM 17 US 0111 X , FM 17 CA 0057 X |
| Control drawing | 116-0442 |
| UL approval | E106378 |
| Control drawing | 116-0447A (cULus) |
| IECEx approval: IECEx certificate | IECEx EXA 17.0009X |
| IECEx approval: IECEx marking | Ex nC ec [ia Ga] IIC T4 Gc [Ex ia Da] IIIC [Ex ia Ma] I |
General information
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
No matching specifications
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
Certificates (10)
- China SITIIAS CCC Ex Certificate (2025322316006998 (Vietnam))
- EU Declaration of Conformity (Pepperl+Fuchs)
- India PESO (India) CCOE (A/P/HQ/KA/104/6095 (P579046))
- United Kingdom CML UK-Type Examination Certificate UKEX Category (1) D UKEX Category (M1) UKEX Category 3 (1) G (CML 21UKEX21331X)
- Canada USA UL Certificate of Compliance Hazardous Location UL E106378 cULus (CoC 20181210 - E106378 RepRef 20181203)
- China SITIIAS CCC Ex Certificate (2023322316004972 (Singapore))
- Korea KOSHA (18-AV4BO-0217X)
- Europe Fiditas ATEX Category (1) D ATEX Category 3 (1) G Group I (M1) (FIDI 21 ATEX 0069X)
- USA FM (FM 17 US 0111X)
- Canada FM (FM 17 CA 0057X)
