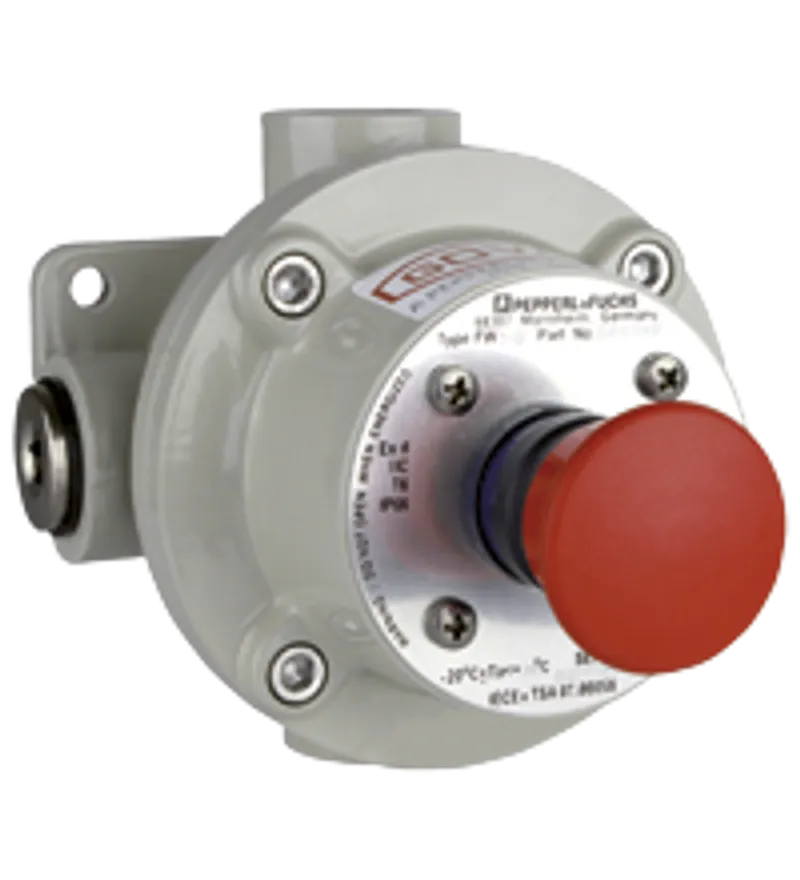

Pepperl Fuchs FW* LCU
Control Units Ex d IIB, Aluminum
- MPN
- FW* LCU
- Category
- Accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via

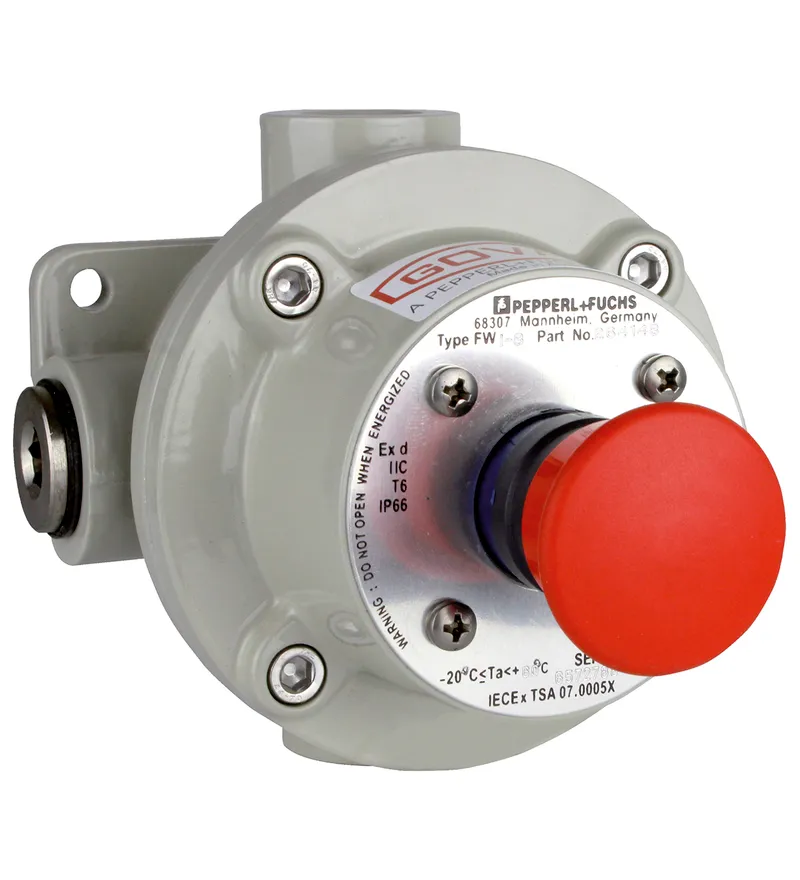

What is the Pepperl Fuchs FW* LCU?
Ex d certified
Installation in Zone 1, Zone 2
Gas group IIB
Aluminum enclosure
Customizable configuration of operators and cable gland types as per specification
Degree of protection IP66
Ex d certified, Installation in Zone 1, Zone 2, Gas group IIB, Aluminum enclosure, Customizable configuration of operators and cable gland types as per specification, Degree of protection IP66
Specifications
Electrical specifications
| Order code (Pepperl+Fuchs part number) | T190416 |
| Operating voltage | 240 V AC max. |
| Operating current | see data table |
| Terminal capacity | see data table |
| Terminal torque | see data table |
| Function | see data table |
| Usage category | see data table |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Mechanical specifications
| Thread type | metric ISO pitch 1.5 mm |
| Enclosure range | FW |
| Enclosure cover | detachable |
| Cover fixing | stainless steel socket cap head screws |
| Screws | M6 |
| Number | 4 |
| Tightening torque | 3 Nm |
| Material of screws | stainless steel |
| Yield stress | min. 450 N/mm2 |
| Cover seal | nitrile O-ring |
| Flamepath grease | Fluid film grade AR |
| Degree of protection | IP66 |
| Cable entry | metric threaded |
| Cable entry face A: M20 quantity | 1 |
| Cable entry face B: M20 quantity | 1 |
| Cable entry face C: M20 quantity | 1 |
| Cable entry face C: M20 type | Stopping Plug |
| Cable entry face D: M20 quantity | 1 |
| Cable entry face D: M20 type | Stopping Plug |
| Material: Enclosure | aluminum alloy |
| Material: Finish | epoxy coated RAL 7032 |
| Mass | approx. 1.2 kg |

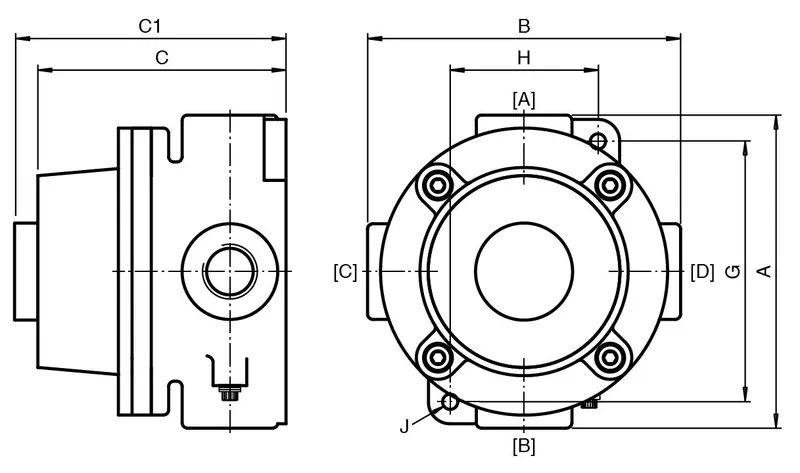

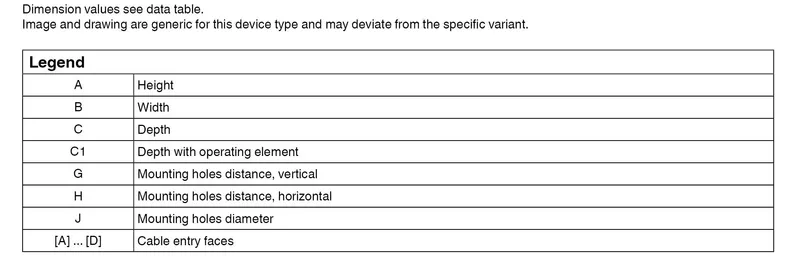

| Dimensions | see data table |
| Mounting | see data table |
| Grounding | M6 external grounding points |
Ambient conditions
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
Data for application in connection with hazardous areas
| EU-type examination certificate | SIRA 07 ATEX 1132X |
| Marking | II 2 G Ex d IIB T* T6 @ Ta +60 °C |
International approvals
| IECEx approval | IECEx TSA 07.0005X |
Conformity
| Degree of protection | EN60529 |
| Usage category | IEC / EN 60947 |
| CE marking | 0102 |
General information
| Order information | This device will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
