Pepperl Fuchs Ex-Time 40
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Measurement and Other Tools |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can Ex-Time 40 be shipped?
Ex-Time 40 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up Ex-Time 40 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for Ex-Time 40 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Ex-Time 40, subject to availability and destination.

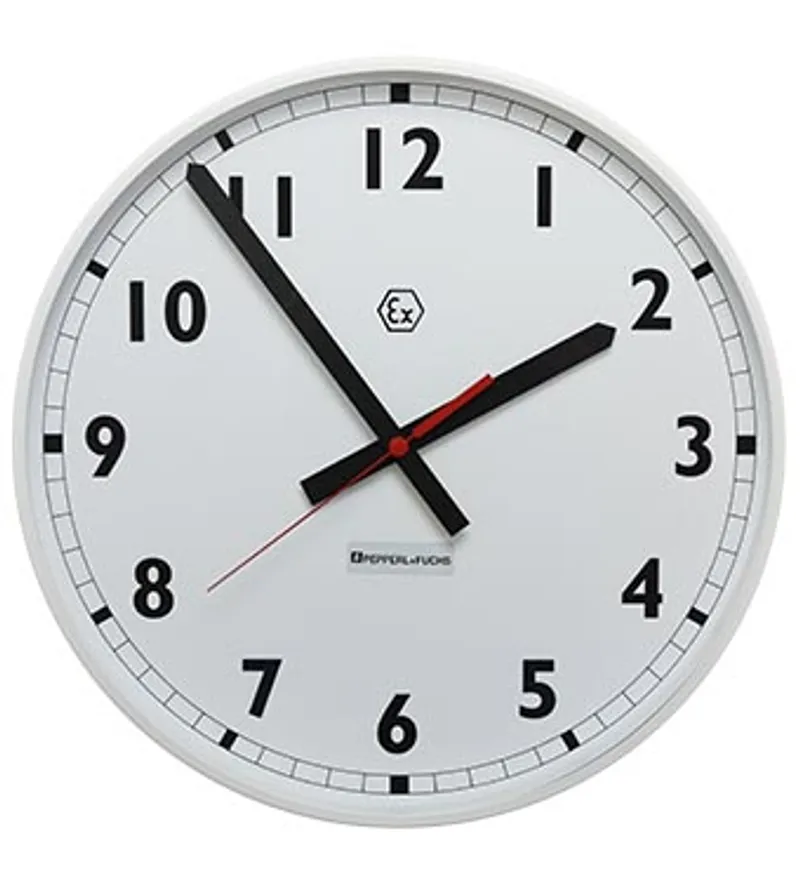

Clock. Explosion-protected quartz wall clock. Battery type: 1x LR14 according to IEC (type-tested). Operating duration: 1 year. Accuracy: -5 / +15 seconds per month. Ambient temperature: 0 ... 50 °C (32 ... 122 °F). Mass: approx. 2 kg. Dimensions: 400 mm x 60 mm. EU-type examination certificate: PTB 02 ATEX 2197 X. Marking II 2 G Ex ia IIC T4 Gb: . Marking: II 2 G Ex ia IIC T4 Gb. SGS approval: . SGS certificateSGSNA/22/SUW/00077XSGS markingClass I, Division 1, Groups A, B, C, D, T4: . SGS certificate: SGSNA/22/SUW/00077X. SGS marking: Class I, Division 1, Groups A, B, C, D, T4. UKCA approval: . UKCA certificateCML 21UKEX 21404XUKCA marking II 2G Ex ia IIC T4 Gb: . UKCA certificate: CML 21UKEX 21404X. UKCA marking: II 2G Ex ia IIC T4 Gb. Scope of delivery: Ex-Time 40 Batteries Documentation
Specifications
Electrical specifications
| Battery type | 1x LR14 according to IEC (type-tested) |
| Operating duration | 1 year |
Measurement accuracy
| Accuracy | -5 / +15 seconds per month |
Ambient conditions
| Ambient temperature | 0 ... 50 °C (32 ... 122 °F) |
Mechanical specifications
| Mass | approx. 2 kg |
| Dimensions | 400 mm x 60 mm |
Data for application in connection with hazardous areas
| EU-type examination certificate | PTB 02 ATEX 2197 X |
| Marking II 2 G Ex ia IIC T4 Gb | Marking |
| Marking | II 2 G Ex ia IIC T4 Gb |
International approvals
| SGS approval | |
| SGS certificateSGSNA/22/SUW/00077XSGS markingClass I, Division 1, Groups A, B, C, D, T4 | SGS certificate |
| SGS certificate | SGSNA/22/SUW/00077X |
| SGS marking | Class I, Division 1, Groups A, B, C, D, T4 |
| UKCA approval | |
| UKCA certificateCML 21UKEX 21404XUKCA marking II 2G Ex ia IIC T4 Gb | UKCA certificate |
| UKCA certificate | CML 21UKEX 21404X |
| UKCA marking | II 2G Ex ia IIC T4 Gb |
General information
| Scope of delivery | Ex-Time 40 Batteries Documentation |
