Pepperl Fuchs EPV-*-GP-90

Enclosure protection vent

MPN: EPV-*-GP-90
Category: Purge and Pressurization System (Enviro-Line)

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Pepperl Fuchs EPV-*-GP-90?

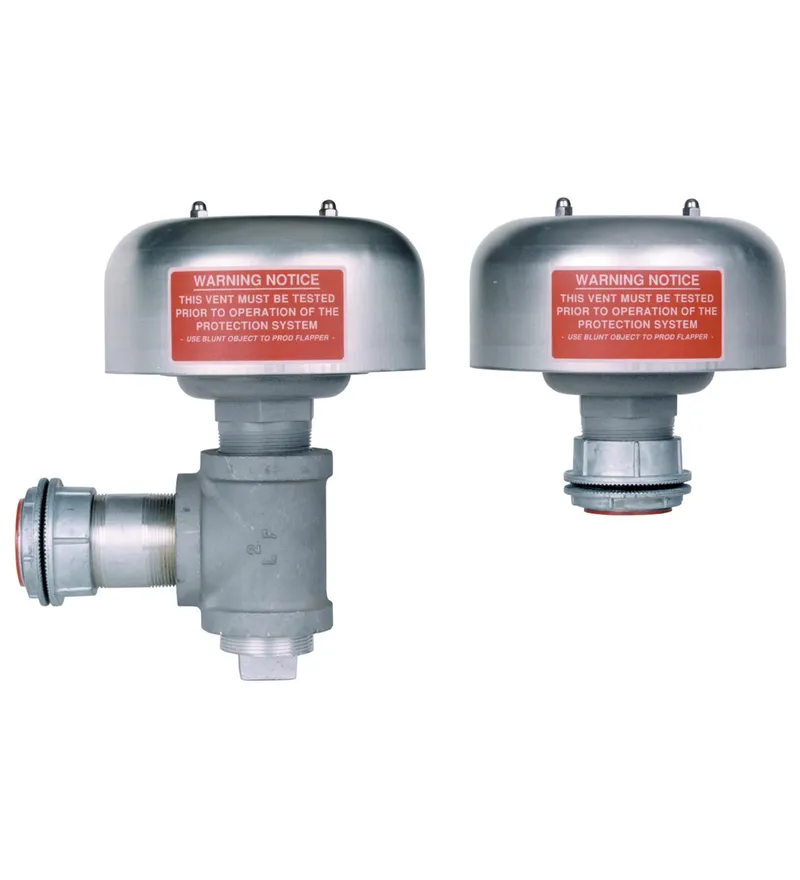

Top or side mount configurations

Seamless cap

Friction free valve assembly

Spark arresting exhaust

Pressure relief vent for use with the Pepperl+Fuchs Bebco EPS® purge and pressurization systems

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	T168704
Series	EPV
Hazardous environment	gas or dust
Lifecycle	Active (current Pepperl+Fuchs product)

Pneumatic parameters

Protective gas supply	instrument grade air or inert gas
Pressure requirement	2" ...5" wc (50.8 mm ... 127 mm wc)
Maximum pressure	5" ... 7" wc (127 mm ... 177 mm wc)
Breaking pressure	0.65" wc (16.5 mm wc)

Ambient conditions

Ambient temperature	-29 ... 49 °C (-20.2 ... 120.2 °F)
Relative humidity	5 ... 95 %, non-condensing

Mechanical specifications

Material	Body: cap - 3003 drawn aluminum base - A.S.E. 306, 308 cast aluminum mounting hub - zinc plated steel pipe fittings - schedule 40 3003 aluminum nameplates - Lexan® hardware - 316 SS Exhaust elements: spark arrestor - 316 SS element cap - 6061 aluminum Valve assembly: base - 14 Ga. machined 316 ss seat disc - 14 Ga. machined 316 SS hinge - Zytel® 8018, 14% glass fill pin & rivets - 316 SS disc adhesive - urethane epoxy
Mass	EPV-1-GP-90: 4 lb (1.81 kg)EPV-2-GP-90: 4 lb (1.81 kg)EPV-3-GP-90: 5 lb (2.27 kg)EPV-4-GP-90: 9 lb (4.08 kg)EPV-5-GP-90: 12 lb (5.44 kg)
Mounting	Side or Top Mount
