Pepperl Fuchs DTM2P-TEE-PVC-V11S/DTM2P-HOE
Y connection cable
- MPN
- DTM2P-TEE-PVC-V11S/DTM2P-HOE
- Category
- Sensor-Actuator Splitters
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs DTM2P-TEE-PVC-V11S/DTM2P-HOE?

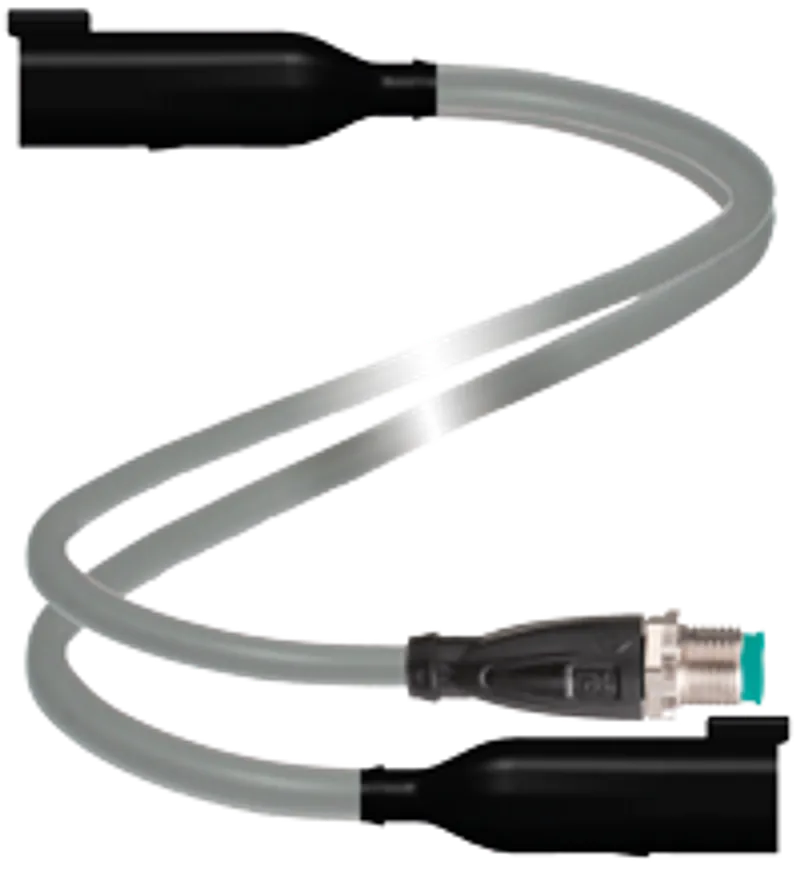

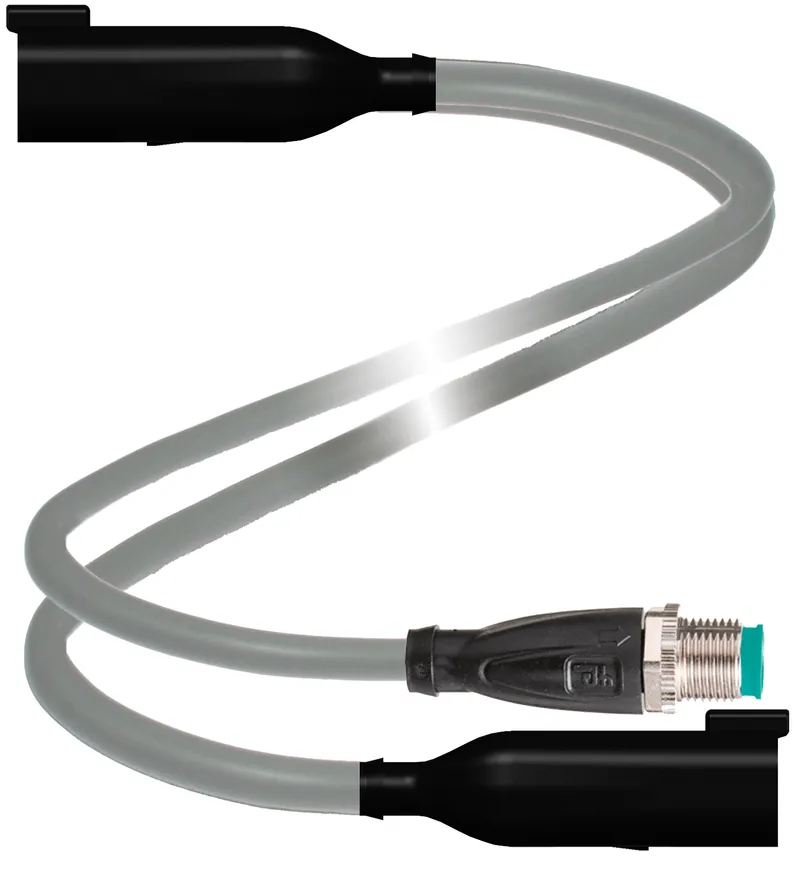

Image is generic for this device type and may deviate from the specific variant
Y connection cable Deutsch plug straight 2-pin to M12 plug straight A-coded 3-pin / Deutsch plug straight 2-pin, PVC cable grey
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70171015 |
| Connector 1: Connection | plug |
| Connector 1: Construction type | M12 |
| Connector 1: Style | straight |
| Connector 1: Locking | screw connection |
| Connector 1: Number of pins | 3 |
| Connector 1: Coding | A-coded |
| Connector 2: Connection | plug |
| Connector 2: Construction type | Deutsch connectors |
| Connector 2: Style | straight |
| Connector 2: Locking | snap locking |
| Connector 2: Number of pins | 2 |
| Connector 3: Connection | plug |
| Connector 3: Construction type | Deutsch connectors |
| Connector 3: Style | straight |
| Connector 3: Locking | snap locking |
| Connector 3: Number of pins | 2 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Operating voltage | max. 250 V AC/DC UB |
| Operating current | max. 4 A IB |
Conformity
| Degree of protection | EN 60529 |
Ambient conditions
| Ambient temperature: Connector 1 | -40 ... 90 °C (-40 ... 194 °F) |
| Ambient temperature: Connector 2 | -55 ... 125 °C (-67 ... 257 °F) |
| Ambient temperature: Connector 3 | -55 ... 125 °C (-67 ... 257 °F) |
| Ambient temperature: Cable, fixed installation | -25 ... 70 °C (-13 ... 158 °F) |
| Ambient temperature: Cable, flexing | -5 ... 70 °C (23 ... 158 °F) |
| Pollution degree | 3 |
Mechanical specifications
| Connector 1: Tightening torque | 0.6 Nm |
| Connector 1: Loosening protection | available |
| Connector 1: Tool installation | straight knurling , hexagon nut SW = 14 mm |
| Connector 1: Mating cycles | min. 100 |
| Connector 1: Degree of protection | IP68 / IP69 |
| Connector 2: Loosening protection | available |
| Connector 2: Mating cycles | min. 100 |
| Connector 2: Degree of protection | IP68 |
| Connector 3: Loosening protection | available |
| Connector 3: Mating cycles | min. 100 |
| Connector 3: Degree of protection | IP68 |
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 5 |
| Sheath diameter | 4.8 mm |
| Bending radius | > 10 x cable diameter, movable installation |
| Sheath stripping force | max. 80 N / 300 mm |
| Sheath color | grey (similar to RAL 7001) |
| Number of cores | 3 |
| Core cross section | 0.34 mm2 |
| Cores color | Core 1: brown Core 2: blue |
| Core construction | 19 x 0.15 mm ∅ |
| Length | L1 = 120 mm L2 = 230 mm L |
| Cable code | Li Y YM 3 x 0,34 |
| Mass | 31 g |
Material
| Connector 1: Screw connection | Zinc diecast, nickel-plated |
| Connector 1: Body | TPU, black |
| Connector 1: Contact surface | gold plated (Au) |
| Connector 1: Flammability | V-2 |
| Connector 2: Body | PA, black |
| Connector 2: Contact surface | Ni |
| Connector 2: Flammability | V-0 |
| Connector 3: Body | PA, black |
| Connector 3: Contact surface | Ni |
| Connector 3: Flammability | V-0 |
| Cable: Sheathing | PVC |
| Cable: Core insulation | PVC |
| Cable: Flammability | flame-resistant |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals

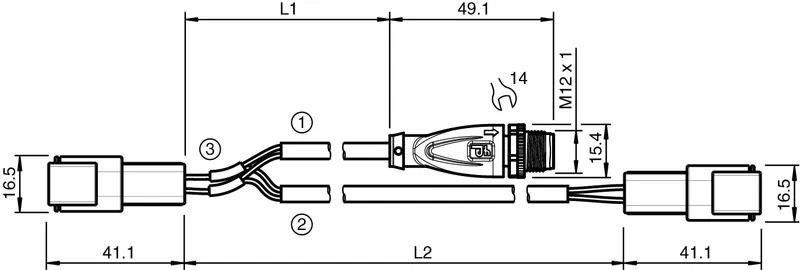

CAD & dimension drawings
DTM2P-TEE-PVC-V11S/DTM2P-HOE: frequently asked questions
When can DTM2P-TEE-PVC-V11S/DTM2P-HOE be shipped?
DTM2P-TEE-PVC-V11S/DTM2P-HOE is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up DTM2P-TEE-PVC-V11S/DTM2P-HOE in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for DTM2P-TEE-PVC-V11S/DTM2P-HOE and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for DTM2P-TEE-PVC-V11S/DTM2P-HOE, subject to availability and destination.
