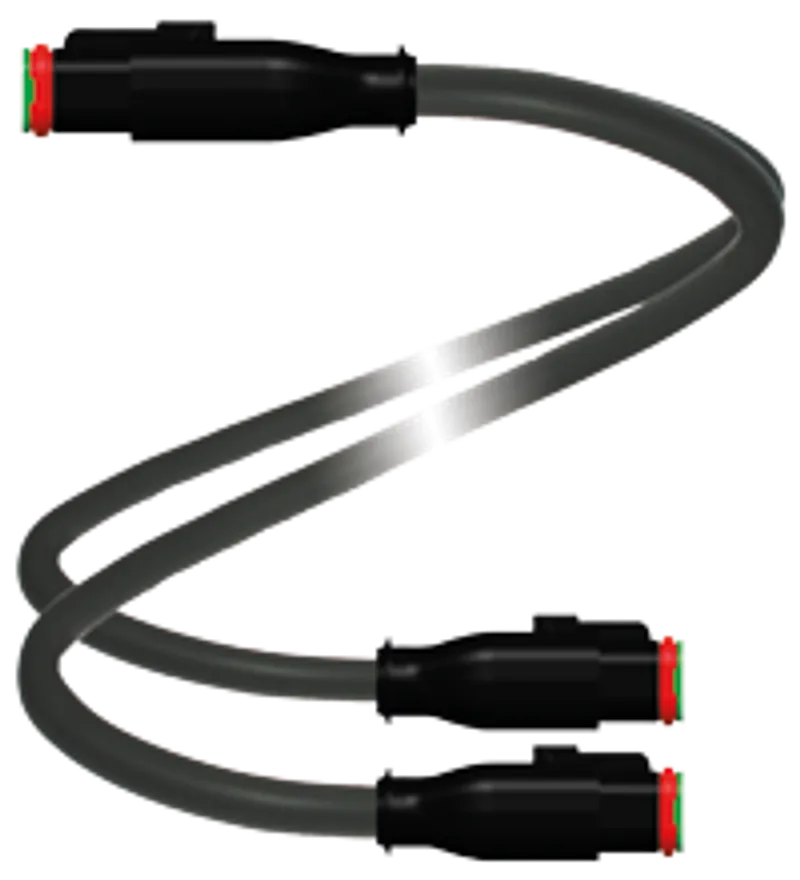

Pepperl Fuchs DT2S/DT2S-G-0,3M-PUR-O1-T-DT4S
Y connection cable
- MPN
- DT2S/DT2S-G-0,3M-PUR-O1-T-DT4S
- Category
- Sensor-Actuator Splitters
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs DT2S/DT2S-G-0,3M-PUR-O1-T-DT4S?
Suitable for outdoor use (UV- and ozone resistant)
Suitable for drag chains and abrasion resistant
Degree of protection IP68
Resistant to microbes and hydrolysis
Oil resistant
Resistant to salt water
Halogen-free
Snap locking

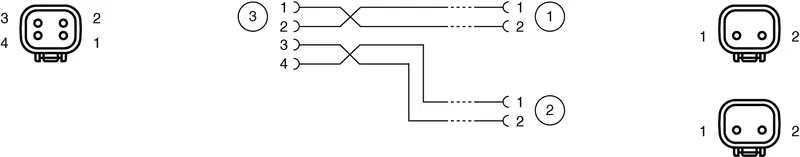

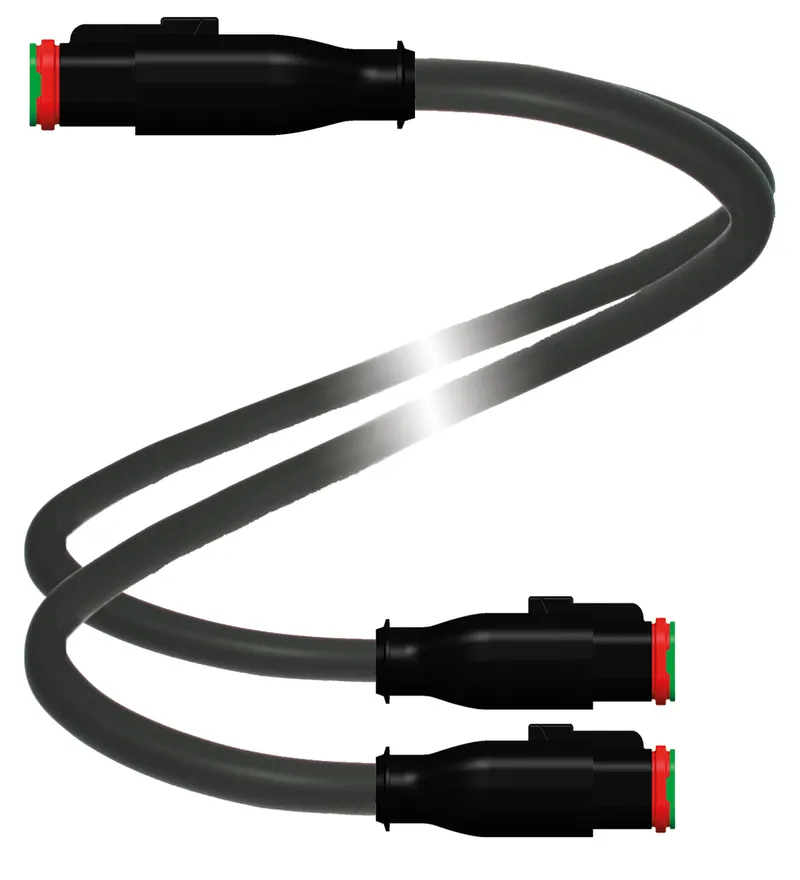

Y connection cable Deutsch socket straight 4-pin to 2x Deutsch socket straight 2-pin, 2x PUR cable black, drag chain suitable
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70176250 |
| Connector 1: Connection | socket |
| Connector 1: Construction type | Deutsch connectors |
| Connector 1: Style | straight |
| Connector 1: Locking | snap locking |
| Connector 1: Number of pins | 2 |
| Connector 2: Connection | socket |
| Connector 2: Construction type | Deutsch connectors |
| Connector 2: Style | straight |
| Connector 2: Locking | snap locking |
| Connector 2: Number of pins | 2 |
| Connector 3: Connection | socket |
| Connector 3: Construction type | Deutsch connectors |
| Connector 3: Style | straight |
| Connector 3: Locking | snap locking |
| Connector 3: Number of pins | 4 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Operating voltage | max. 48 V AC / 60 V DC UB |
| Operating current | max. 4 A IB |
Conformity
| Degree of protection | EN 60529 |
| Flammability | UL 1581; DIN EN 60332-2-2 |
| Halogen-free | DIN VDE 0472-815 / DIN EN 50267-2-1 |
| Oil resistance | DIN EN 60811-2-1 |
Ambient conditions
| Ambient temperature: Plug connector | -40 ... 125 °C (-40 ... 257 °F) |
| Ambient temperature: Cable, fixed installation | -50 ... 105 °C (-58 ... 221 °F) |
| Ambient temperature: Cable, flexing | -30 ... 105 °C (-22 ... 221 °F) |
| Pollution degree | 3 |

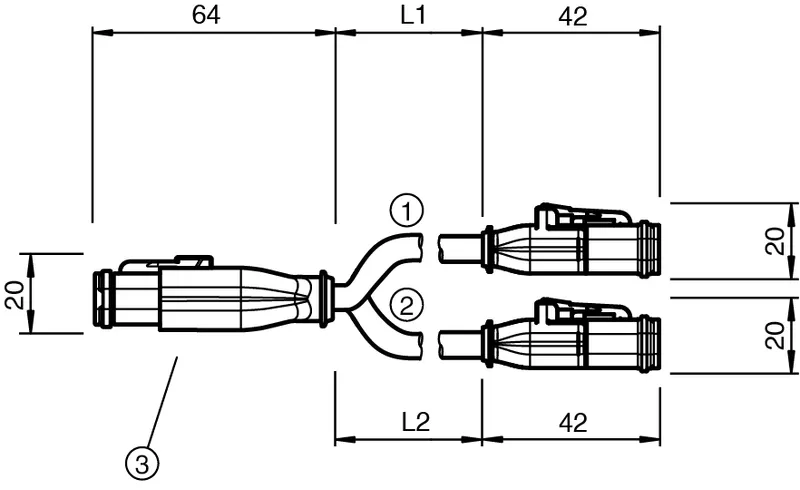

Mechanical specifications
| Plug connector: Loosening protection | available |
| Degree of protection | IP68 |
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 6 |
| Sheath diameter | 4.5 mm |
| Bending radius | > 10 x cable diameter, movable installation > 8 x cable diameter, fixed installation |
| Sheath stripping force | max. 50 N / 300 mm |
| Sheath color | black (similar to RAL 7021) |
| Number of cores | 3 |
| Core cross section | 0.5 mm2 |
| Cores color | Core 1: brown Core 2: blue Core 3: brown Core 4: blue |
| Core construction | 28 x 0.15 mm ∅ 1 x symmetrically twisted |
| Length | 0.3 m L |
| Cable code | Li 9Y 11Y 3 x 0,50 |
| Drag chain suitability: Drag chain cycles | min. 2000000 |
| Drag chain suitability: Motion velocity | max. 3 m/s |
| Drag chain suitability: Traverse distance | max. 10 m |
| Drag chain suitability: Acceleration | max. 10 m/s2 |
Material
| Halogen-free | yes |
| Plug connector: Body | PA, black |
| Plug connector: Contact surface | Ni |
| Plug connector: Flammability | V-0 |
| Cable: Sheathing | PUR based on polyether |
| Cable: Core insulation | PP |
| Cable: Salt water resistance | yes |
| Cable: UV resistance | yes |
| Cable: Chemical resistance | good |
| Cable: Oil resistance | yes |
| Cable: Cooling lubricant resistance | yes |
| Cable: Microbial resistance | yes |
| Cable: Hydrolysis resistance | yes |
| Cable: Flammability | FT2 |
