Pepperl Fuchs DM-320P-*

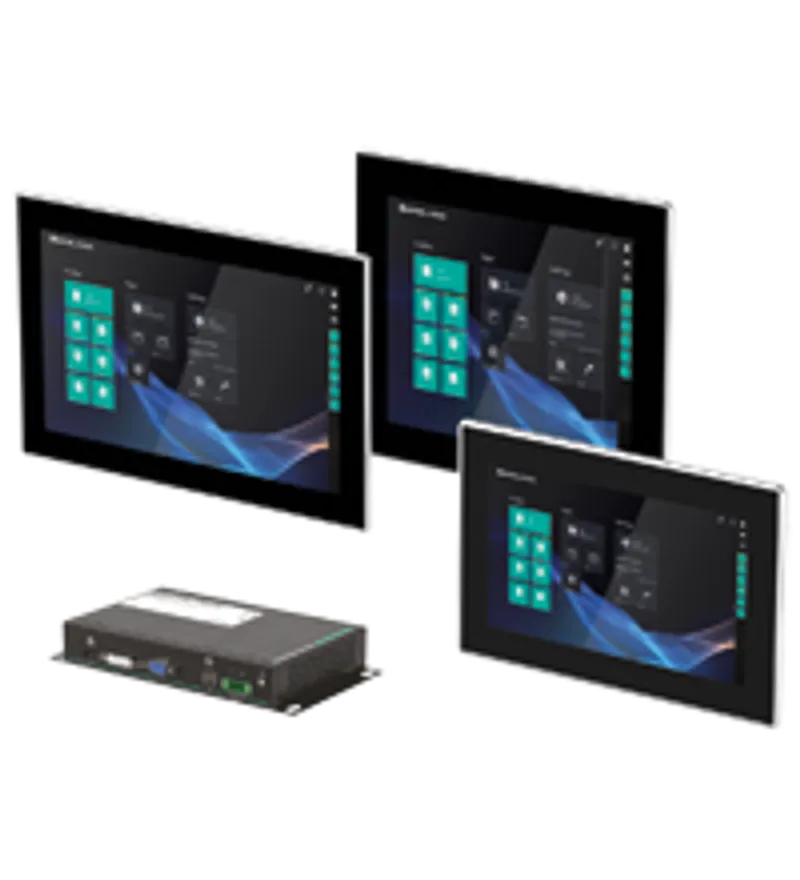

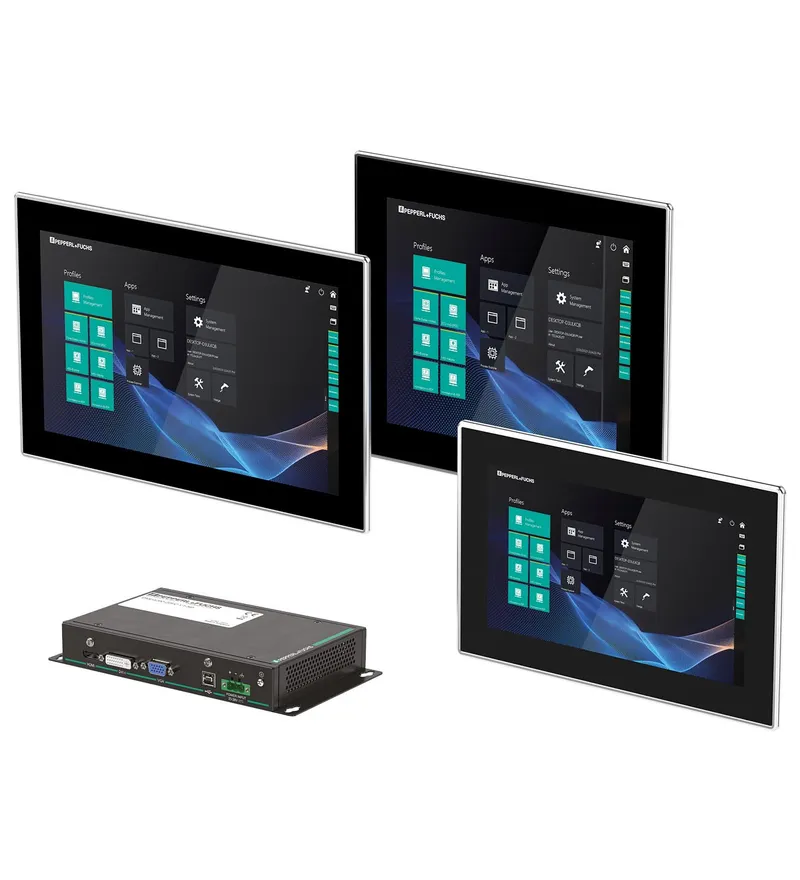

Direct Monitor - Panel Mount

MPN: DM-320P-*
Category: Industrial Monitors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Pepperl Fuchs DM-320P-*?

Optional display variant with optical bonding

Full HD displays with modern, 10 finger capacitive touchscreen, supporting multi-touch and glove operation

Global certifications

Direct Monitor - Panel Mount, Optional display variant with optical bonding, Full HD displays with modern, 10 finger capacitive touchscreen, supporting multi-touch and glove operation, Global certifications

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	T193555
Type	Direct Monitor
Lifecycle	Active (current Pepperl+Fuchs product)

Supply

Input current	1.5 A
Power consumption: DC	20 ... 28 V d.c. / 1.5 A (SELV/PELV or class 2) For connections designation refer to the VisuNet FLX Panel Mount manual.

Indicators/operating means

Display: Type	Liquid Crystal Display (LCD) with LED backlight
Display: Screen size	Configurable display options: 22KT, 22GT: 54.61 cm (21.5") [temperature class A] 22FC: 54.61 cm (21.5'') (Display might react sluggishly below 0 °C) 19SC: 48.26 cm (19") 15FC: 39,62 cm (15,6")
Display: Resolution	22KT, 22GT, 22FC, 15FC: 1920 x 1080 pixels (Full HD) Aspect Ratio (16:9) 19SC: 1280 x 1024 pixels (SXGA) Aspect Ratio (5:4)
Display: Color depth	24 bit (16.7 M) color
Display: Contrast ratio	Typically 22KT, 22GT: 1000:1 22FC: 5000:1 19SC: 1000:1 15FC: 800:1
Display: Brightness	Configurable display options: 22KT, 22GT: 250 cd/m2 22FC: 300 cd/m2 19SC: 450 cd/m2 15FC: 450 cd/m2
Display: Viewing angle	22KT, 22GT: 178 ° in all directions 22FC, 19SC: horizontal: 170 °, vertical: 160 ° 15FC: 170 ° in all directions
Display: Life span	22KT, 22FC, 19SC, 15FC: back lamp life: 50.000 hrs typical half life, at 25 °C (77 °F) 22GT: back lamp life: 30.000 hrs typical half life, at 25 °C (77 °F)
Input devices: Keyboard	Optional: Foil keyboard with different pointing device options available (see EXTA4 datasheet)

Interface

Interface type

1x Power input w/ 3 pin terminal block 1x HDMI 1x DVI-I 1x VGA 1x USB 1x OSD Menu w/ power button

Directive conformity

Electromagnetic compatibility: Directive 2014/30/EU	EN 61326-1:2013 (ind. Locations) EN 61000-6-4:2007+A1:2011 EN 55035:2017/A11:2020 EN 55011:2016+A1:2017
Explosion protection: Directive 2014/34/EU	EN IEC 60079-0:2018EN IEC 60079-7:2015/A1:2018 EN IEC 60079-31:2014
RoHS: Directive 2011/65/EU (RoHS)	EN IEC 63000:2018

Ambient conditions

Operating temperature	Temperature classes: A: 0 … 45 °C (32 … 113 °F) B: -20 … 55 °C (-4 … 131 °F) [with wide temperature grade RAM/storage and optically bonded display unit]
Storage temperature	-20 ... 65 °C (-4 ... 149 °F)
Relative humidity	max. relative humidity 93% at 40°C (non-condensing) according to EN60068-2-78
Climatic conditions	Passive cooling, no rotating parts.
Altitude	Operating altitude max. 2000 m
Shock resistance	18 shocks 15 g, 11 ms all axis, IEC 60068-2-27
Vibration resistance	10 ... 150 Hz, +/- 0.075 mm, 1g, 10 cycles per axis according to EN60068-2-6

Mechanical specifications

Degree of protection	Front side: IP66/Type 4X Back side: IP20
Material	Front bezel: Stainless steel AISI304 (glass, silicone gasket) Backside: Painted aluminum sheet metal
Installation	Panel mount (additional mounting kits available)
Mass	22KT, 22GT, 22FC and 19SC: approx. 8 kg 15FC: 5.4 kg
Dimensions	22 inch: 567 mm x 358 mm x 68 mm 19 inch: 485.7 mm x 410.5 mm x 68 mm 15 inch: 434 mm x 283.4 mm x 67 mm For cut out dimensions refer to the VisuNet FLX Panel mount manual.

International approvals

UL approval: Approved for	UL OrdLoc UL approval E223772 UL61010-1 Ed.3 UL 61010-2-201 Ed2 CAN/CSA C22.2 No 61010-1-12 CAN/CSA C22.2 No 61010-2-201 IS circuits for CL I, DIV 2, GP A-D CL II, DIV 2, GP E, F, G CL III IS circuits for CL I, ZN 2, IIC CL II, ZN 22, IIIB CL III, ZN 22, IIIA Install per drawing 116-0478 Mounting in CL I, DIV 2, GP A-D, T4 CL II, DIV 2, GP E, F, G CL III Mounting in CL I, ZN 2, IIC, T4 CL II, ZN 22, IIIB CL III, ZN 22, IIIA
ATEX approval: ATEX certificate	UL 22 ATEX 2479X
ATEX approval: ATEX marking	II 3 G Ex ec IIC T4 Gc
ATEX approval: ATEX certificate	UL 22 ATEX 2480U
ATEX approval: ATEX marking	II 3D Ex tc IIIC Dc
IECEx approval: IECEx certificate	IECEx ULD 22.0017X
IECEx approval: IECEx marking	Ex ec [ic] IIC T4 Gc
IECEx approval: IECEx certificate	IECEx ULD 22.0018U
IECEx approval: IECEx marking	Ex tc [ic] IIIC Dc
IECEx approval: IECEx standard	IEC 60079-0:2017 Ed 7.0 IEC 60079-7:2017 Ed 5.1 IEC 60079-31:2013 Ed. 2
CCC approval: CCC certificate	2023322309005727
CCC approval: CCC marking	Ex ec IIC T4 Gc Ex tc IIIC Dc
CCC approval: CCC standard	GB 3836.1-2021 GB/T 3836.3-2021 GB/T 3836.31-2021
