Pepperl Fuchs CPS.*
Control and Distribution Panels Ex de in Aluminum/Stainless Steel
- MPN
- CPS.*
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs CPS.*?

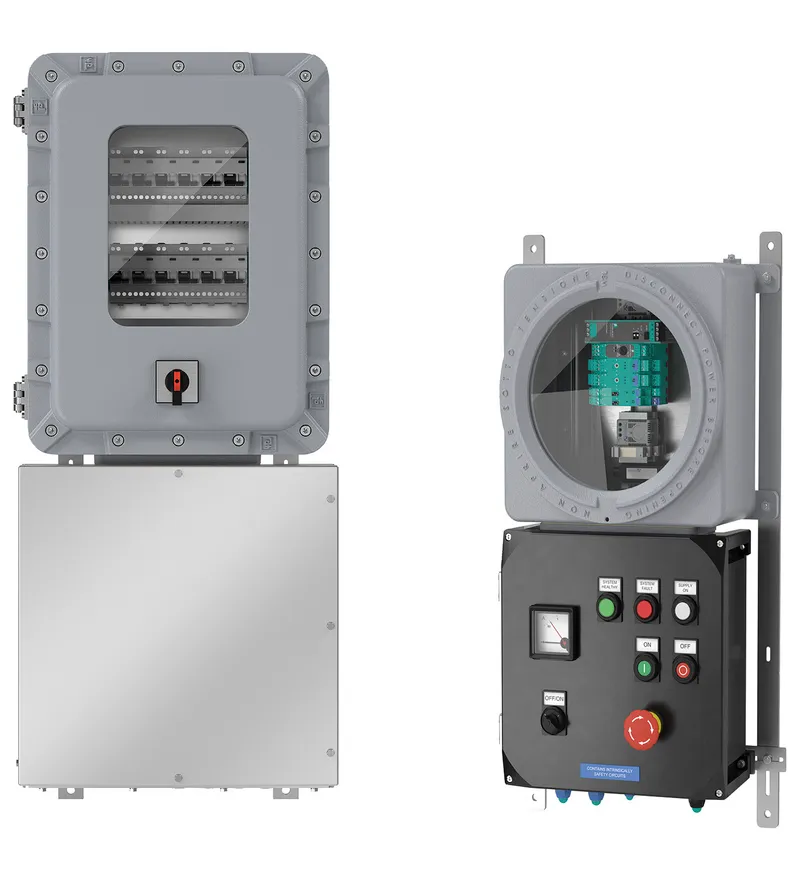

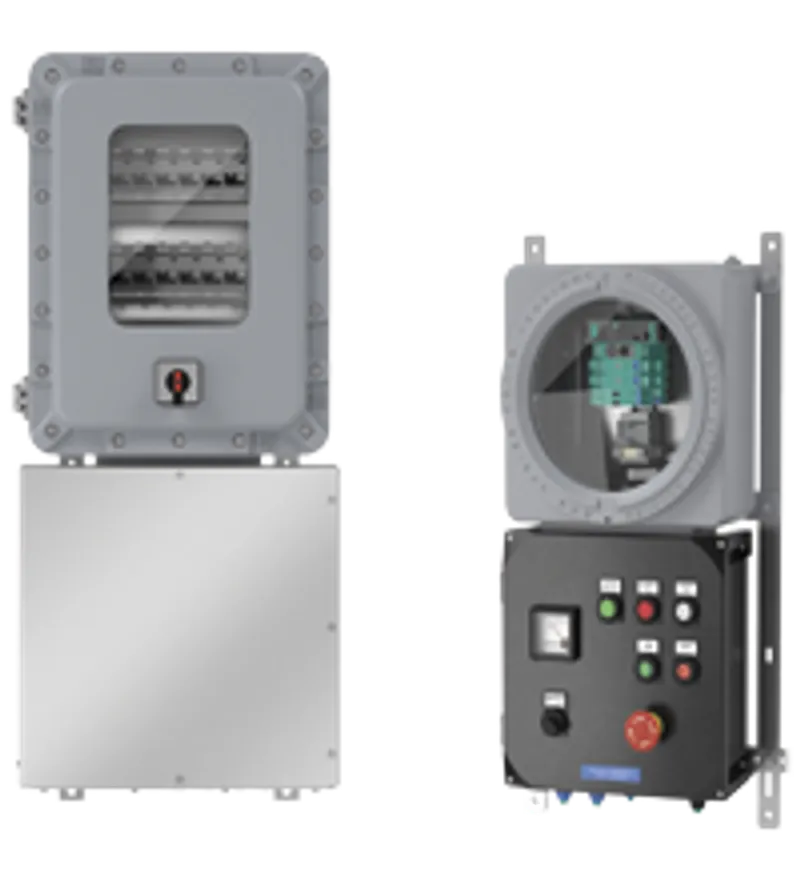

Aluminum and stainless steel enclosures
Ex de and Ex tb certified
Integration of electrical components and operating elements as per customer specification
Customizable configuration of operators, terminals and cable entries as per specification
Ex e enclosure can be positioned on any entry face of the Ex d enclosure
Various enclosure size and design variants
Image and drawing are generic for this device type and may deviate from the specific variant
Installation in Zone 1, Zone 2, Zone 21 and Zone 22
Choice of viewing windows for monitoring instruments
Aluminum and stainless steel enclosures, Ex de and Ex tb certified, Integration of electrical components and operating elements as per customer specification, Customizable configuration of operators, terminals and cable entries as per specification, Ex e enclosure can be positioned on any entry face of the Ex d enclosure, Various enclosure size and design variants, Image and drawing are generic for this device type and may deviate from the specific variant
Specifications
Electrical specifications
| Order code (Pepperl+Fuchs part number) | T217630 |
| Operating voltage | 1500 V DC / 1000 V AC max. |
| Operating current | 1600 A max. |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Mechanical specifications
| Enclosure range | Details of Ex d enclosure see datasheet EJB* / EJBX* / GUB* / GUBX* Details of Ex e enclosure see datasheet SR.T* / SR.CS / *FXLS*.T* / FXLS*.CS* / GR.T* / GR.CS* |
| Degree of protection | IP66 |
| Material: Enclosure | Ex d enclosure: aluminum alloy or AISI 316L stainless steel Ex e enclosure: AISI 316L stainless steel or GRP |
| Material: Glass | optional thermo-resistant tempered glass |
| Material: Finish | Ex d enclosure: epoxy coated RAL 7005 (grey) or shot peened Ex e enclosure: brushed or electropolished |
| Material: Seal | silicone |
| Mass | see data table valid for empty enclosure, will increase according to integrated components |
| Dimensions | see data table values might differ slightly due to casting and manufacturing tolerances |
| Mounting | see data table |
| Grounding | M10 internal/external brass grounding bolt through enclosure body |
Ambient conditions
| Ambient temperature | -50 ... 60 °C (-58 ... 140 °F) depending on integrated components |
Data for application in connection with hazardous areas
| EU-type examination certificate | see datasheets of relevant enclosures |
| Marking | II 2 GD EJB enclosures: Ex db IIB+H2 Gb, Ex tb IIIC Db GUB enclosures: Ex db IIC Gb, Ex tb IIIC Db SR.* / FXL.* / GR.* Termination and Control Stations: Ex eb IIC T6, T5, T4 Gb Ex db eb IIC T6, T5, T4 Gb Ex ib IIC T6, T5, T4 Gb Ex db eb ib IIC T6, T5, T4 Gb Ex tb IIIC T80 °C, T95 °C, T130 °C Db |
| Maximum power dissipation | see datasheets of relevant enclosures |
International approvals
| IECEx approval | see datasheets of relevant enclosures |
| UKCA approval | see datasheets of relevant enclosures |
| Further approvals | available on request |
Conformity
| Degree of protection | EN60529 |
| CE marking | 0080 or 0102, see type label |
General information
| Order information | This solution will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
