Pepperl Fuchs CFS.MOD.E3.CB01.K01.SP
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can CFS.MOD.E3.CB01.K01.SP be shipped?
CFS.MOD.E3.CB01.K01.SP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CFS.MOD.E3.CB01.K01.SP in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CFS.MOD.E3.CB01.K01.SP and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CFS.MOD.E3.CB01.K01.SP, subject to availability and destination.

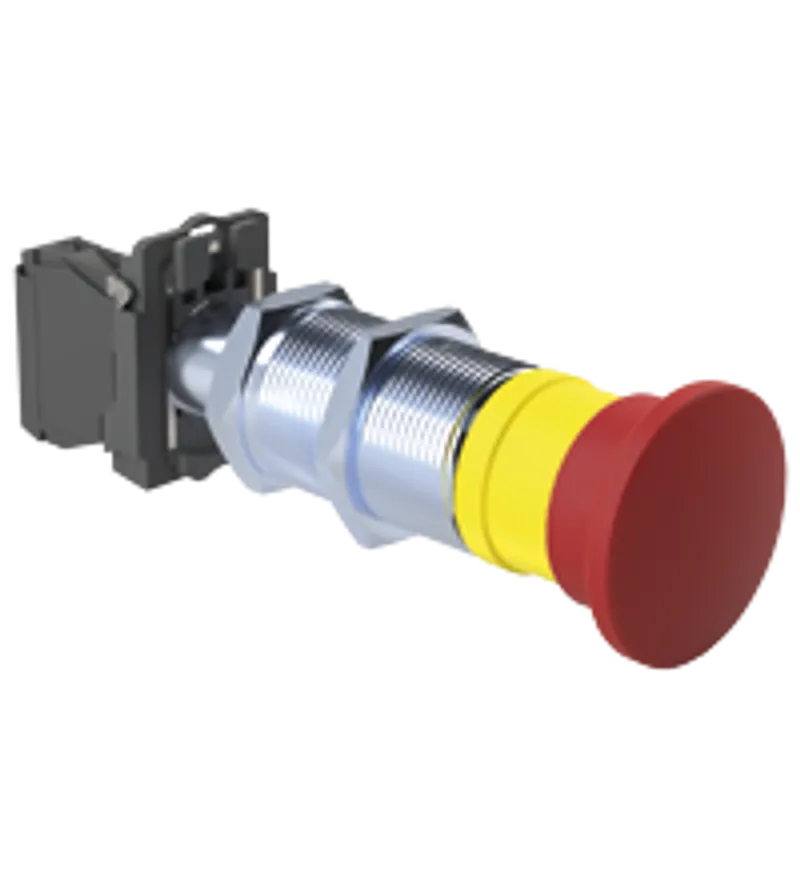

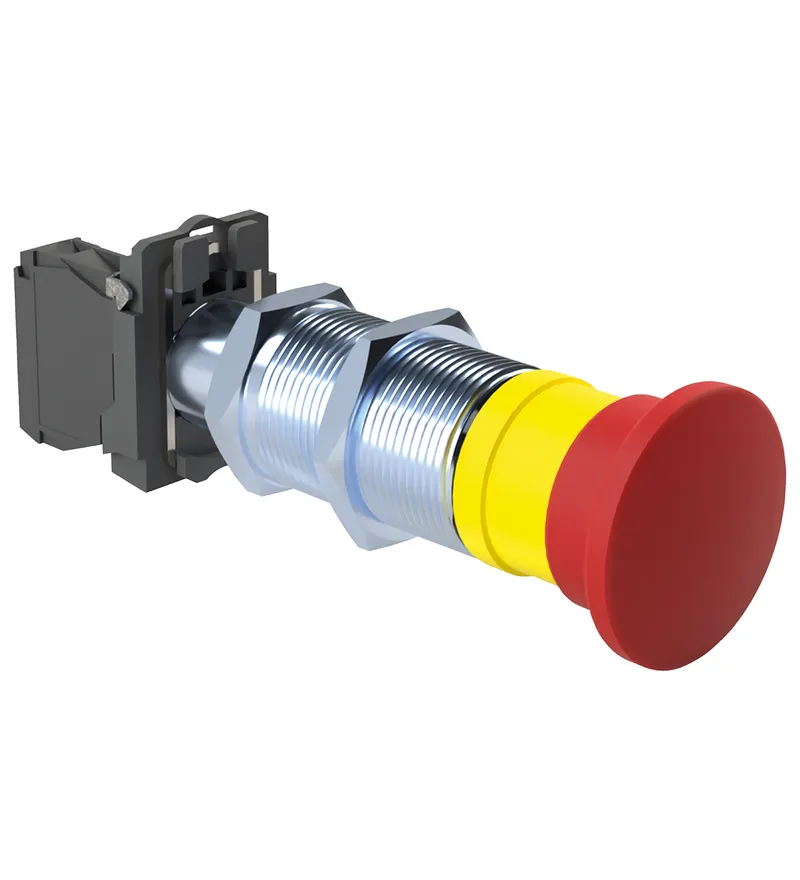

Actuator Head Assembly. Component for appropriately certified Ex d enclosures, Ex db and Ex tb certified, Polyamide and brass nickel-plated, Function: mushroom button with contact block, Housing: Polyamide (PA) , brass nickel-plated, Marking: [exsign] II 2 GD <BR>Ex db IIC Gb <BR>Ex tb IIIC Db. Operating voltage: 250 V max.. Operating current: 6 A max.. Terminal capacity: 2x 1.5 mm2. Terminal torque0.8 Nm: . Terminal torque: 0.8 Nm. Function: mushroom button with contact block. Contact configuration1x NC Usage categoryAC15: 12 ... 250 V AC - 1.2 A AC15: 12 ... 240 V AC - 3 A AC15: 12 ... 120 V AC - 6 A DC13: 12 ... 250 V DC - 0.27 A DC13: 12 ... 125 V DC - 0.55 ANumber of poles1Operator actionlatching , pull to releaseLabelingnone: . Contact configuration: 1x NC. Usage category: AC15: 12 ... 250 V AC - 1.2 A AC15: 12 ... 240 V AC - 3 A AC15: 12 ... 120 V AC - 6 A DC13: 12 ... 250 V DC - 0.27 A DC13: 12 ... 125 V DC - 0.55 A. Number of poles: 1. Operator action: latching , pull to release. Labeling: none. Thread size (TD): M28. Degree of protection: IP66. Material: . HousingPolyamide (PA) , brass nickel-platedFinishinherent color black: . Housing: Polyamide (PA) , brass nickel-plated. Finish: inherent color black. Mass: 137 g. Mechanical life: 10000000 switching operations. Dimensions: . Actuator head diameter (D2)38.8 mmPanel wall thickness (PT)10 ... 37.5 mmLength outside enclosure (H)34 mmTotal length (L)126 mm: . Actuator head diameter (D2): 38.8 mm. Panel wall thickness (PT): 10 ... 37.5 mm. Length outside enclosure (H): 34 mm. Total length (L): 126 mm. Tightening torque: 1.2 Nm. Mounting: use with lid-mounted contact modules. Service temperature: -40 ... 70 °C (-40 ... 158 °F). EU-type examination certificate: CML 17 ATEX 1341U. Marking II 2 GD Ex db IIC Gb Ex tb IIIC Db: . Marking: II 2 GD Ex db IIC Gb Ex tb IIIC Db. IECEx approval: IECEx CML 17.0181U. UKCA approval: CML 21 UKEX 1422U. Degree of protection: EN 60529. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.. Enclosure type: EJB , EJBX. Optional accessories: CFS.CB01.K50.SP CFS.CB10.K50.SP
Specifications
Electrical specifications
| Operating voltage | 250 V max. |
| Operating current | 6 A max. |
| Terminal capacity | 2x 1.5 mm2 |
| Terminal torque0.8 Nm | Terminal torque |
| Terminal torque | 0.8 Nm |
| Function | mushroom button with contact block |
| Contact configuration1x NC Usage categoryAC15: 12 ... 250 V AC - 1.2 A AC15: 12 ... 240 V AC - 3 A AC15: 12 ... 120 V AC - 6 A DC13: 12 ... 250 V DC - 0.27 A DC13: 12 ... 125 V DC - 0.55 ANumber of poles1Operator actionlatching , pull to releaseLabelingnone | Contact configuration |
| Contact configuration | 1x NC |
| Usage category | AC15: 12 ... 250 V AC - 1.2 A AC15: 12 ... 240 V AC - 3 A AC15: 12 ... 120 V AC - 6 A DC13: 12 ... 250 V DC - 0.27 A DC13: 12 ... 125 V DC - 0.55 A |
| Number of poles | 1 |
| Operator action | latching , pull to release |
| Labeling | none |
Mechanical specifications
| Thread size (TD) | M28 |
| Degree of protection | IP66 |
| Material | |
| HousingPolyamide (PA) , brass nickel-platedFinishinherent color black | Housing |
| Housing | Polyamide (PA) , brass nickel-plated |
| Finish | inherent color black |
| Mass | 137 g |
| Mechanical life | 10000000 switching operations |

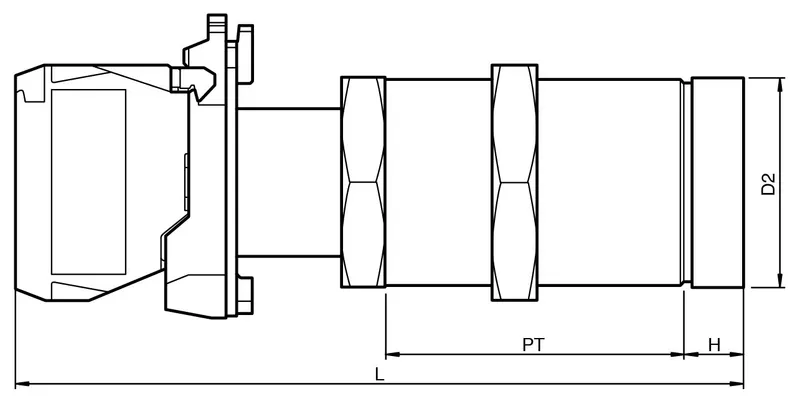

| Dimensions | |
| Actuator head diameter (D2)38.8 mmPanel wall thickness (PT)10 ... 37.5 mmLength outside enclosure (H)34 mmTotal length (L)126 mm | Actuator head diameter (D2) |
| Actuator head diameter (D2) | 38.8 mm |
| Panel wall thickness (PT) | 10 ... 37.5 mm |
| Length outside enclosure (H) | 34 mm |
| Total length (L) | 126 mm |
| Tightening torque | 1.2 Nm |
| Mounting | use with lid-mounted contact modules |
Ambient conditions
| Service temperature | -40 ... 70 °C (-40 ... 158 °F) |
Data for application in connection with hazardous areas
| EU-type examination certificate | CML 17 ATEX 1341U |
| Marking II 2 GD Ex db IIC Gb Ex tb IIIC Db | Marking |
| Marking | II 2 GD Ex db IIC Gb Ex tb IIIC Db |
International approvals
| IECEx approval | IECEx CML 17.0181U |
| UKCA approval | CML 21 UKEX 1422U |
Conformity
| Degree of protection | EN 60529 |
General information
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
| Enclosure type | EJB , EJBX |
Accessories
| Optional accessories | CFS.CB01.K50.SP CFS.CB10.K50.SP |
