Pepperl Fuchs CAB-FBM-**-S37S37-**-****
H-System Custom Cable
- MPN
- CAB-FBM-**-S37S37-**-****
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via

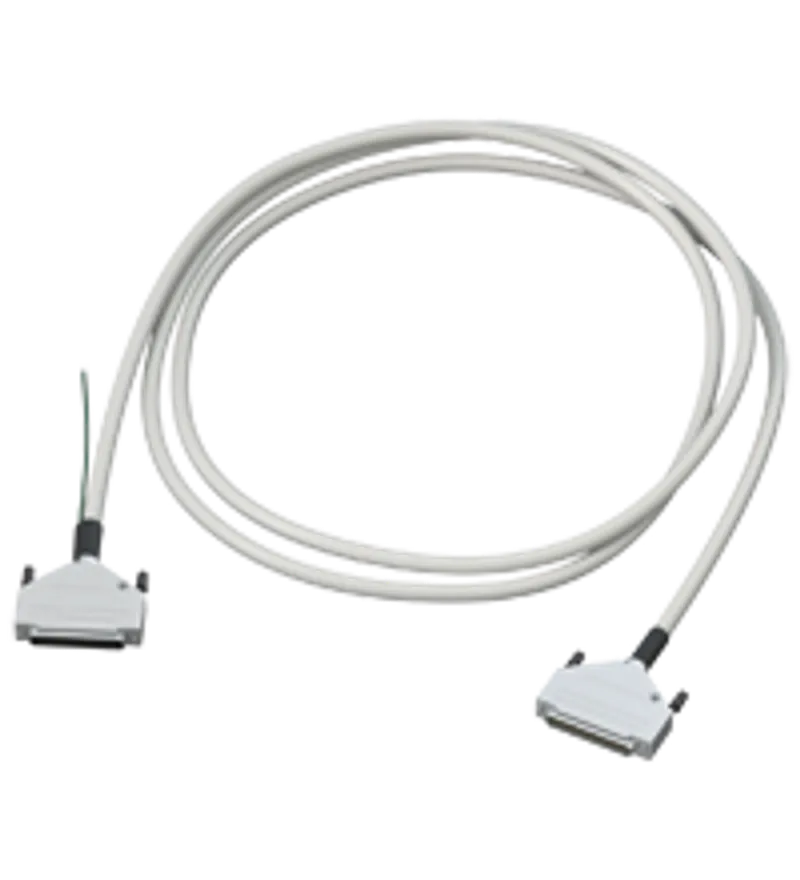

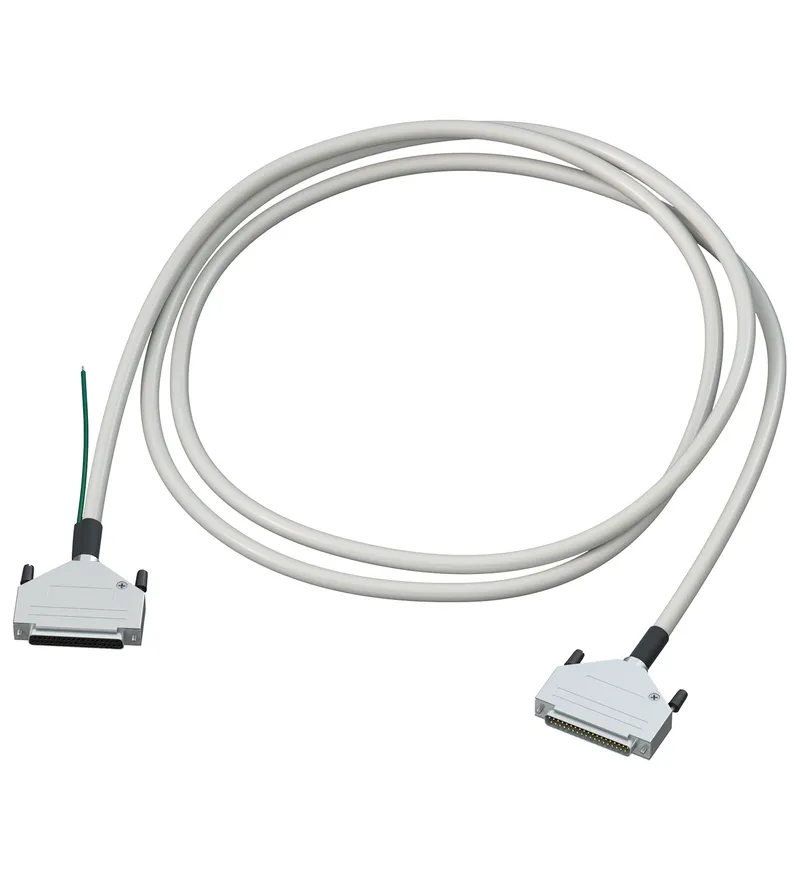

What is the Pepperl Fuchs CAB-FBM-**-S37S37-**-****?
Schneider specific system cable for Foxboro FBM series to Pepperl+Fuchs H-System termination boards
Connect the 37-pin Sub-D socket(s) on the Foxboro baseplates to the 37-pin Sub-D connector(s) on the H-System termination board
Preconfigured lengths
Schneider specific system cable for Foxboro FBM series to Pepperl+Fuchs H-System termination boards, Connect the 37-pin Sub-D socket(s) on the Foxboro baseplates to the 37-pin Sub-D connector(s) on the H-System termination board, Preconfigured lengths
Specifications
Electrical specifications
| Order code (Pepperl+Fuchs part number) | T173021 |
| Rated voltage | 30 V Ur |
| Rated current | max. 1 A Ir |
| Lead resistance | < 70 mΩ / m |
| Cable capacitance | wire/wire: approx. 120 pF /m wire/shield: approx. 160 pF /m |
| Cable inductance | approx. 0.5 µH /m or approx. 0.65 mH /m |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Standard conformity
| Flammability | IEC 60332-1-2 , flame-resistant |
Ambient conditions
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) , fixed installation |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
Mechanical specifications
| Connection | Sub-D socket , 37-pin Sub-D connector , 37-pin |
| Material: Socket | Sub-D socket : Zinc die cast, nickel plated |
| Material: Connector | Sub-D connector: Zinc die cast, nickel plated |
| Material: Sheathing | PVC |
| Material: Core insulation | PVC |
| Cable | LiYCY |
| Diameter | 18 cores: 7.3 mm or 10.2 mm (0.40 inch) 20 x 2 cores: 11.3 mm (0.44 inch) 36 cores: 13.4 mm (0.53 inch) |
| Bending radius | min. 6 x external diameter, fixed installation |
| Color | grey |
| Cores | 18 x 0.14 mm2 18 x 0.34 mm2 20 x 2 x 0.14 mm2 36 x 0.34 mm2 |
| Conductor construction | stranded wire , fine-strand |
| Shield | tinned copper braiding |
| Mass | approx. 300 g + 104 g / m (18 x 0.14 mm2) approx. 300 g + 173 g / m (18 x 0.34 mm2) approx. 300 g + 184 g / m (20 x 2 x 0.14 mm2) approx. 375 g + 331 g / m (36 x 0.34 mm2) |
| Cable length | see type code |
