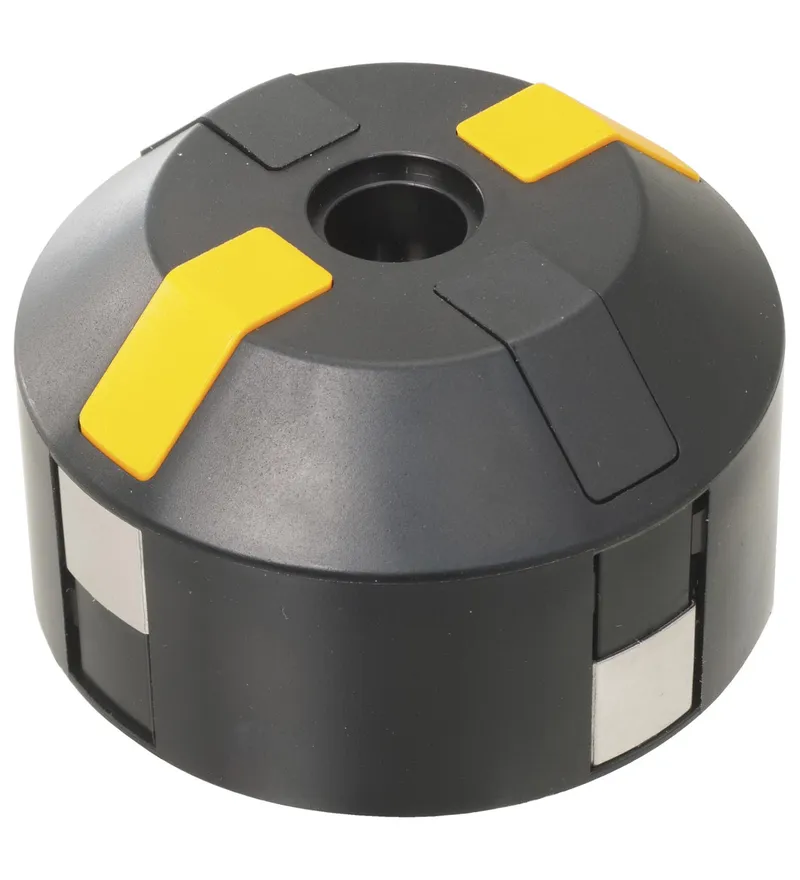

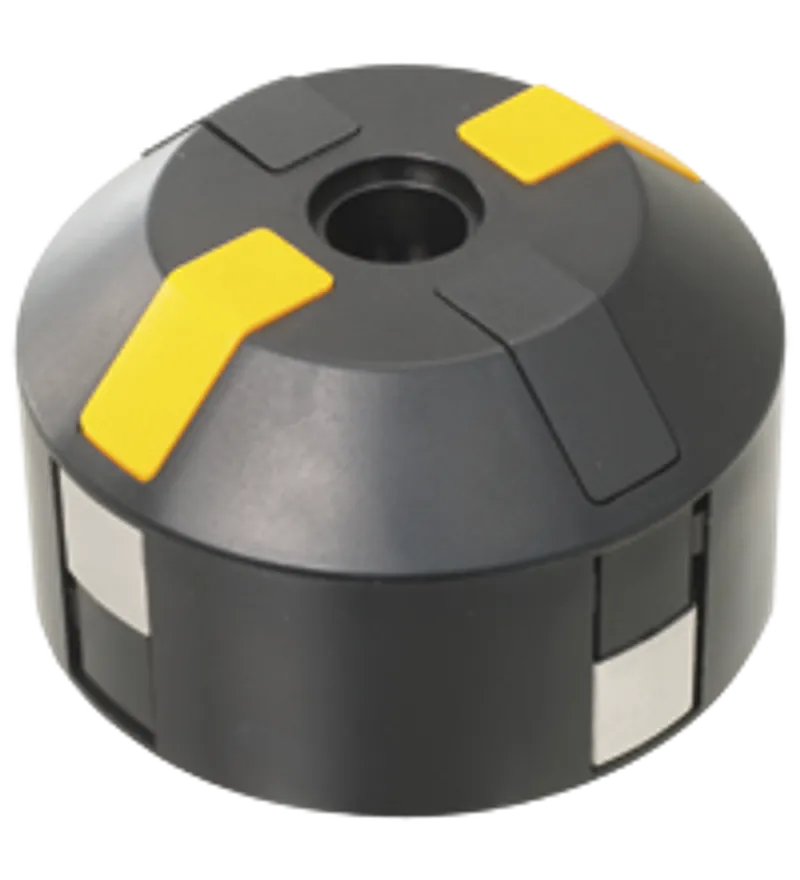

Pepperl Fuchs BT65U
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can BT65U be shipped?
BT65U is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BT65U in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BT65U and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BT65U, subject to availability and destination.
Activator. Ring diameter: max. 65 mm. Spring ring height: max. 6 mm. Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Shaft diameter: < 58 mm. Shaft height: 20 mm and 30 mm. Mounting hole pattern: 30 x 80 mm. Material: . HousingMounting component: PASpacer diskPA (1 unit, 10 mm strong)Stopper capPE (1 unit black)Identification stopperPA (3 pcs. yellow, 3 pcs. black)Mounting screwfor activator: 1.4305 / AISI 303 (V2A) (1 piece M6 x 25), (1 piece M6 x 16) for sensors - F31: 1.4305 / AISI 303 (2 pieces M5 x 16) (2 pieces M5 x 12)Activation targetStainless steel 1.4305 / AISI 303 (integrated): . Housing: Mounting component: PA. Spacer disk: PA (1 unit, 10 mm strong). Stopper cap: PE (1 unit black). Identification stopper: PA (3 pcs. yellow, 3 pcs. black). Mounting screw: for activator: 1.4305 / AISI 303 (V2A) (1 piece M6 x 25), (1 piece M6 x 16) for sensors - F31: 1.4305 / AISI 303 (2 pieces M5 x 16) (2 pieces M5 x 12). Activation target: Stainless steel 1.4305 / AISI 303 (integrated). Mass: 40 g. Dimensions: . Height38.5 mmDiameter65 mm: . Height: 38.5 mm. Diameter: 65 mm
Specifications
General specifications
| Ring diameter | max. 65 mm |
| Spring ring height | max. 6 mm |
Ambient conditions
| Ambient temperature | -40 ... 85 °C (-40 ... 185 °F) |
Mechanical specifications
| Shaft diameter | < 58 mm |
| Shaft height | 20 mm and 30 mm |
| Mounting hole pattern | 30 x 80 mm |
| Material | |
| HousingMounting component: PASpacer diskPA (1 unit, 10 mm strong)Stopper capPE (1 unit black)Identification stopperPA (3 pcs. yellow, 3 pcs. black)Mounting screwfor activator: 1.4305 / AISI 303 (V2A) (1 piece M6 x 25), (1 piece M6 x 16) for sensors - F31: 1.4305 / AISI 303 (2 pieces M5 x 16) (2 pieces M5 x 12)Activation targetStainless steel 1.4305 / AISI 303 (integrated) | Housing |
| Housing | Mounting component: PA |
| Spacer disk | PA (1 unit, 10 mm strong) |
| Stopper cap | PE (1 unit black) |
| Identification stopper | PA (3 pcs. yellow, 3 pcs. black) |
| Mounting screw | for activator: 1.4305 / AISI 303 (V2A) (1 piece M6 x 25), (1 piece M6 x 16) for sensors - F31: 1.4305 / AISI 303 (2 pieces M5 x 16) (2 pieces M5 x 12) |
| Activation target | Stainless steel 1.4305 / AISI 303 (integrated) |
| Mass | 40 g |

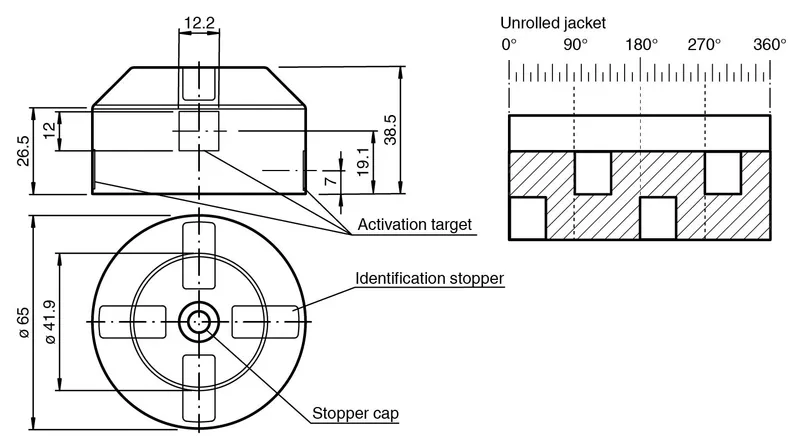

| Dimensions | |
| Height38.5 mmDiameter65 mm | Height |
| Height | 38.5 mm |
| Diameter | 65 mm |
