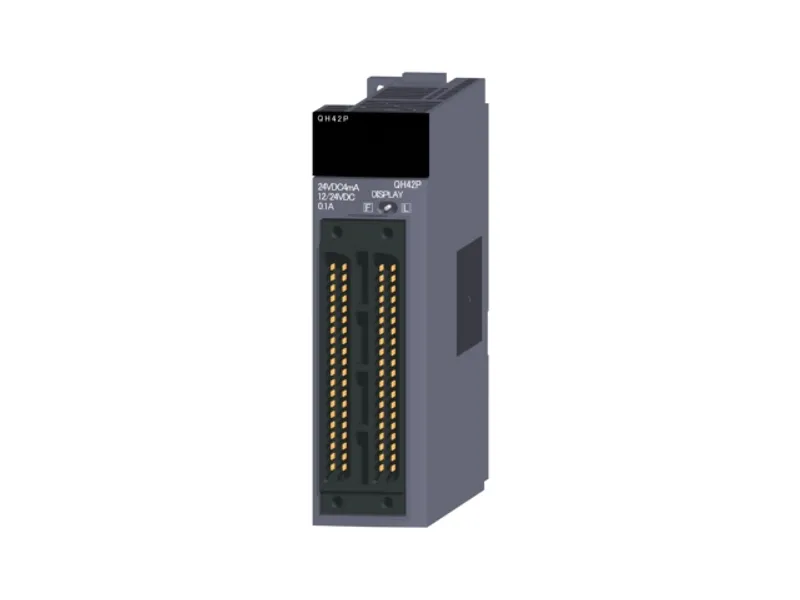

Mitsubishi Electric QH42P
Mitsubishi MELSEC-Q Series I/O
- MPN
- QH42P
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →
What is the Mitsubishi Electric QH42P?
The Mitsubishi Electric QH42P is a I/O in the MELSEC-Q Series. DC input: 32 points, 24 V DC, 4 mA, response time: 1/5/10/20/70 ms, 32 points/common, positive common type, transistor output: 32 points, 12...24 V DC, 0.1 A/point, 2 A/common, response time: 1 ms, 32 points/common, sink type, 40-pin connector x 2, number of occupied I/O points: 32 points. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC-Q Series |
| Category | I/O |
| Type | DC input (positive common)/transistor output (sink) |
| Sales status | 2029/09 To be end of order (Mitsubishi Electric) |
| Outline | DC input: 32 points, 24 V DC, 4 mA, response time: 1/5/10/20/70 ms, 32 points/common, positive common type, transistor output: 32 points, 12...24 V DC, 0.1 A/point, 2 A/common, response time: 1 ms, 32 points/common, sink type, 40-pin connector x 2, number of occupied I/O points: 32 points |
Input specifications
| Input type | DC input (positive common type) |
| Number of input points | 32 points |
| Rated input voltage | 24 V DC (+20/-15 %, ripple ratio within 5 %) |
| Rated input current | Approx. 4 mA |
| ON voltage/ON current | 19 V or more/3 mA or more |
| OFF voltage/OFF current | 11 V or less/1.7 mA or less |
| Input resistance | Approx. 5.6 kΩ |
| Input response time: OFF to ON | 1 ms, 5 ms, 10 ms, 20 ms, 70 ms or less |
| Input response time: ON to OFF | 1 ms, 5 ms, 10 ms, 20 ms, 70 ms or less |
| Input common terminal arrangement | 32 points/common |
Output specifications
| Output type | Transistor output (sink type) |
| Number of output points | 32 points |
| Rated load voltage | 12...24 V DC (+20/-15 %) |
| Maximum load current | 0.1 A/point, 2 A/common |
| Maximum inrush current | 0.7 A, 10 ms or less |
| Leakage current at OFF | 0.1 mA or less |
| Maximum voltage drop at ON | 0.1 V DC (TYP.) 0.1 A, 0.2 V DC (MAX.) 0.1 A |
| Output response time: OFF to ON | 1 ms or less |
| Output response time: ON to OFF | 1 ms or less (rated load, resistive load) |
| Surge suppressor | Zener diode |
| Fuse | None |
| Protection function: Overheat protection function | Available |
| Protection function: Overload protection function | Available |
| External power supply: Voltage | 12...24 V DC (+20/-15 %) (ripple ratio within 5 %) |
| External power supply: Current | Maximum 15 mA/common (at 24 V DC and all points ON) |
| Output common terminal arrangement | 32 points/common |
Common specifications
| Isolation method | Photocoupler |
| Dielectric withstand voltage | 560 V AC rms/3 cycles (altitude 2000 m) |
| Insulation resistance | 10 MΩ or higher by insulation resistance tester |
| Protection degree | IP2X |
| Operation indication | ON indication (LED), 32 point switch-over using switch |
| External interface | 40-pin connector × 2 |
| External interface: Applicable connector | A6CON1, A6CON2, A6CON3, A6CON4 (sold separately) |
| Number of occupied I/O points | 32 points (I/O assignment: I/O combined 32 points) |
| Internal current consumption (5 V DC) | 130 mA (TYP. all points ON) |
| External dimensions: Height | 98 mm |
| External dimensions: Width | 27.4 mm |
| External dimensions: Depth | 90 mm |
| Weight | 0.20 kg |
Specifications
| General specifications | Refer to the general specifications of the CPU module. |
