Mitsubishi Electric Q62DA
Mitsubishi MELSEC-Q Series Analog output
- MPN
- Q62DA
Price and lead time confirmed within 1 business day
Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original Q62DA (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →
What is the Mitsubishi Electric Q62DA?
The Mitsubishi Electric Q62DA is a analog output in the MELSEC-Q Series. 2 channels, input (resolution): 0...4000, -4000...4000, 0...12000, -12000...12000, -16000...16000, output: -10...10 V DC, 0...20 mA DC, conversion speed: 80 μs/channel, 18-point terminal block. Mitsubishi Electric has discontinued it (2007/12 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC-Q Series |
| Category | Analog output |
| Type | Voltage/current output |
| Sales status | 2007/12 Discontinued (Mitsubishi Electric) |
| Outline | 2 channels, input (resolution): 0...4000, -4000...4000, 0...12000, -12000...12000, -16000...16000, output: -10...10 V DC, 0...20 mA DC, conversion speed: 80 μs/channel, 18-point terminal block |
Output specifications
| Number of analog output points | 2 points (2 channels) |
| Digital input | Normal resolution mode: -4096...+4095 High resolution mode: -12288...+12287, -16384...+16383 |
| Analog output: Voltage | -10...+10 V DC (external load resistance 1 kΩ...1 MΩ) |
| Analog output: Current | 0...20 mA DC (external load resistance 0...600 Ω) When the voltage of the external power supply is 22.85...28.8 V DC |
| I/O characteristics, resolution: Output range | Digital input value (maximum resolution) |
| I/O characteristics, resolution: Voltage output: 0...5 V | Normal resolution mode: 0...4000 (1.25 mV) High resolution mode: 0...12000 (0.416 mV) |
| I/O characteristics, resolution: Voltage output: 1...5 V | Normal resolution mode: 0...4000 (1.0 mV) High resolution mode: 0...12000 (0.333 mV) |
| I/O characteristics, resolution: Voltage output: -10...10 V | Normal resolution mode: -4000...4000 (2.5 mV) High resolution mode: -16000...16000 (0.625 mV) |
| I/O characteristics, resolution: Voltage output: User range setting | Normal resolution mode: -4000...4000 (0.75 mV) High resolution mode: -12000...12000 (0.333 mV) |
| I/O characteristics, resolution: Current output: 0...20 mA | Normal resolution mode: 0...4000 (5 µA) High resolution mode: 0...12000 (1.66 µA) |
| I/O characteristics, resolution: Current output: 4...20 mA | Normal resolution mode: 0...4000 (4 µA) High resolution mode: 0...12000 (1.33 µA) |
| I/O characteristics, resolution: Current output: User range setting | Normal resolution mode: -4000...4000 (1.5 µA) High resolution mode: -12000...12000 (0.83 µA) |
| Accuracy (accuracy relative to maximum value of analog output value): Ambient temperature: 25±5 ﾟC | Within ±0.1 % |
| Accuracy (accuracy relative to maximum value of analog output value): Ambient temperature: 0...55 ﾟC | Within ±0.3 % |
| D/A conversion speed | 80 µs/channel |
| Absolute maximum output: Voltage | ±12 V |
| Absolute maximum output: Current | 21 mA |
| Output short protection | Protected |
Common specifications
| Isolation method | Between I/O terminals and programmable controller power supply: Photocoupler Between analog output channels: Non-isolation Between external power supply and analog output: Non-isolation |
| Dielectric withstand voltage | Between I/O terminals and programmable controller power supply: 500 V AC for 1 minute |
| Insulation resistance | Between I/O terminals and programmable controller power supply: 500 V DC 20 MΩ or higher |
| External power supply: Voltage | 24 V DC (+20/-15 %, ripple, spike 500 mVp-p or lower) |
| External power supply: Current | 0.12 A (inrush current: 1.9 A, 300 µs or lower) |
| External interface | 18-point terminal block (M3 screw) |
| Number of occupied I/O points | 16 points (I/O assignment: Intelligent 16 points) |
| Internal current consumption (5 V DC) | 0.33 A |
| External dimensions: Height | 98 mm |
| External dimensions: Width | 27.4 mm |
| External dimensions: Depth | 90 mm |
| Weight | 0.19 kg |
Specifications
| General specifications | Refer to the general specifications of the CPU module. |
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Q62DA: frequently asked questions
Can I still buy the Q62DA now that it is discontinued?
Yes. Mitsubishi Electric (Factory Automation) has discontinued the Q62DA, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Mitsubishi Electric (Factory Automation) names the Q68DAI as its successor — we can quote both.
When can Q62DA be shipped?
Q62DA is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up Q62DA in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for Q62DA and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q62DA, subject to availability and destination.

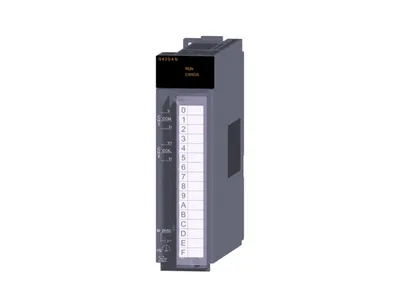

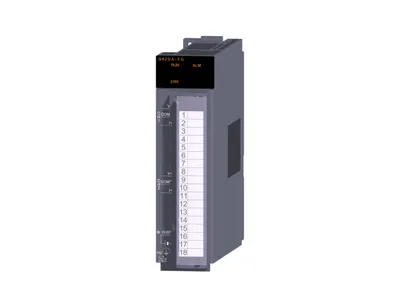

More Mitsubishi Electric (Factory Automation) parts
