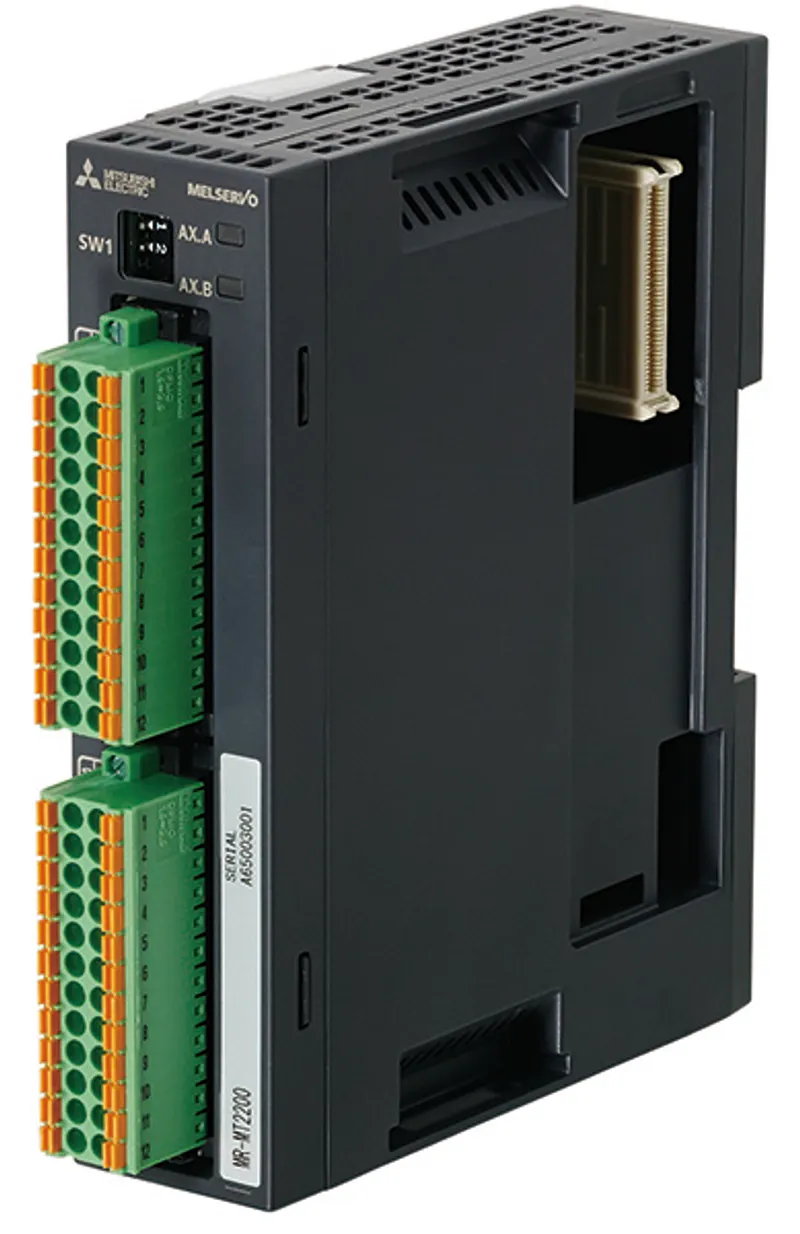

Mitsubishi Electric MR-MT2200

Mitsubishi Motion controller Network-related products

MPN: MR-MT2200
Category: Mitsubishi Motion controller – Network Related Products

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric MR-MT2200?

The Mitsubishi Electric MR-MT2200 is a network-related products in the Motion controller. Pulse I/O module. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	Motion controller
Category	Network-related products
Type	Sensing module
Outline	Pulse I/O module

Specifications

Number of pulse I/O channels	Output 2CH, input 2CH, I/O 1CH each (selectable)
Pulse output: Output signals	Differential line driver output/open-collector output
Pulse output: Output form	Forward/reverse rotation pulse train, signed pulse train, A-phase/B-phase pulse train
Pulse output: Maximum frequency: Differential line driver output	4 M pulse/s (A-phase/B-phase pulse train 4 multiples) 1 M pulse/s (forward/reverse rotation pulse train, signed pulse train)
Pulse output: Maximum frequency: Open-collector output	200 k pulse/s (A-phase/B-phase pulse train 4 multiples) 50 k pulse/s (forward/reverse rotation pulse train, signed pulse train)
Pulse input: Input signals	Differential line driver input
Pulse input: Input form	Forward/reverse rotation pulse train, signed pulse train, A-phase/B-phase pulse train
Pulse input: Maximum frequency: Differential line driver input	4 M pulse/s (A-phase/B-phase pulse train 4 multiples) 1 M pulse/s (forward/reverse rotation pulse train, signed pulse train)
DI: Number of input points	7 points per axis (14 points in total)
DI: Input form	Sink input/source input (photocoupler isolation)
DO: Output form	Sink output/source output (photocoupler isolation)
Mass [kg]	0.2
