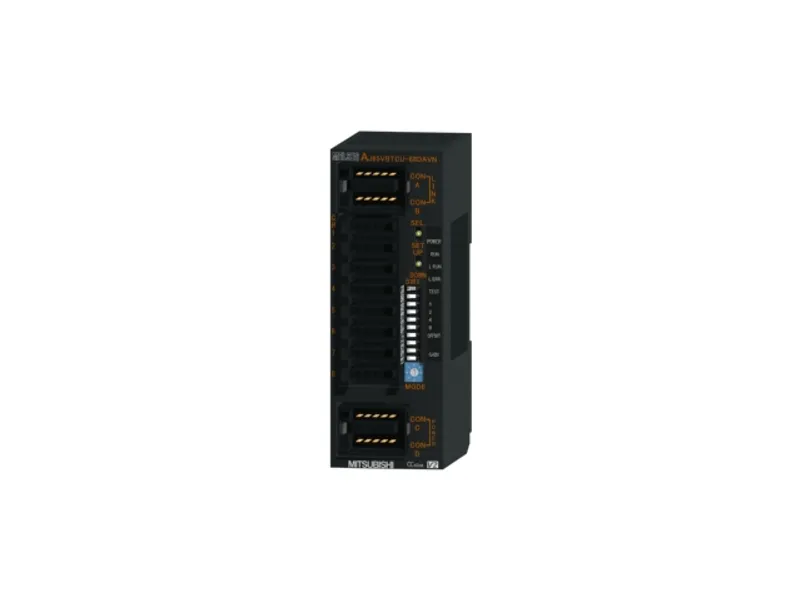

Mitsubishi Electric AJ65VBTCU-68DAVN
Mitsubishi MELSEC network modules Remote I/O
- MPN
- AJ65VBTCU-68DAVN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →
What is the Mitsubishi Electric AJ65VBTCU-68DAVN?
The Mitsubishi Electric AJ65VBTCU-68DAVN is a remote I/O in the MELSEC network modules. 8 channels, input (resolution): 0...4000, -4000...4000, output: -10...10 V DC, conversion speed: 1ms/channel, one-touch connector type, number of occupied stations: 1 station (Ver.2)/3 stations (Ver.1). Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC network modules |
| Category | Remote I/O |
| Type | Analog I/O |
| Subtype | Analog output |
| Outline | 8 channels, input (resolution): 0...4000, -4000...4000, output: -10...10 V DC, conversion speed: 1ms/channel, one-touch connector type, number of occupied stations: 1 station (Ver.2)/3 stations (Ver.1) |
Specifications
| Number of analog output points | 8 points (8 channels) |
| Digital input | -4096...+4095 |
| Analog output: Voltage | -10...+10 V DC (external load resistance 2 kΩ...1 MΩ) |
| I/O characteristics, resolution: Output range | Digital input value (maximum resolution) |
| I/O characteristics, resolution: Voltage output: 0...5 V | 0...4000 (1.25 mV) |
| I/O characteristics, resolution: Voltage output: 1...5 V | 0...4000 (1 mV) |
| I/O characteristics, resolution: Voltage output: -10...10 V | -4000...4000 (2.5 mV) |
| I/O characteristics, resolution: Voltage output: User range setting 1 (-10...10 V) | -4000...4000 (2.5 mV) |
| I/O characteristics, resolution: Voltage output: User range setting 2 (0...5 V) | 0...4000 (1 mV) |
| Accuracy (accuracy relative to maximum value of analog output value): Ambient temperature: 25±5 ﾟC | ±0.2 % |
| Accuracy (accuracy relative to maximum value of analog output value): Ambient temperature: 0...55 ﾟC | ±0.3 % |
| D/A conversion speed | 1 ms/channel |
| Absolute maximum output: Voltage | ±12 V |
| Output short protection | Protected |
| Isolation method | Between communication system terminals and analog outputs: Photocoupler Between power supply system terminals and analog outputs: Photocoupler Between channels: Non-isolation |
| Dielectric withstand voltage | Between all power supply and communication system terminals and all analog output terminals: 500 V AC for 1 minute |
| Protection degree | IP1XB |
| Station type | Remote device station (Ver. 1 remote device station or Ver. 2 remote device station) |
| Number of occupied stations | When Ver. 1 remote device station is set: 3 stations When Ver. 2 remote device station is set: 1 station (expanded cyclic setting: 4 times) |
| Module power supply: Voltage | 24 V DC (20.4...26.4 V DC, ripple ratio: within 5 %) |
| Module power supply: Current | 0.15 A (at 24 V DC) |
| Module power supply: Inrush current | 6.1 A, 1.2 ms or less |
| External interface | Communication part: One-touch connector for communication (sold separately) Module power supply part: One-touch connector for power supply and FG (sold separately) I/O part: One-touch connector for I/O (sold separately) |
| Communication cable | Ver.1.10 compatible CC-Link dedicated cable: FANC-110SBH, FA-CBL200PSBH, CS-110 |
| External dimensions: Height | 115 mm |
| External dimensions: Width | 41 mm |
| External dimensions: Depth | 67 mm |
| Weight | 0.16 kg |
Specifications
| Operating ambient temperature | 0...55 ˚C |
| Storage ambient temperature | -20...75 ˚C |
| Operating ambient humidity | 10...90 %RH, non-condensing |
| Storage ambient humidity | 10...90 %RH, non-condensing |
| Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibration | Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions |
| Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibration | Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2 |
| Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011 | Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks) |
| Operating atmosphere | No corrosive gases |
| Operating altitude | 0...2000 m |
| Installation location | Inside a control panel |
| Overvoltage category | II or less |
| Pollution degree | 2 or less |
