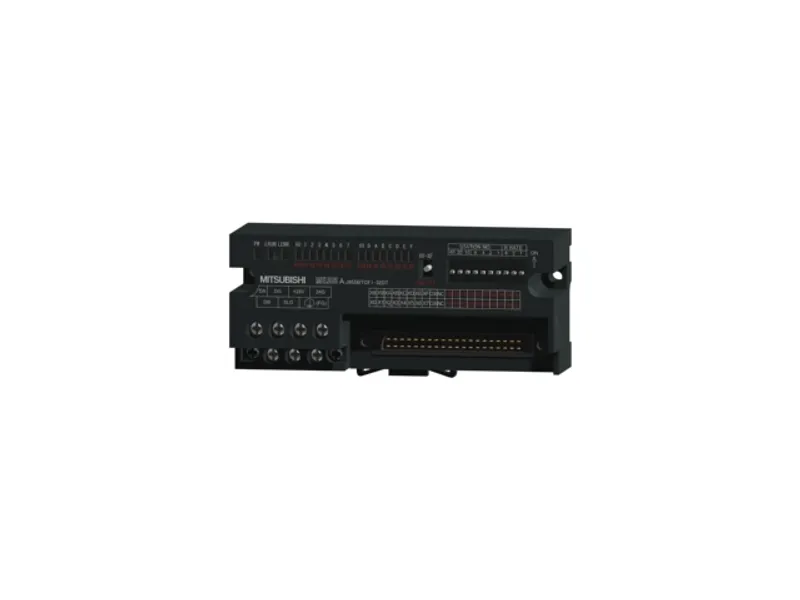

Mitsubishi Electric AJ65SBTCF1-32DT

Mitsubishi MELSEC network modules Remote I/O

MPN: AJ65SBTCF1-32DT
Category: Mitsubishi MELSEC I/OLINK, MELSECNET & A-Series Network Modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric AJ65SBTCF1-32DT?

The Mitsubishi Electric AJ65SBTCF1-32DT is a remote I/O in the MELSEC network modules. DC input: 16 points, 24 V DC, 5 mA, response time: 1.5 ms, positive/negative common type, 1-wire, transistor output: 16 points, 12/24 V DC, 0.1 A/point, 1.6 A/common, response time: 1.5 ms, 16 points/common, sink type, 1-wire, FCN connector type (40-pin connector), number of occupied stations: 1 station. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Remote I/O
Type	I/O
Subtype	I/O
Outline	DC input: 16 points, 24 V DC, 5 mA, response time: 1.5 ms, positive/negative common type, 1-wire, transistor output: 16 points, 12/24 V DC, 0.1 A/point, 1.6 A/common, response time: 1.5 ms, 16 points/common, sink type, 1-wire, FCN connector type (40-pin connector), number of occupied stations: 1 station

Input specifications

Input type	DC input (positive/negative shared common type)
Number of input points	16 points
Rated input voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 19.2...26.4 V DC)
Rated input current	Approx. 5 mA
Maximum number of simultaneous input points	100 %
ON voltage/ON current	14 V or more/3.5 mA or more
OFF voltage/OFF current	6 V or less/1.7 mA or less
Input resistance	Approx. 4.7 kΩ
Input response time: OFF to ON	1.5 ms or less (24 V DC)
Input response time: ON to OFF	1.5 ms or less (24 V DC)
Input common terminal arrangement	16 points/common (1-wire, FCN connector type)
Input isolation method	Photocoupler

Output specifications

Output type	Transistor output (sink type)
Number of output points	16 points
Rated load voltage	12/24 V DC
Operating load voltage range	10.2...26.4 V DC (ripple ratio: within 5 %)
Maximum load current	0.1 A/point, 1.6 A/common
Maximum inrush current	1.0 A, 10 ms or less
Leakage current at OFF	0.1 mA or less
Maximum voltage drop at ON	0.1 V DC or less (TYP.) 0.1 A, 0.2 V DC or less (MAX.) 0.1 A
Output response time: OFF to ON	0.5 ms or less
Output response time: ON to OFF	1.5 ms or less (resistive load)
Surge suppressor	Zener diode
Protection function	Overload protection, overvoltage protection, overheat protection
External power supply for output part: Voltage	10.2...26.4 V DC (ripple ratio: within 5 %)
External power supply for output part: Current	30 mA or less (at 24 V DC and all points ON), excluding external load current
Output common terminal arrangement	16 points/common (1-wire, FCN connector type)
Output isolation method	Photocoupler

Common specifications

Dielectric withstand voltage	Between all DC external terminals and ground: 500 V AC for 1 minute
Insulation resistance	Between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Protection degree	IP2X
Station type	Remote I/O station
Number of occupied stations	1 station
Module power supply: Voltage	20.4...26.4 V DC (ripple ratio: within 5 %)
Module power supply: Current	50 mA or less (at 24 V DC, all points ON)
External interface	Communication part, module power supply part: 7-point two-piece terminal block (M3 screw) I/O power supply part, I/O part: 40-pin connector (sold separately)
External interface: Applicable connector	A6CON1, A6CON2, A6CON3, A6CON4 (sold separately)
External dimensions: Height	50 mm
External dimensions: Width	118 mm
External dimensions: Depth	40 mm
Weight	0.15 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-20...75 ˚C
Operating ambient humidity	10...90 %RH, non-condensing
Storage ambient humidity	10...90 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011	Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
