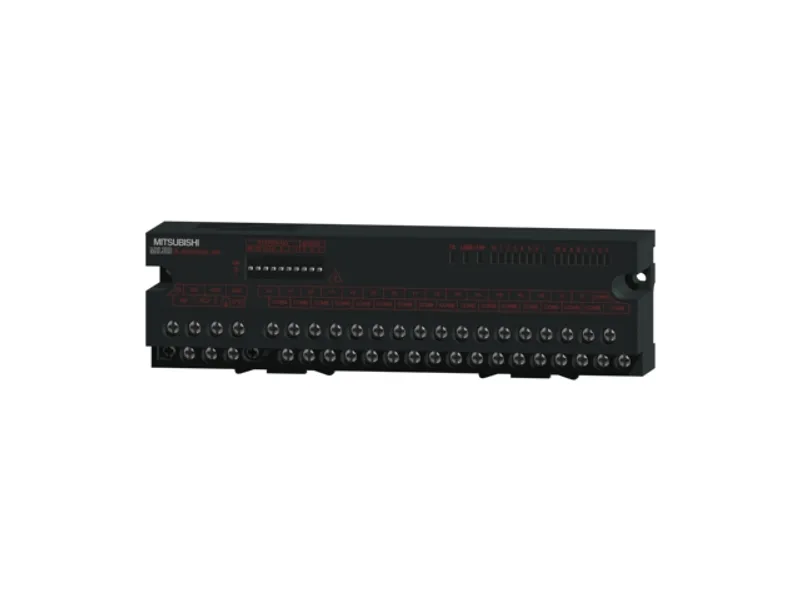

Mitsubishi Electric AJ65SBTB2N-16R

Mitsubishi MELSEC network modules Remote I/O

MPN: AJ65SBTB2N-16R
Category: Mitsubishi MELSEC I/OLINK, MELSECNET & A-Series Network Modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric AJ65SBTB2N-16R?

The Mitsubishi Electric AJ65SBTB2N-16R is a remote I/O in the MELSEC network modules. Contact output: 16 points, 24 V DC/240 V AC, 2 A/point, 8 A/common, response time: 12 ms, 16 points/common, 2-wire terminal block type, number of occupied stations: 1 station. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Remote I/O
Type	I/O
Subtype	Output
Outline	Contact output: 16 points, 24 V DC/240 V AC, 2 A/point, 8 A/common, response time: 12 ms, 16 points/common, 2-wire terminal block type, number of occupied stations: 1 station

Output specifications

Number of output points	16 points
Rated switching voltage, current	24 V DC 2 A (resistive load)/point, 240 V AC 2 A (cosø=1)/point, 8 A/common
Minimum switching load	5 V DC, 1 mA
Maximum switching voltage	264 V AC, 125 V DC
Life: Mechanical	20 million times or more
Life: Electrical	Rated switching voltage/current load: More than 100 thousand times 200 V AC 1.5 A, 240 V AC 1 A (COSø=0.7): 100 thousand times 200 V AC 1 A, 240 V AC 0.5 A (COSø=0.35): 100 thousand times 24 V DC 1 A, 100 V DC 0.1 A (L/R=7 ms): 100 thousand times
Maximum switching frequency	3600 times/hour
Output response time: OFF to ON	10 ms or less
Output response time: ON to OFF	12 ms or less
Output common terminal arrangement	16 points/common (2-wire, terminal block type)
Output isolation method	Relay

Common specifications

Dielectric withstand voltage	Between all AC external terminals and ground: 2830 V AC rms/3 cycles (altitude 2000 m) Between all DC external terminals and ground: 500 V AC for 1 minute
Insulation resistance	Between all AC external terminals and ground, between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Station type	Remote I/O station
Number of occupied stations	1 station
Module power supply: Voltage	20.4...26.4 V DC (ripple ratio: within 5 %)
Module power supply: Current	120 mA or less (at 24 V DC, all points ON)
External interface	Communication part, module power supply part: 7-point two-piece terminal block (M3 screw) I/O power supply part, I/O part: 34-point direct-mount terminal block (M3 screw)
External dimensions: Height	50 mm
External dimensions: Width	179 mm
External dimensions: Depth	40 mm
Weight	0.35 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-20...75 ˚C
Operating ambient humidity	10...90 %RH, non-condensing
Storage ambient humidity	10...90 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011	Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
