Danfoss FCA1006

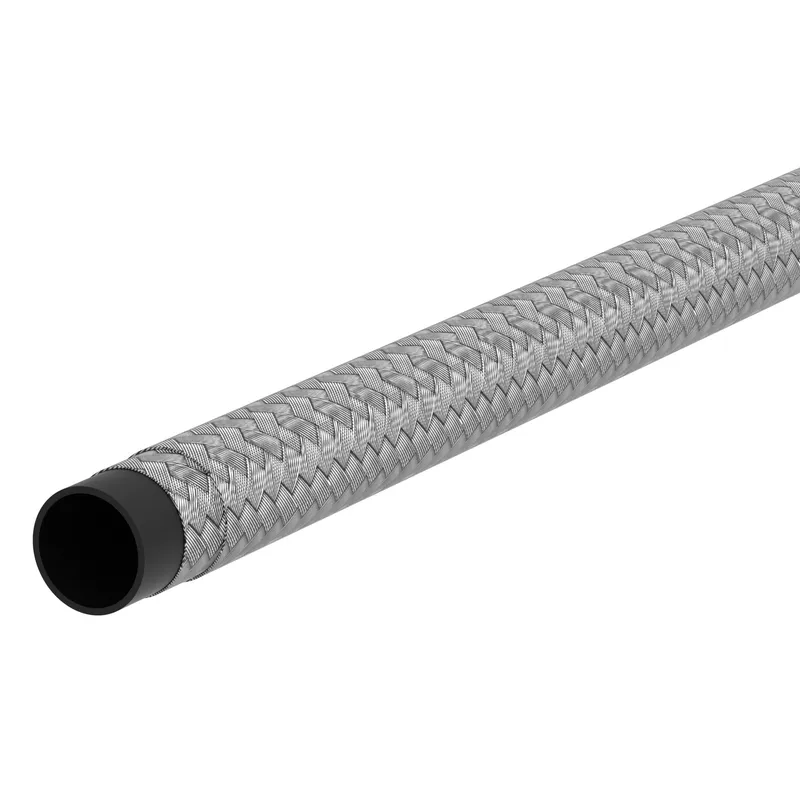

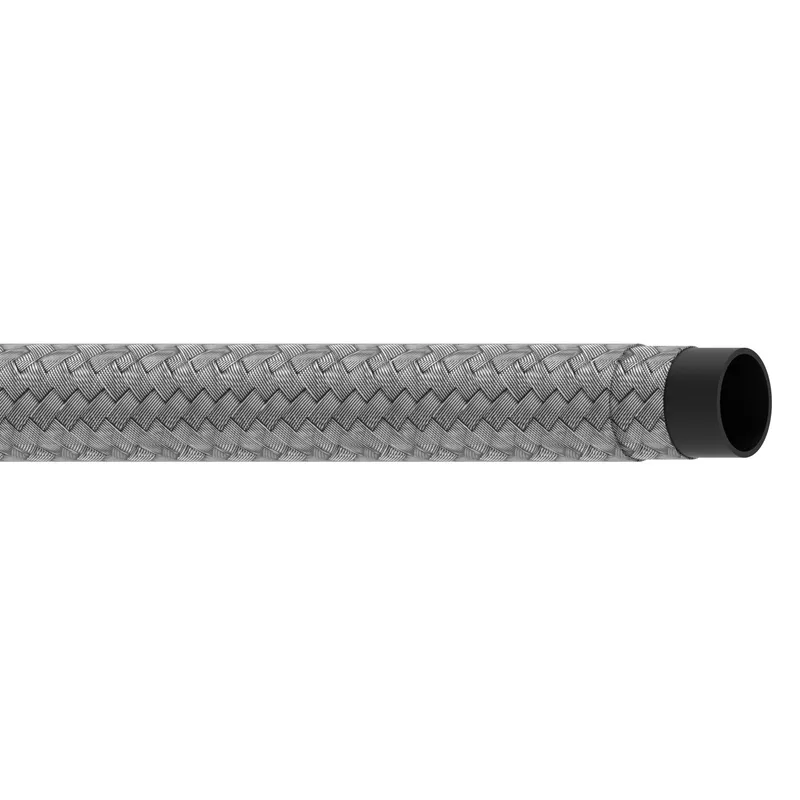

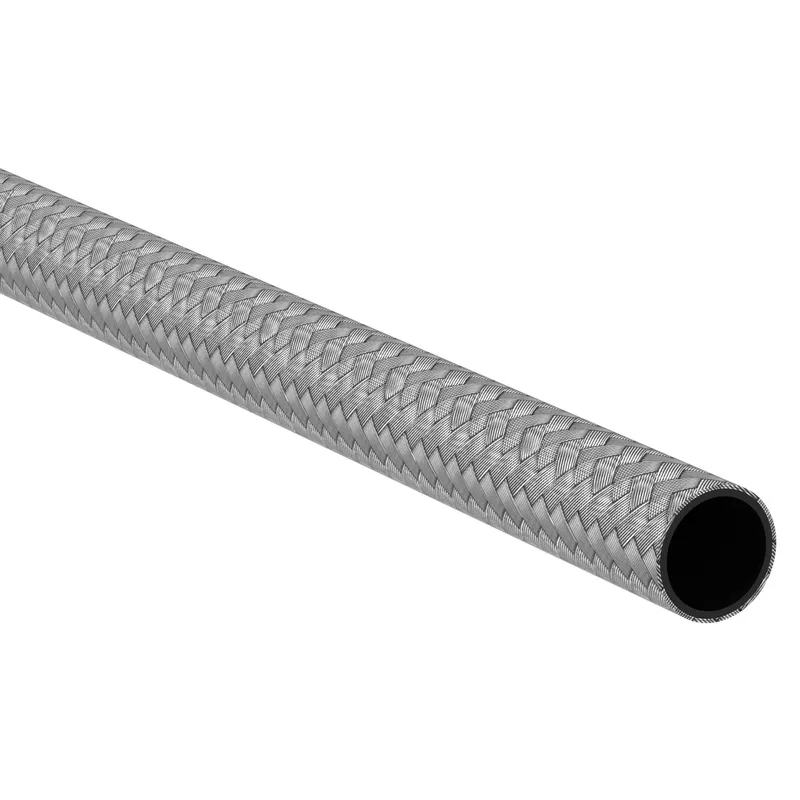

HOSE-AER, FCA, -10, 6FT, RL, FUEL,GY

MPN: FCA1006
Category: Aeroquip performance products

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Danfoss FCA1006?

Danfoss HOSE-AER, FCA, -10, 6FT, RL, FUEL,GY, manufacturer part number FCA1006. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146000194
Abrasion resistance	Premium
Application	Air
Bend radius min (inch)	4.000
Bend radius min (mm)	101.600
Brand	Aeroquip by Danfoss
Burst pressure (bar)	345
Burst pressure (psi)	5000
Color	Stainless steel
Compliances	ASTM D380
Conductivity	Conductive
Construction	2 Wire Braid
Cover material	Stainless steel
Inside diameter (inch)	0.58
Inside diameter (mm)	14.80
Lay line style	Ink transfer
Length (in)	72.00000
Length (mm)	1828.80000
Outside diameter (inch)	0.83
Outside diameter (mm)	21.21
Package form	Reel
Product height in	0.582
Product height mm	14.800
Product width in	0.582
Product width mm	14.8
Qualified hose fittings	Reusable
Reinforcement material	Brass plated steel wire
Series	FCA Series
Size	-10
Tube material	Chlorinated Polyethylene (CPE)
Vacuum rating (inHg)	28
Vacuum rating (mmHg)	711.20
Working pressure max (bar)	69
Working pressure max (psi)	1000
Working temperature max (C)	149
Working temperature max (F)	300.0
Working temperature min (C)	-48
Working temperature min (F)	-55.0

FCA1006: frequently asked questions

When can FCA1006 be shipped?

FCA1006 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FCA1006 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FCA1006 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FCA1006, subject to availability and destination.
