Danfoss FCA0603

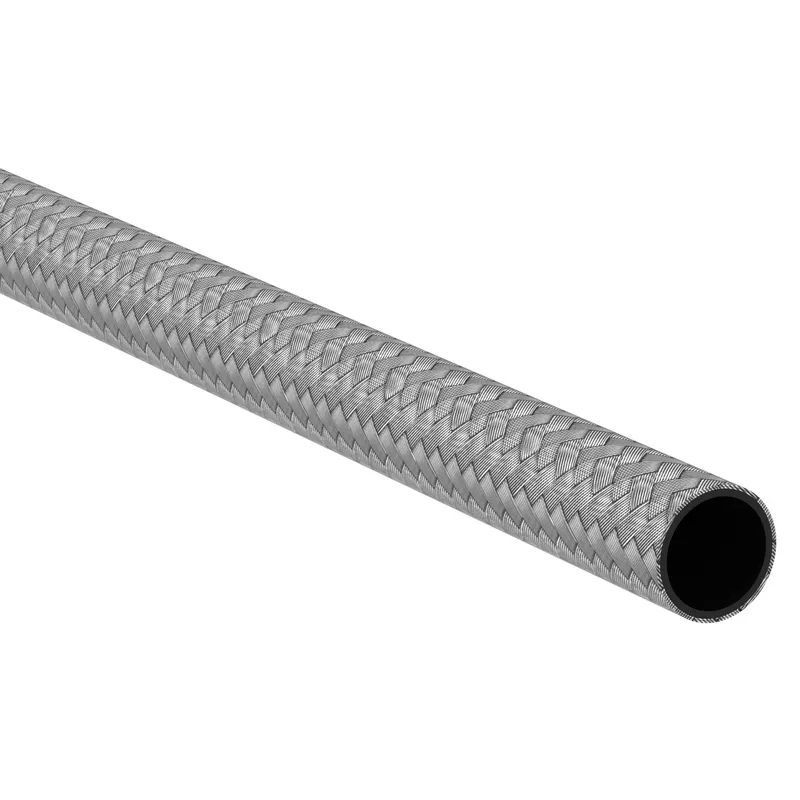

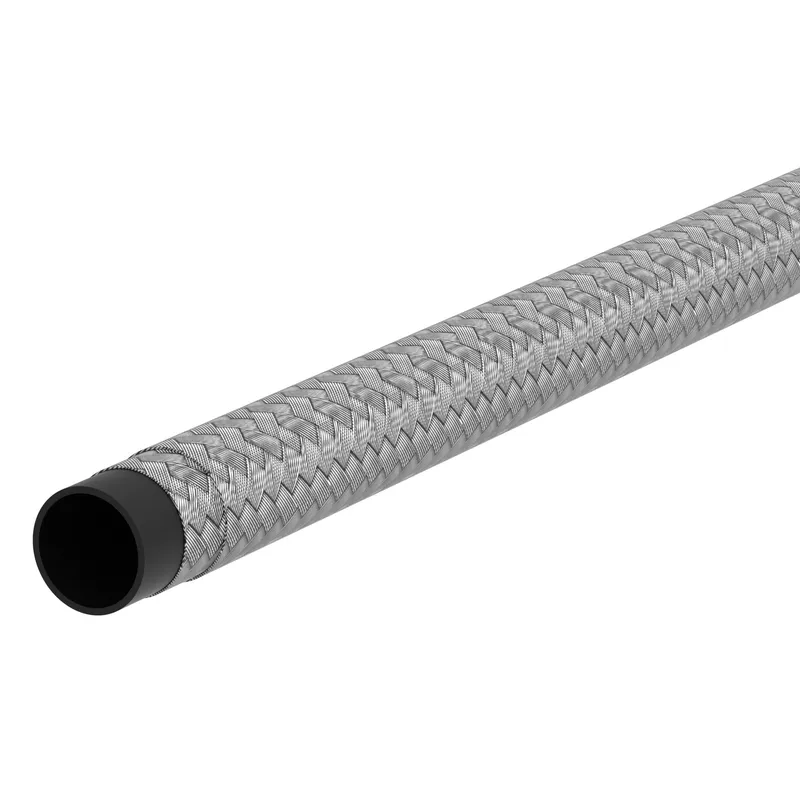

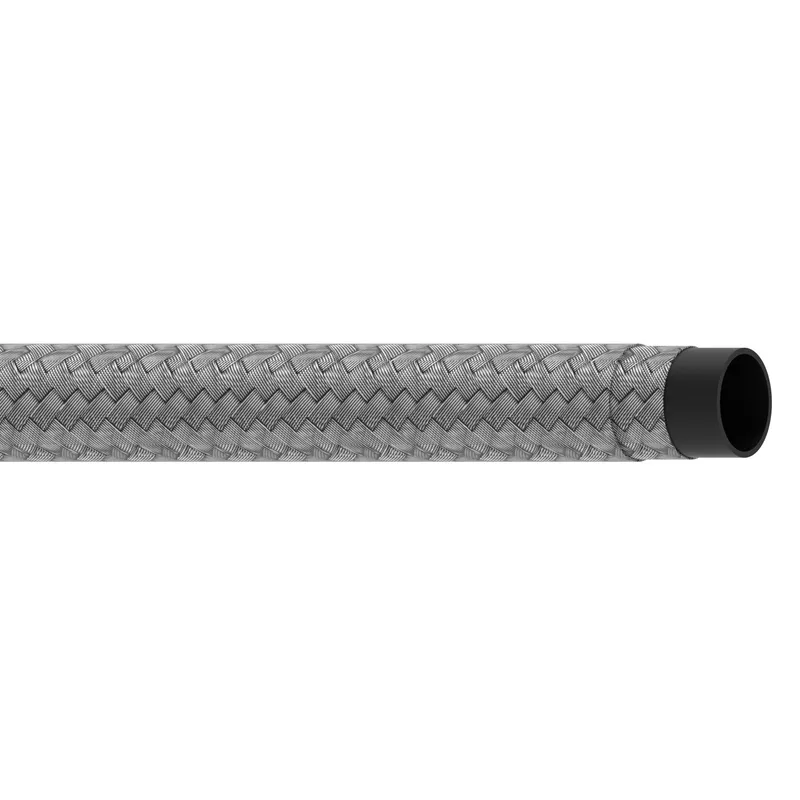

HOSE-AER, FCA, -6, 3FT, RL, FUEL,GY

MPN: FCA0603
Category: Aeroquip performance products

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Danfoss FCA0603?

Danfoss HOSE-AER, FCA, -6, 3FT, RL, FUEL,GY, manufacturer part number FCA0603. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146000064
Abrasion resistance	Premium
Application	Air
Bend radius min (inch)	2.500
Bend radius min (mm)	63.500
Brand	Aeroquip by Danfoss
Burst pressure (bar)	414
Burst pressure (psi)	6000
Color	Stainless steel
Compliances	ASTM D380
Conductivity	Conductive
Construction	2 Wire Braid
Cover material	Stainless steel
Inside diameter (inch)	0.34
Inside diameter (mm)	8.70
Lay line style	Ink transfer
Length (in)	36.00000
Length (mm)	914.40000
Outside diameter (inch)	0.55
Outside diameter (mm)	13.97
Package form	Reel
Product height in	0.344
Product height mm	8.700
Product width in	0.344
Product width mm	8.7
Qualified hose fittings	Reusable
Reinforcement material	Brass plated steel wire
Series	FCA Series
Size	-6
Tube material	Chlorinated Polyethylene (CPE)
Vacuum rating (inHg)	20
Vacuum rating (mmHg)	508.00
Working pressure max (bar)	69
Working pressure max (psi)	1000
Working temperature max (C)	149
Working temperature max (F)	300.0
Working temperature min (C)	-48
Working temperature min (F)	-55.0
