Danfoss 858AN00032A

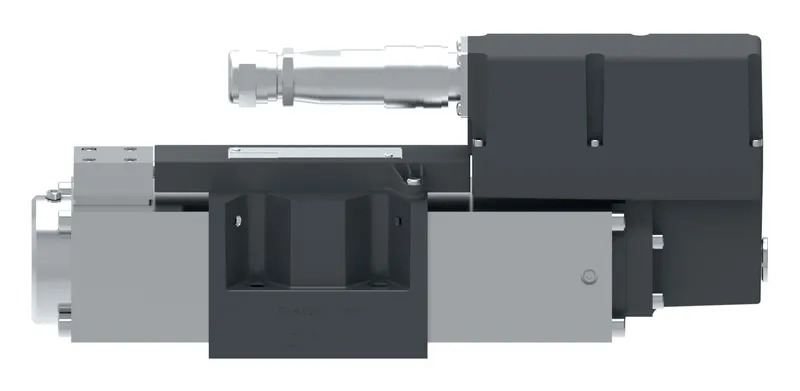

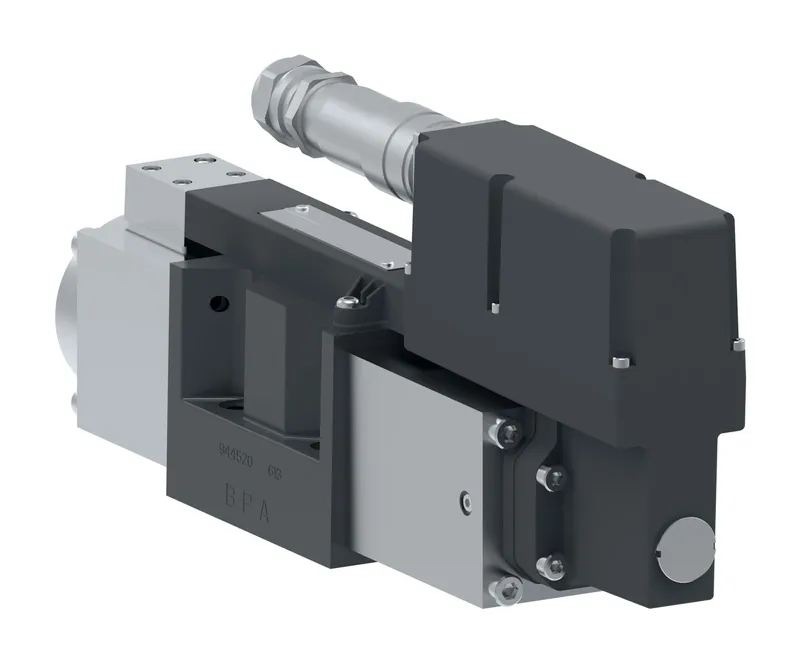

VALVE KBFDG4V-5-2C70N-Z-M2-PC7-H7-12, KBFDG4V52C70NZM2PC7H712

MPN: 858AN00032A
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Danfoss 858AN00032A?

Danfoss VALVE KBFDG4V-5-2C70N-Z-M2-PC7-H7-12, KBFDG4V52C70NZM2PC7H712, manufacturer part number 858AN00032A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A Port flow LPM	70.00
A Port flow USGPM	18.50
Actuation Type	Solenoid controlled
B Port flow LPM	70.00
B Port flow USGPM	18.50
Brand	Vickers by Danfoss
Build orientation	Standard as per ANSI B93 9
Build type	Spring centered
Coil voltage	24 Volt DC
Command input	4-20mA Command +/-10V feedback
Communication protocol	None
Design Series	12 Series
Electrical Connection	Electrical (PC7) 7 pin connector without plug
Feedback sensor	Yes
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Antiwear hydraulic oils and non alkyl-based Phosphate Esters
Interface	ISO4401-05/NFPA D05/CETOP 5/NG10
Manual override	None
Maximum pressure BAR	315
Maximum pressure PSI	4500
Metering	Meter in / meter out
Model Code 1	KBFDG4V52C70NZM2PC7H712
On board electronics	Yes
Performance	High
ProFX compatible	No
Reducer module	No
Reverse flow check	No
Seal type	Viton
Special features	None
Spool Type	ISO4401-10/NFPA D10/CETOP 10/NG32
Stage	Single stage
Symmetric flow	Yes
Tank port rating BAR	210
Tank port rating PSI	3000
Valve Mount Type	Subplate
Valve type	Proportional directional
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
