Danfoss 727AR00001A

MPN: 727AR00001A
Category: Industrial vane motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Danfoss 727AR00001A?

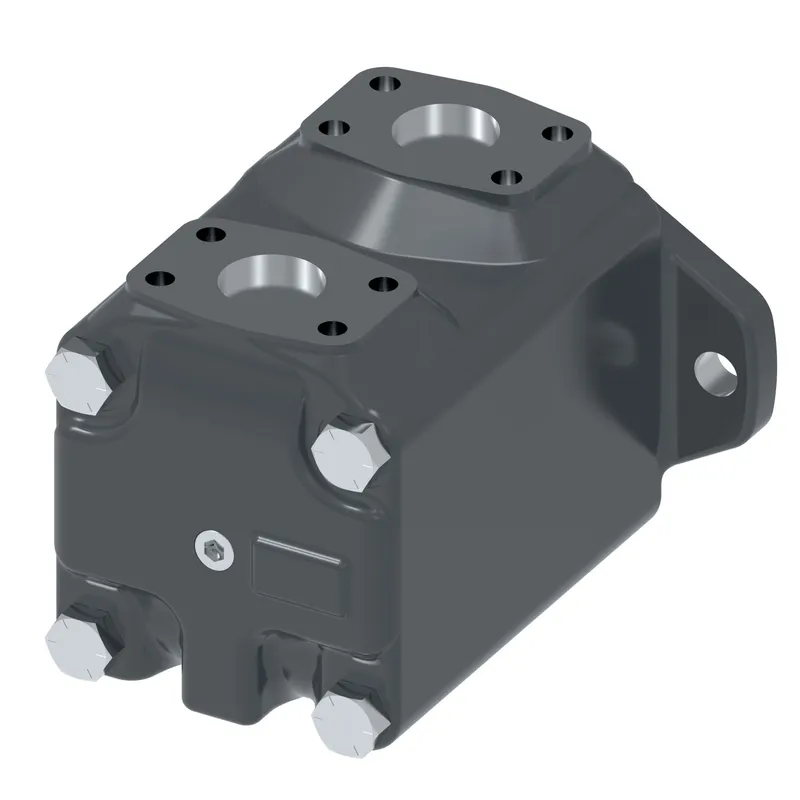

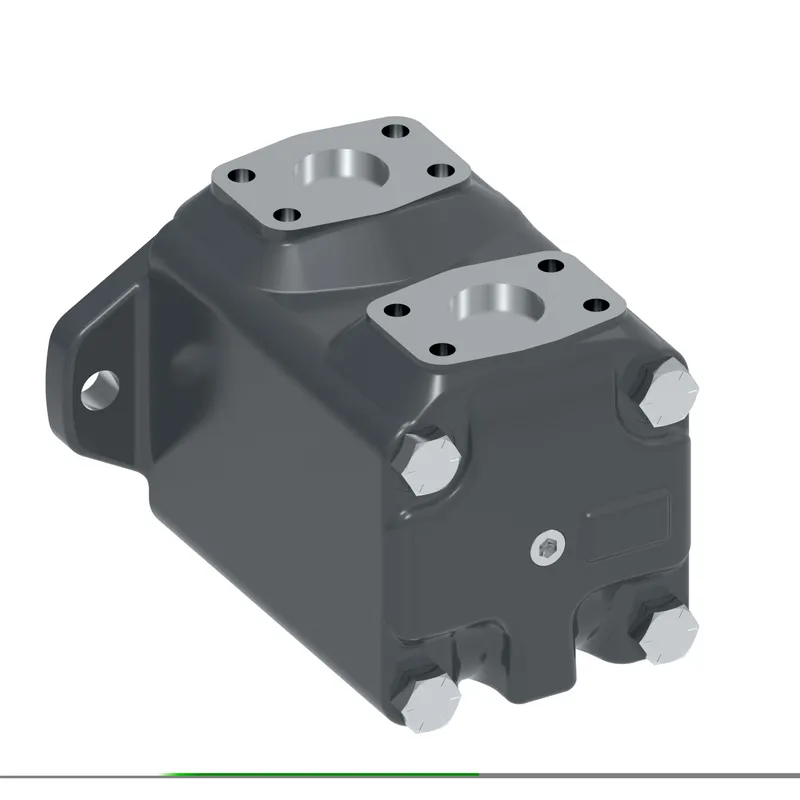

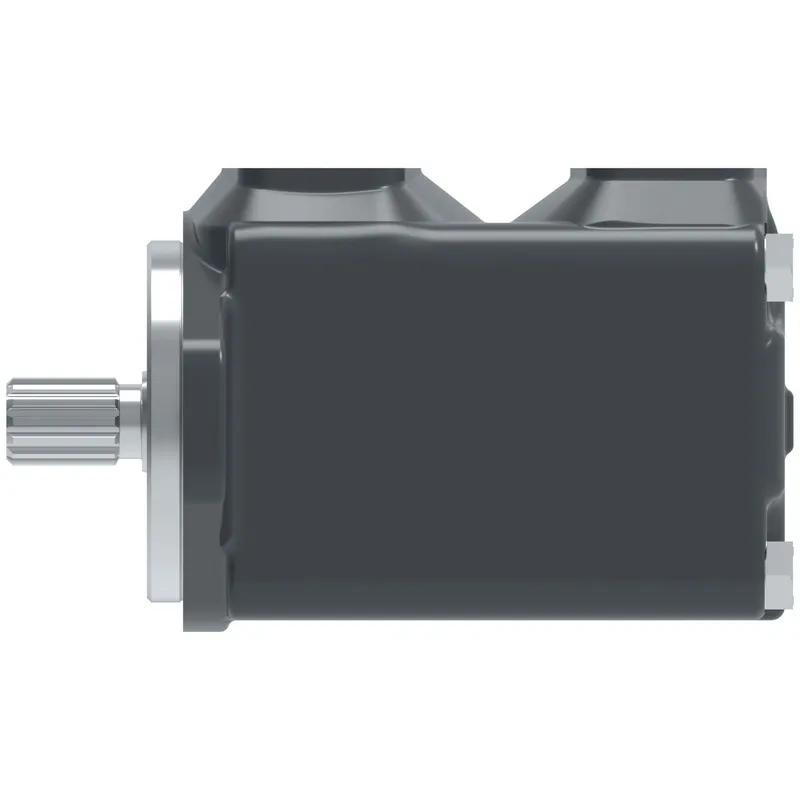

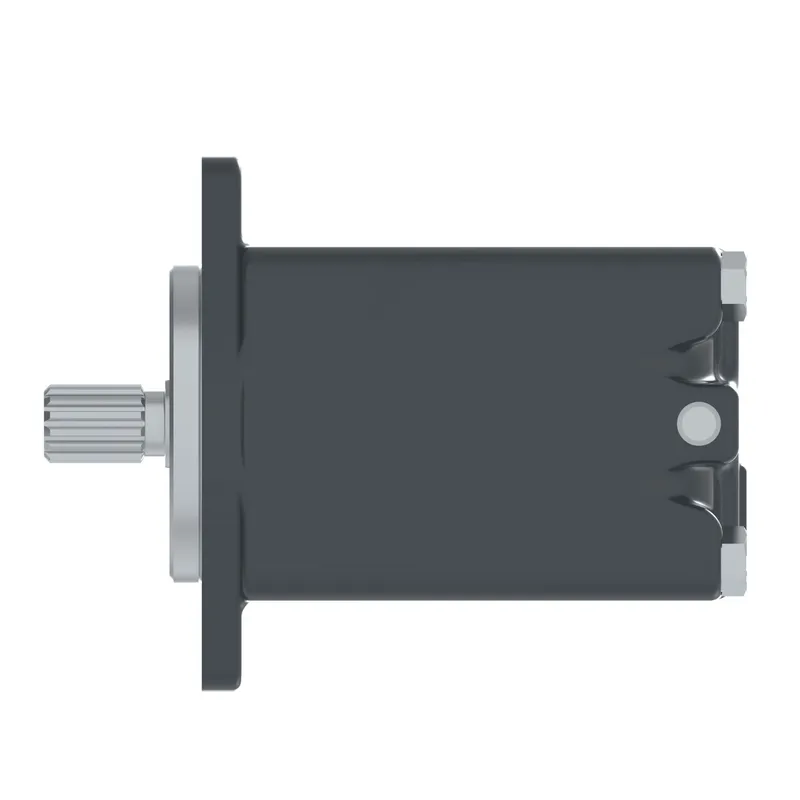

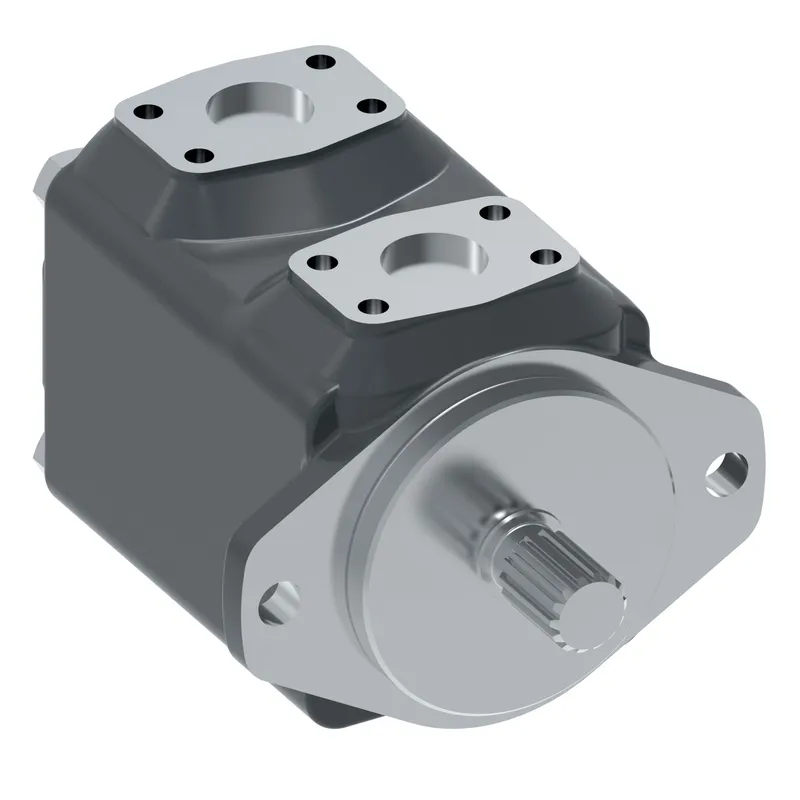

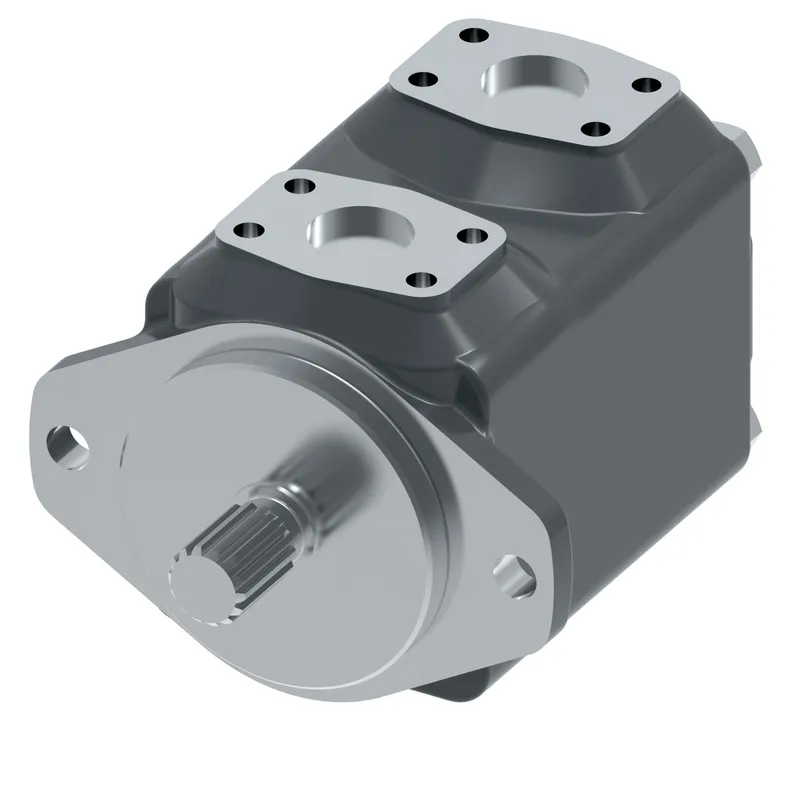

Danfoss F8-35M115AM-13C20-128, F8-35M115AM-13C20-128, manufacturer part number 727AR00001A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

SEALS TYPE	JOHNS MANVILLE SEAL
Series	STANDARD BEARING
Motor type	VANE MOTOR
RING TORQUE RATING	115 IN. LBS./100 PSI
PORT CONNECTIONS	4 BOLT FLANGE
SHAFT	13: 14T 16/32 SF
DESIGN NO	DESIGN NO
SPECIAL FEATURE SUFFIX	SPECIAL COVER WITH ADDED DRAIN PORT OPPOSITEMAIN PORT.
PORT CONN TYPE	METRIC PORT CONNECTION
PORT LOCATN FRM CVR END	COVER PORT INLINE WITH BODY PORT
Brand	Vickers by Danfoss
IPM FRAME SIZE	35M Vane Motor
Model Code 1	F8-35M115AM-13C20-128

727AR00001A: frequently asked questions

When can 727AR00001A be shipped?

727AR00001A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 727AR00001A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 727AR00001A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 727AR00001A, subject to availability and destination.
