GD5S16AD02AFAF05RAA5C
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Lumi aluminum gear pumps |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 600AD00021C be shipped?
600AD00021C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 600AD00021C in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 600AD00021C and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 600AD00021C, subject to availability and destination.

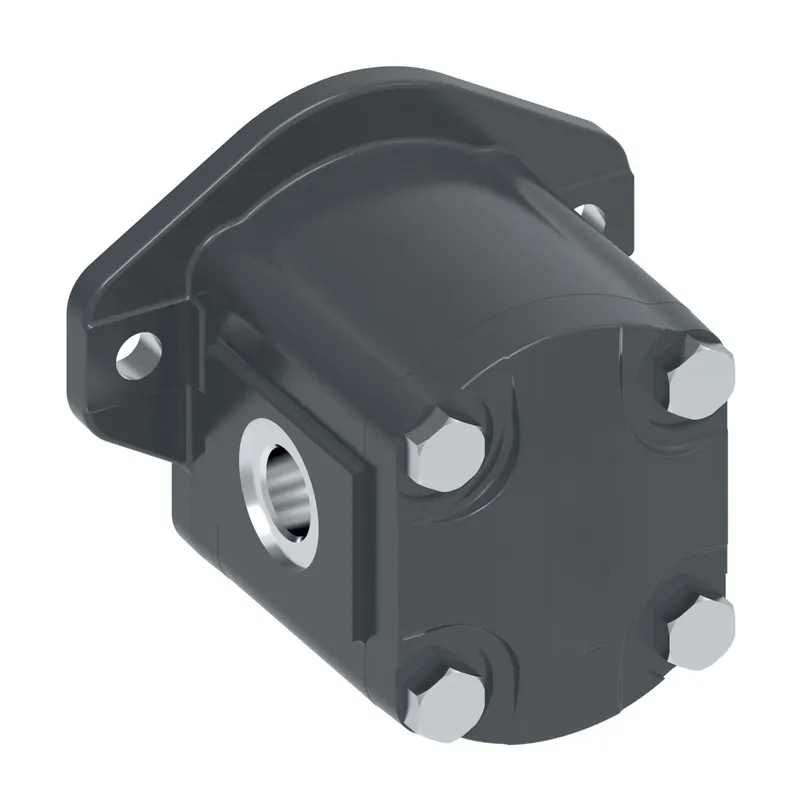

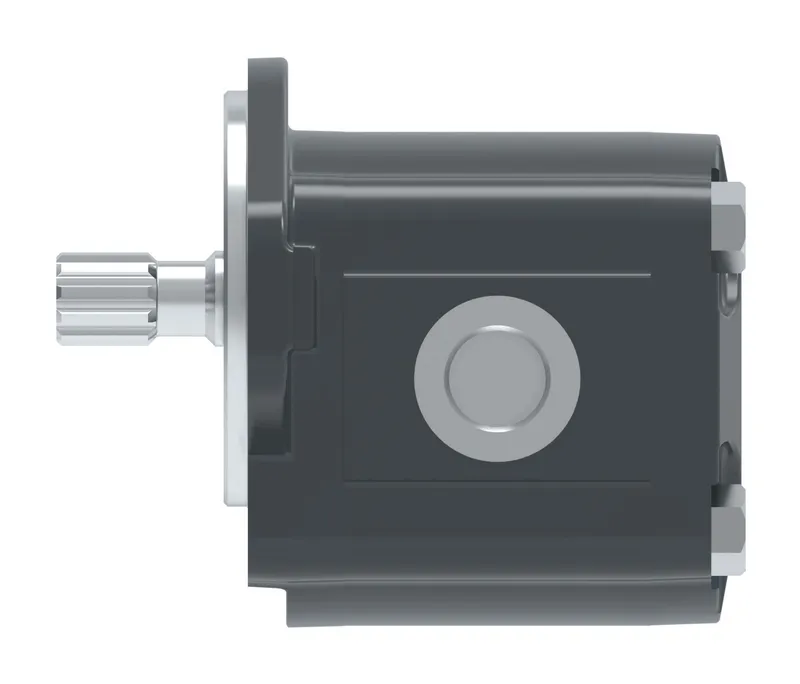

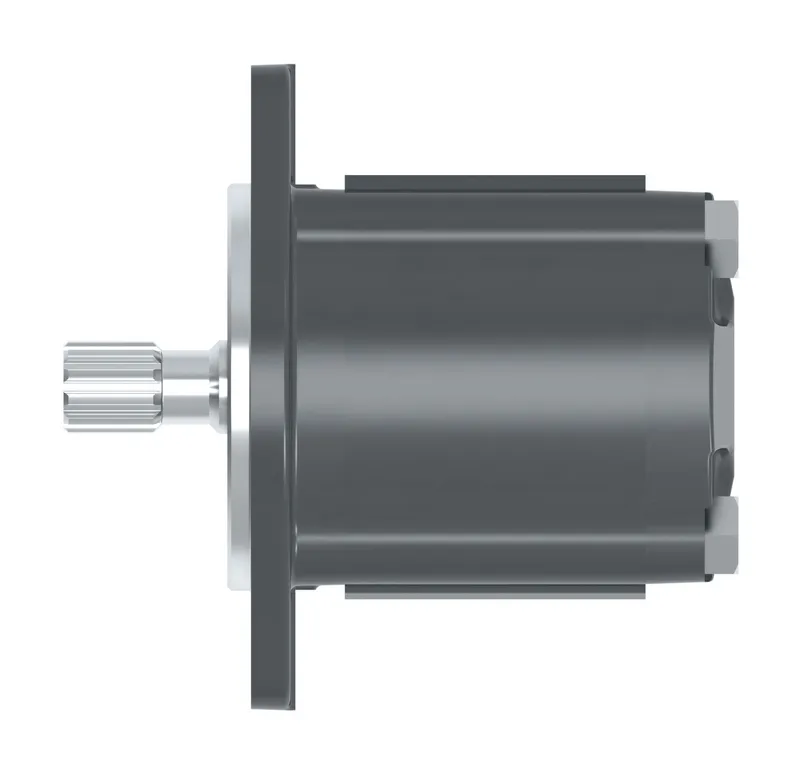

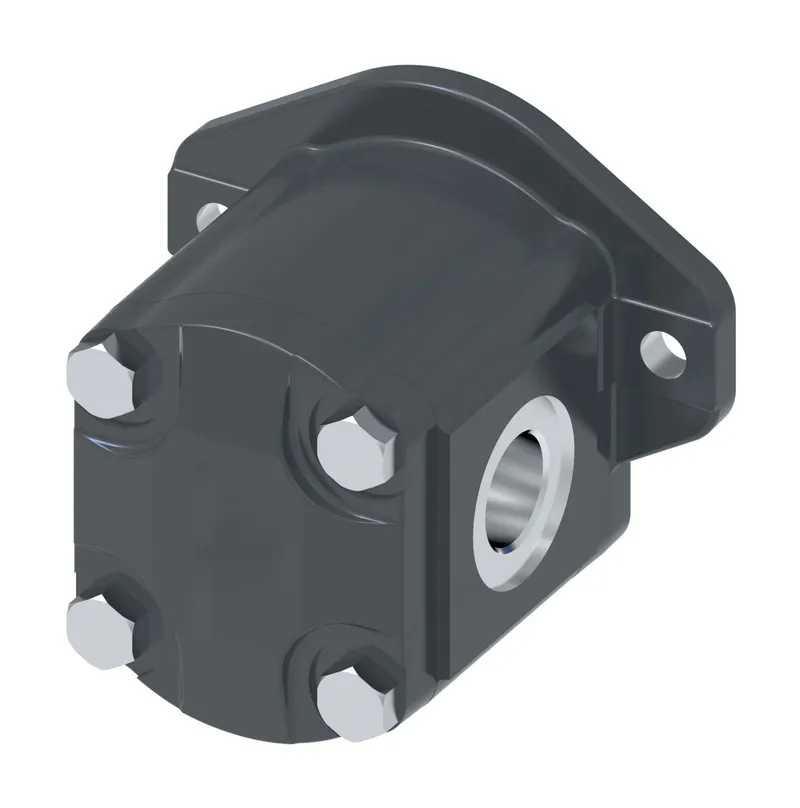

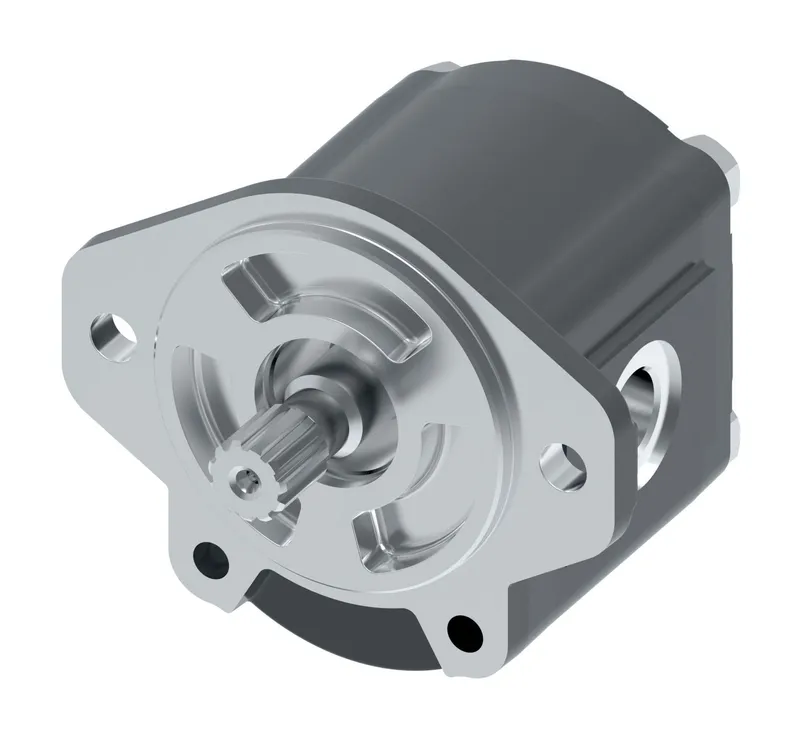

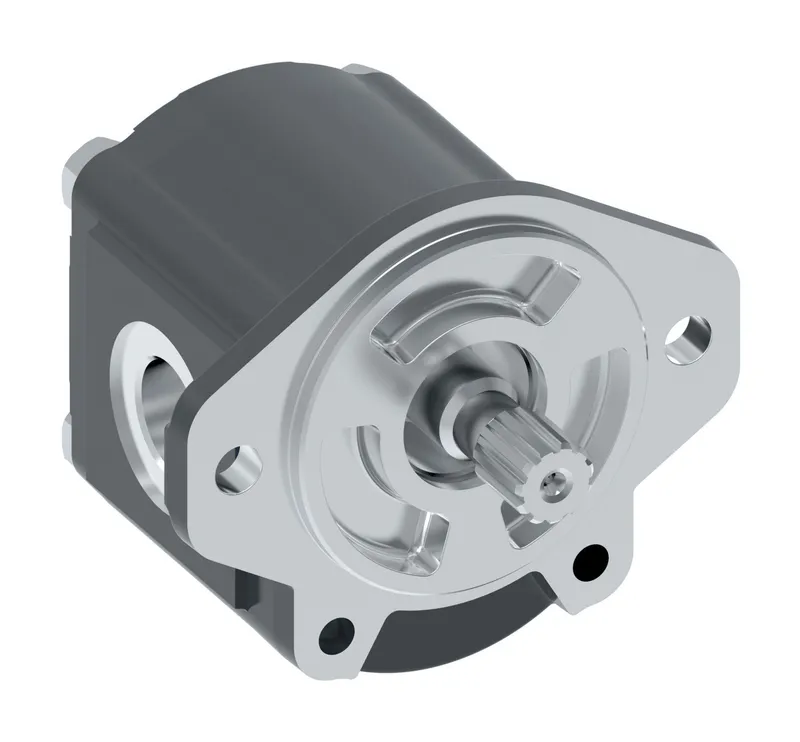

Danfoss GD5S16AD02AFAF05RAA5C, manufacturer part number 600AD00021C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Brand | Danfoss |
| Design code | Third |
| Displacement | 16.5 cm3/r [1.00 in3/r] |
| Identification | Schwing stetter |
| Inlet port | G3/4 ports |
| Input shaft | Straight shaft dia 17.46 [0.68], key 4.76 x 19.0 [0.18 x 0.75], shaft ext 31.8 [1.25] |
| Mounitng | SAE a 2 bolt, 82.50 [3.25] pilot dia. 11.0 [0.43] dia holes slotted on 106.4 [4.19] dia. circle |
| Outlet port | G3/4 ports |
| Paint | None |
| Product | External gear pump |
| Rotation | Right handed cw |
| Size | Frame size |
| Special features | Hollow center section (rated for 250 bar [3626 lbf/in2]) |
| Unit type | Single |
