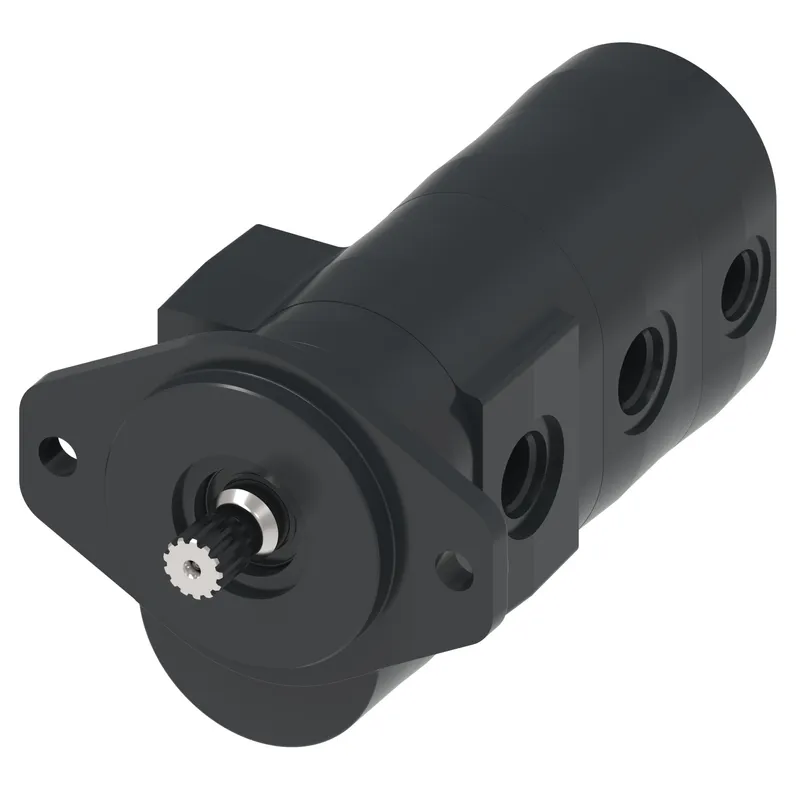

Danfoss 163D1502

GEAR PUMP-LH, TRIPLE DISPL

MPN
163D1502
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 163D1502?

Danfoss GEAR PUMP-LH, TRIPLE DISPL, manufacturer part number 163D1502. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

ProductD-series left-hand triple
Front displacement and input drive38.0cc / parallel shaft: 7/8 inch diameter x 1.62 inch extension, with 1/4 inch key
Mounting flangeSAE B 2 bolt
Porting after first sectionBearing plate, 1 1/2 inch beaded tube inlet, 1 1/16-12 ORB outlet, note: inlet tube is stepped down to 1 1/4 inch
Second section displacement25.4 cc [1.55 CIR]
Porting prior to rear coverBearing plate, 1 1/2 inch beaded tube inlet, 1 1/16-12 ORB outlet, note: inlet tube is stepped down to 1 1/4 inch
Rear displacement9.5cc [0.58 CIR]
Rear cover and portingCover, no inlet, 7/8-14 ORB outlet
Control settingNo controls
Relief valve pressureNo relief valve
ScrewsBK: Screws
NameplateStandard nameplate
Special featuresStandard black paint
Proposition 65Cancer and Reproductive Harm

163D1502: frequently asked questions

When can 163D1502 be shipped?

163D1502 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 163D1502 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 163D1502 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 163D1502, subject to availability and destination.
