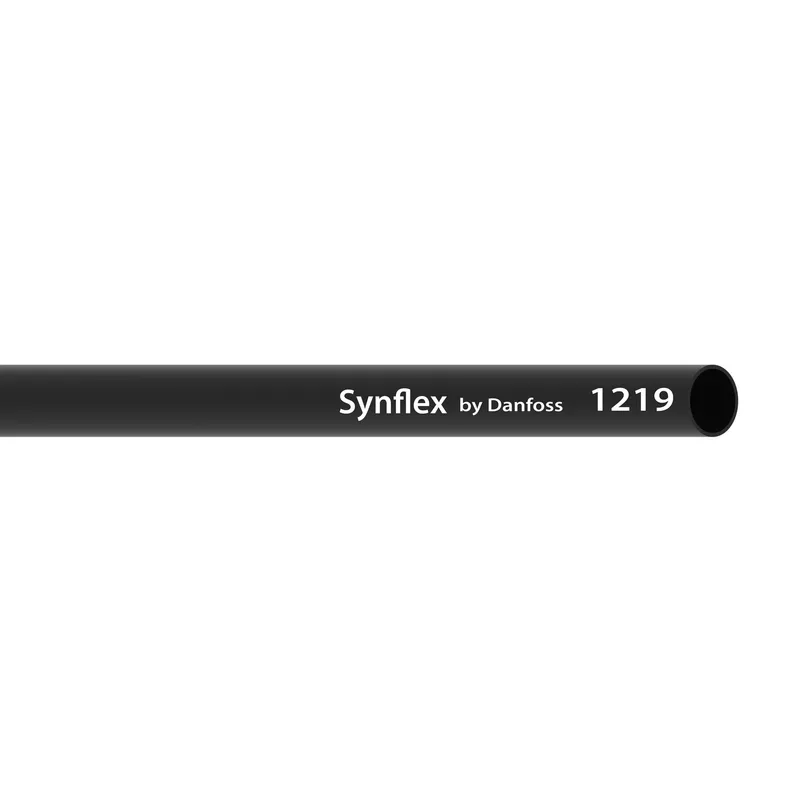

Danfoss 1219-862C3
BLK-1/2"ODx62W ORG/STRIPED,250'COILS.
- MPN
- 1219-862C3
- Category
- Thermoplastic tubing
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Danfoss 1219-862C3?
Danfoss BLK-1/2"ODx62W ORG/STRIPED,250'COILS., manufacturer part number 1219-862C3. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 810903032141 |
| Abrasion resistance | Standard |
| Bend radius min (inch) | 0.125 |
| Bend radius min (mm) | 3.175 |
| Brand | Synflex by Danfoss |
| Burst pressure (bar) | 7 |
| Burst pressure (psi) | 100 |
| Color | Orange |
| Construction | Extruded |
| Cover material | Polyethylene (PE) |
| Inside diameter (inch) | 0.37 |
| Inside diameter (mm) | 9.40 |
| Outside diameter (inch) | 0.50 |
| Outside diameter (mm) | 12.70 |
| Reinforcement material | Polyethylene |
| Series | 1219 Series |
| Size | -8 |
| Tube material | Polyethylene (PE) |
| Tube wall thickness (inch) | 0.06 |
| Tube wall thickness (mm) | 1.52 |
| Working pressure max (bar) | 34 |
| Working pressure max (psi) | 500 |
| Working temperature max (C) | 66 |
| Working temperature max (F) | 150.0 |
| Working temperature min (C) | -48 |
| Working temperature min (F) | -55.0 |
1219-862C3: frequently asked questions
When can 1219-862C3 be shipped?
1219-862C3 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1219-862C3 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1219-862C3 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1219-862C3, subject to availability and destination.
