Home / Danfoss (Drives) / Thermoplastic tubing / Danfoss 1219-662E4-500

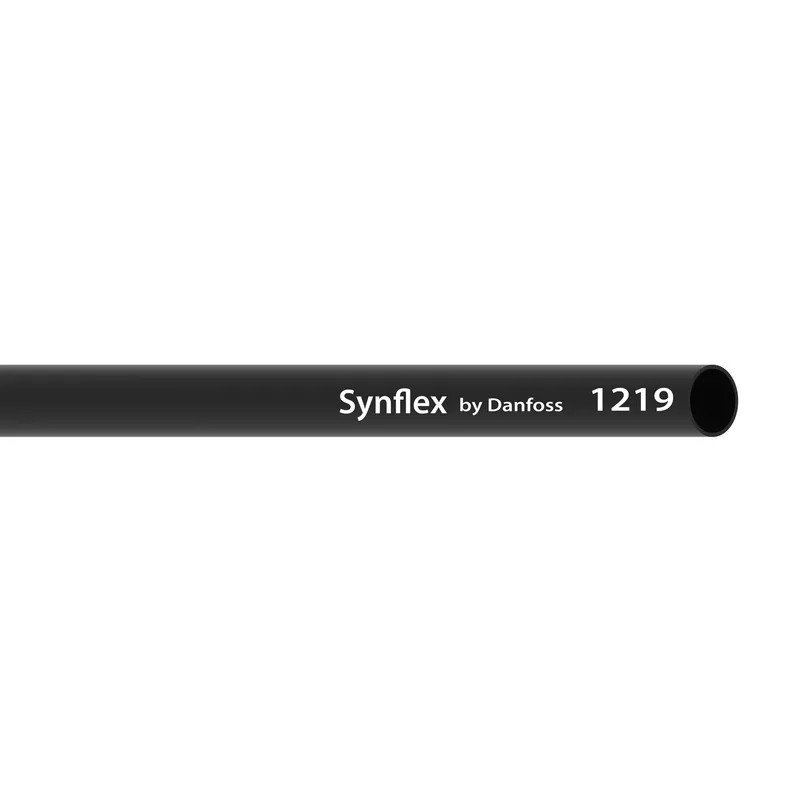

Danfoss 1219-662E4-500

BLK-3/8INODX62W.FRPE/TBG GRN/STRIPED.500

MPN: 1219-662E4-500
Category: Thermoplastic tubing

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1219-662E4-500?

Danfoss BLK-3/8INODX62W.FRPE/TBG GRN/STRIPED.500, manufacturer part number 1219-662E4-500. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	639789360533
Bend radius min (inch)	1.500
Bend radius min (mm)	38.100
Brand	Synflex by Danfoss
Burst pressure (bar)	48
Burst pressure (psi)	700
Color	Green stripe
Compliances	UL 94V2
Construction	Extruded
Cover material	Polyethylene (PE)
Inside diameter (inch)	0.25
Inside diameter (mm)	6.35
Outside diameter (inch)	0.38
Outside diameter (mm)	9.65
Package form	Cut length
Reinforcement material	Polyethylene
Series	1219 Series
Size	-6
Tube material	Polyethylene (PE)
Tube wall thickness (inch)	0.06
Tube wall thickness (mm)	1.52
Working pressure max (bar)	36
Working pressure max (psi)	522
Working temperature max (C)	80
Working temperature max (F)	176.0
Working temperature min (C)	-40
Working temperature min (F)	-40.0

1219-662E4-500: frequently asked questions

When can 1219-662E4-500 be shipped?

1219-662E4-500 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1219-662E4-500 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1219-662E4-500 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1219-662E4-500, subject to availability and destination.
