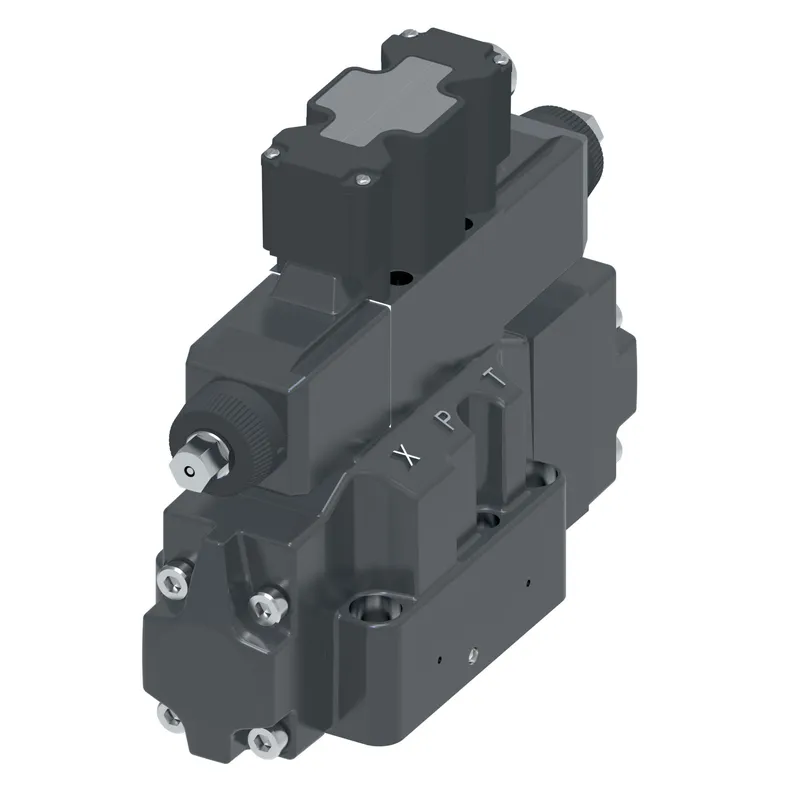

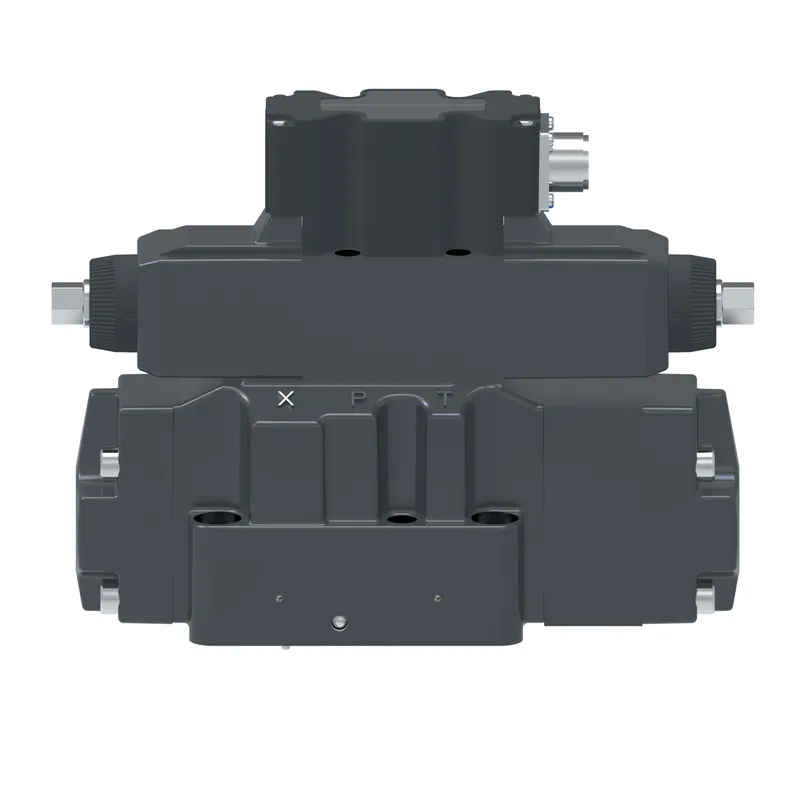

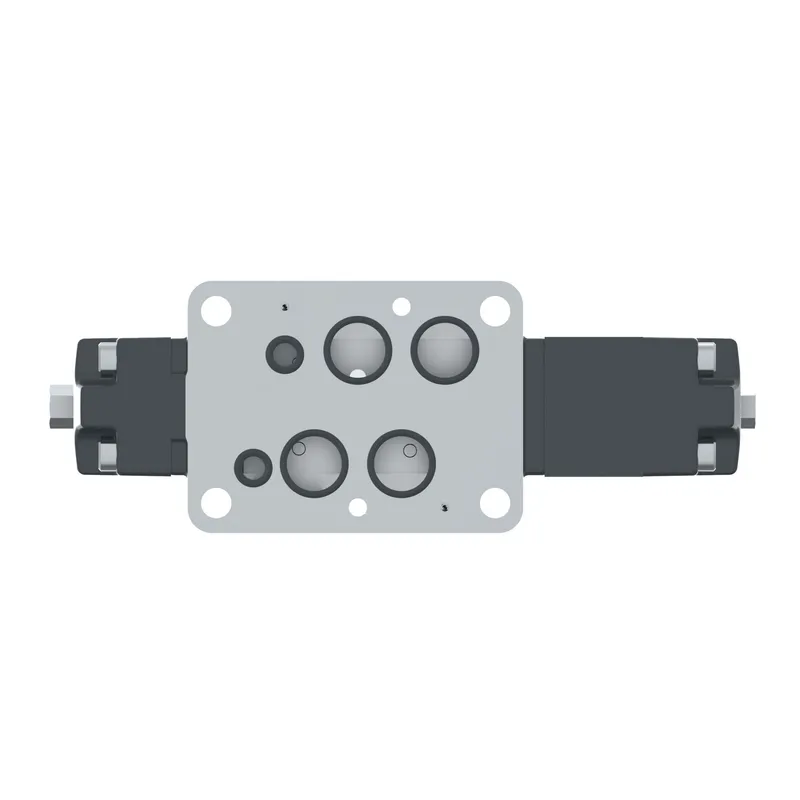

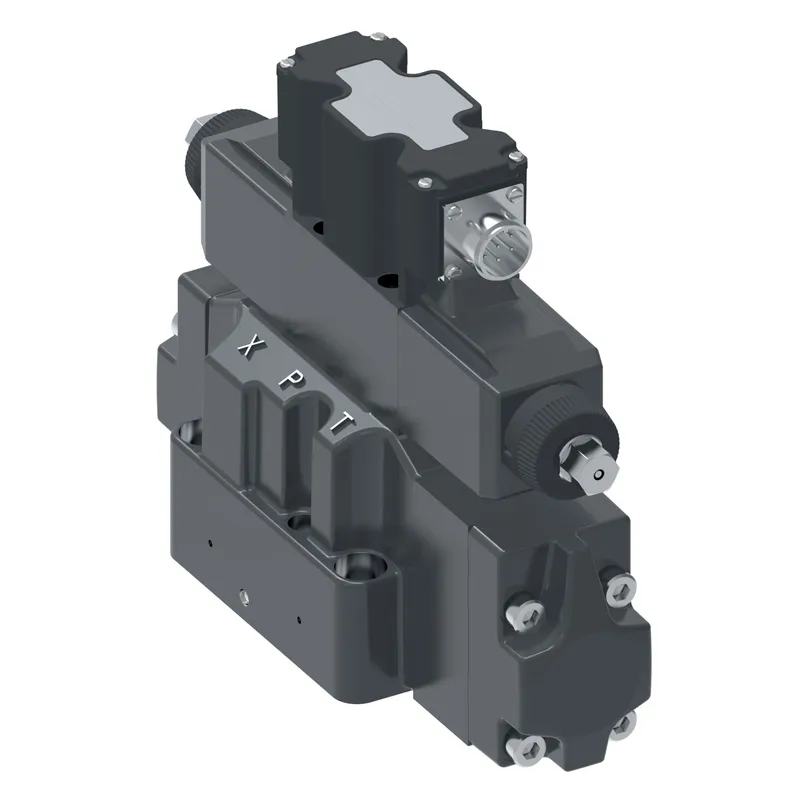

Danfoss 12000796

KBDG5V-7-2C180N100-X-M2-PE7-H1-20-EN162, KBDG5V72C180N100XM2PE7H120EN162

MPN: 12000796
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 12000796?

Danfoss KBDG5V-7-2C180N100-X-M2-PE7-H1-20-EN162, KBDG5V72C180N100XM2PE7H120EN162, manufacturer part number 12000796. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A Port flow LPM	180.00
A Port flow USGPM	48.00
Actuation Type	Solenoid controlled pilot operated
B Port flow LPM	100.00
B Port flow USGPM	26.40
Brand	Vickers by Danfoss
Build orientation	Standard as per ANSI B93 9
Build type	Spring centered
Coil voltage	24 Volt DC
Command input	4-20mA Control signal
Communication protocol	None
Design Series	20 Series
Electrical Connection	Electrical (PE7) 7 pin electrical plug with mating half
Feedback sensor	No
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Antiwear hydraulic oils and non alkyl-based Phosphate Esters
Interface	ISO4401-07/NFPA D07/CETOP 7/NG16
Manual override	Plain
Maximum pressure BAR	350
Maximum pressure PSI	5000
Metering	Meter in / meter out
Model Code 1	KBDG5V72C180N100XM2PE7H120EN16
Model Code 2	2
On board electronics	Yes
Performance	Standard
Pilot drain	External
Pilot supply	Internal
ProFX compatible	Yes
Reducer module	Yes
Reverse flow check	No
Seal type	Viton
Special features	CANOPEN communication amp
Spool Type	ISO4401-10/NFPA D10/CETOP 10/NG32
Stage	Two stage
Symmetric flow	No
Tank port rating BAR	350
Tank port rating PSI	5000
Valve Mount Type	Subplate
Valve type	Proportional directional
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
