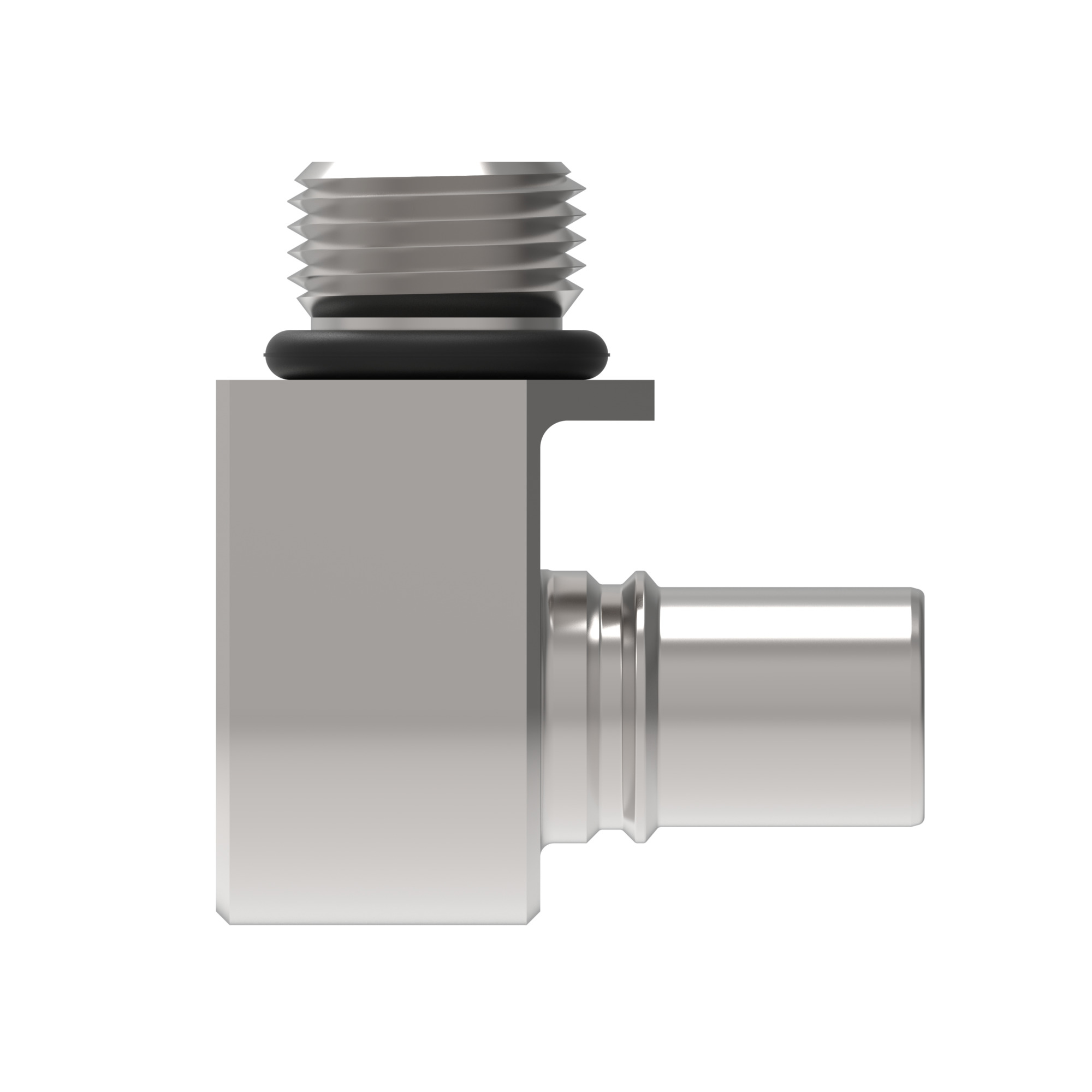

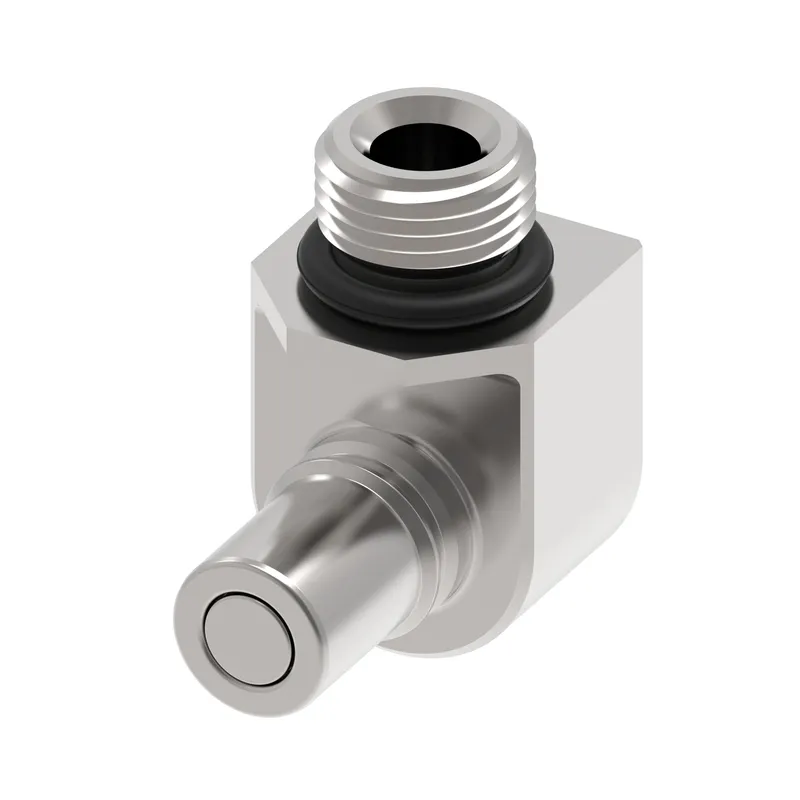

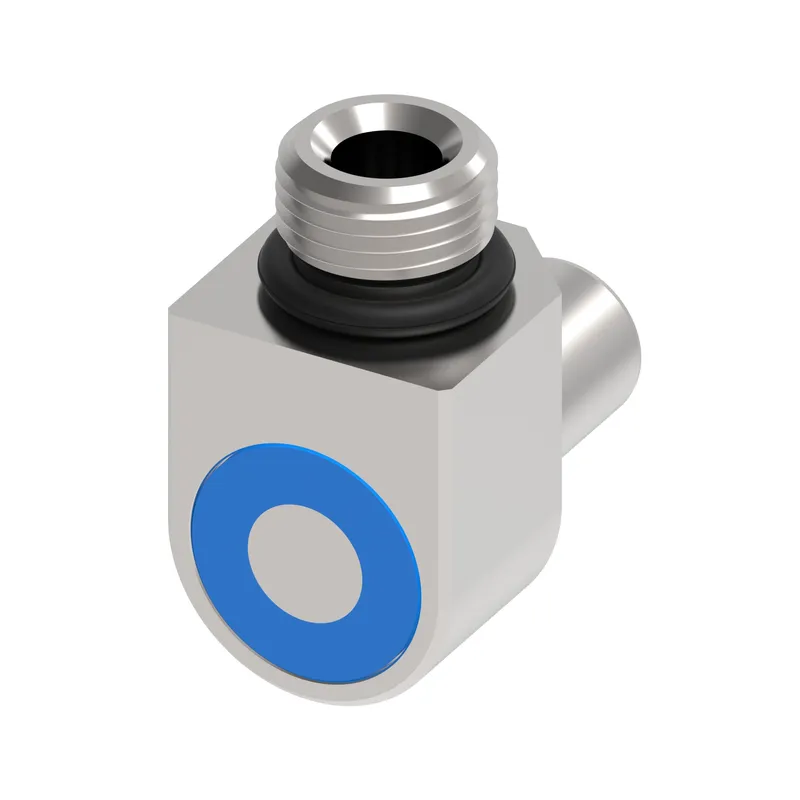

Danfoss 11359557

COUP,MQD,MAL,3/16,304,-4ORB,EPDM,EL,BL

MPN: 11359557
Category: Data centers

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Danfoss 11359557?

Danfoss COUP,MQD,MAL,3/16,304,-4ORB,EPDM,EL,BL, manufacturer part number 11359557. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Angle shape	90 Degree
Application	Cooling applications
Body size	1/4
Brand	Danfoss
Burst pressure min bar	21
Burst pressure min psi	300
Connection style	Manual connect
End size 1	-4
End Type 1	Male ORB ISO 11926-3
Flow rate GPM	1.20
Flow rate LPM	4.54
Fluid loss cc	0.02300
Hex size 1 IN	0.630
Hex size 1 MM	16.100
Item type	Male half
Latch type	Push to connect
Product material	304 Stainless Steel
Seal material	Ethylene propylene (EPDM)
Sub brand	Hansen
Thread size 1	7/16-20 UNF
Valve type	2 way
Working pressure max psi	100
Working pressure max BAR	7.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
