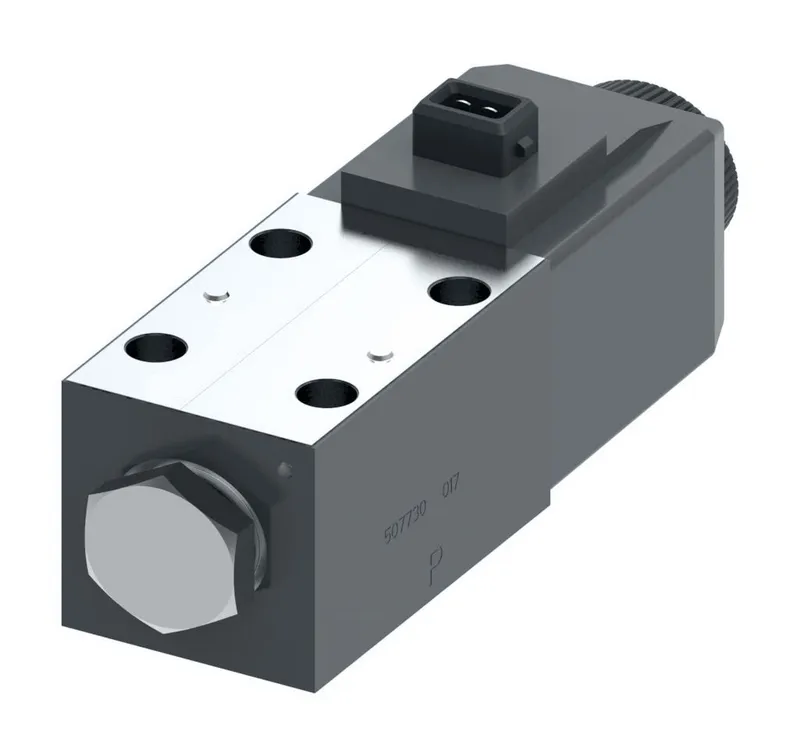

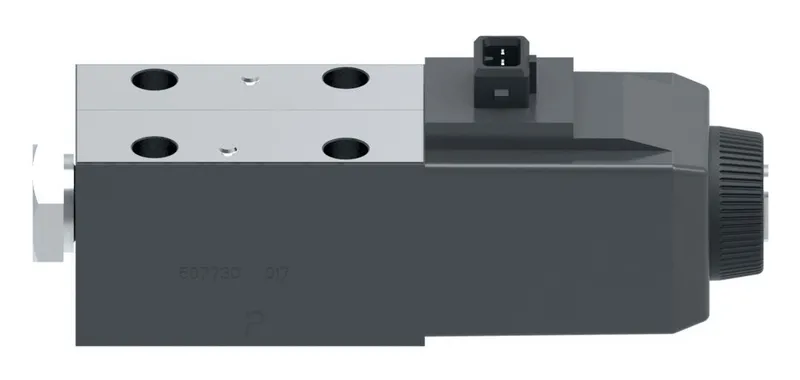

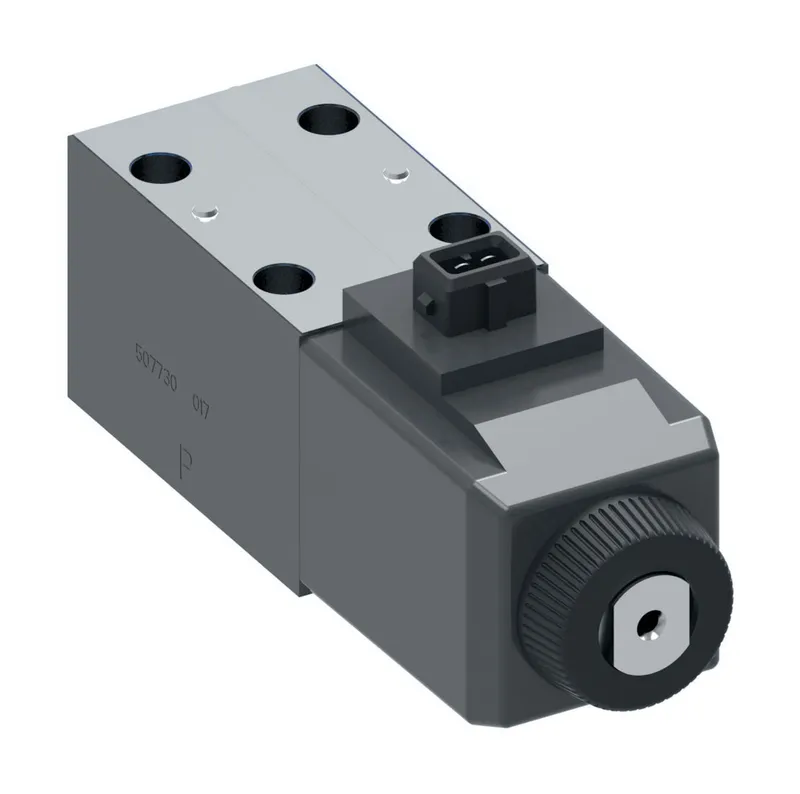

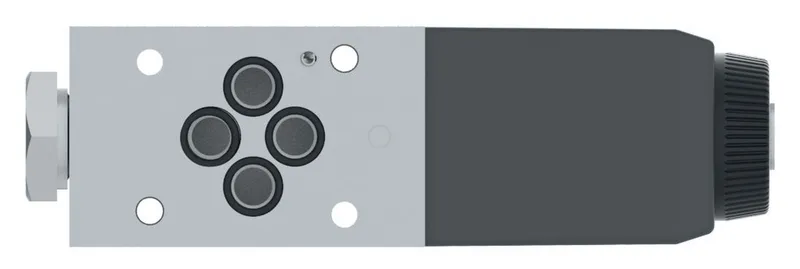

Danfoss 02-400626

DG4V-3-2A-VM-KUPM4L-D7-H L7-60, DG4V32AVMKUPM4LD7HL760

MPN: 02-400626
Category: Manifold directional control valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Danfoss 02-400626?

Danfoss DG4V-3-2A-VM-KUPM4L-D7-H L7-60, DG4V32AVMKUPM4LD7HL760, manufacturer part number 02-400626. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Solenoid operated
Brand	Vickers by Danfoss
Coil Rating	24 VDC
Design Series	60 Series
Electrical Connection	M12 connector
Energ Time	45-28 ms
Flow rate upto GPM	21.0
Flow rate upto LPM	80.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Indicator Light	Yes
Interface	ISO4401-03
Manual override	Plain
Model Code 1	DG4V32AVMKUPM4LD7HL760
Performance	High performance
Power Consumption	18 watt
Pressure rating BAR	350
Pressure rating PSI	5000
Seal type	WATER GLYCOL
Solenoid Energising ID	Solenoid A at port A end
Special features	None
Spool Position Monitor	No
Spool Type	Spool 2
Spring Arrangement	Spring offset end to end
Stage	Single stage
Surge Suppr Damper	Yes
Tank port rating BAR	210.0
Tank port rating PSI	3000
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
