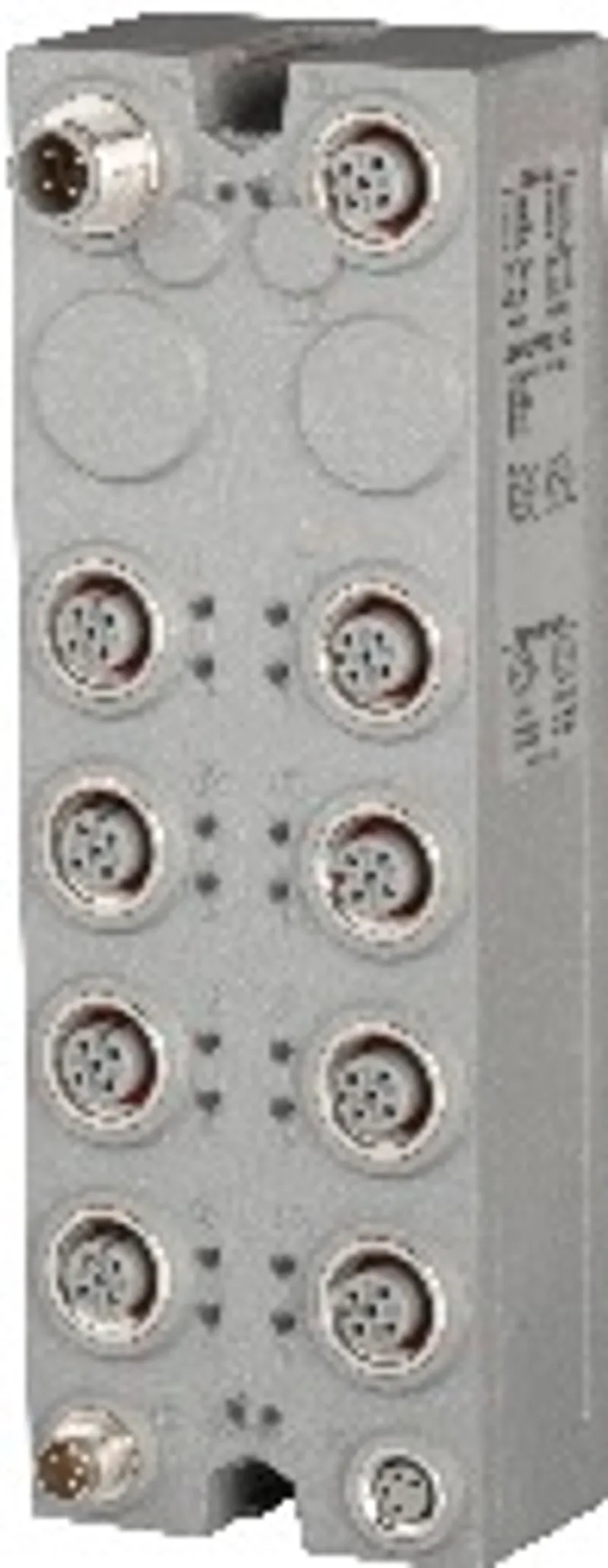

B&R X67DI1371.L12 – I/O module, 16 digital inputs 24 VDC

Name: B&R X67DI1371.L12 – I/O module, 16 digital inputs 24 VDC
Brand: B&R
SKU: X67DI1371.L12

MPN: X67DI1371.L12 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Digital input modules
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	320 kg
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can X67DI1371.L12 be shipped?

X67DI1371.L12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up X67DI1371.L12 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for X67DI1371.L12 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X67DI1371.L12, subject to availability and destination.

• 16 digital inputs

• For all standard sensors with M12 connectors

• 1:1 replacement for passive distributors

• Extremely short cycle times

• Integrated sensor supply with short circuit protection

This module is a digital input module with high integration density. The module is equipped with 16 inputs and M12 connectors.

Specifications

Short description

I/O module

16 digital inputs 24 VDC

General information

Diagnostics – I/O power supply	Yes, using LED status indicator
Connection type – X2X Link	M12, B-coded
Connection type – Inputs	8x M12, A-coded
Connection type – I/O power supply	M8, 4-pin
Power consumption – Internal I/O	0.5 W
Power consumption – X2X Link power supply	0.75 W
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA IIA T5 Gc; IP67, Ta = 0 - Max. 60°C; TÜV 05 ATEX 7201X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – KC	Yes
B&R ID code	0x1A1B
Status indicators	I/O function per channel, supply voltage, bus function

I/O power supply

Power consumption – Sensor power supply	Max. 12 W " data-placement="top" data-html="true" data-container="body" data-content="The power consumption of the sensors and actuators connected to the module is not permitted to exceed 12 W.">
Nominal voltage	24 VDC
Voltage range	18 to 30 VDC
Integrated protective function	Reverse polarity protection

Digital inputs

Input filter – Hardware	≤100 μs
Input filter – Software	1 ms
Switching threshold – Low	<5 VDC
Switching threshold – High	>15 VDC
Nominal voltage	24 VDC
Input characteristics per EN 61131-2	Type 1
Input voltage	18 to 30 VDC
Input current at 24 VDC	Typ. 7 mA
Input circuit	Sink
Input resistance	Typ. 3 kΩ
Sensor power supply	0.5 A summation current
Insulation voltage between channel and bus	500 V eff

Sensor power supply

Voltage	I/O power supply minus voltage drop for short-circuit protection
Voltage drop for short-circuit protection at 500 mA	Max. 2 VDC
Summation current	Max. 0.5 A
Short-circuit proof	Yes

Electrical properties

Electrical isolation

Channel isolated from bus ; Channel not isolated from channel

Operating conditions

Mounting orientation – Any	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP67

Ambient conditions

Temperature – Operation	-25 to 60°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C

Mechanical properties

Dimensions – Width	53 mm
Dimensions – Height	155 mm
Dimensions – Depth	42 mm
Torque for connections – M8	Max. 0.4 Nm
Torque for connections – M12	Max. 0.6 Nm
Weight	320 g
