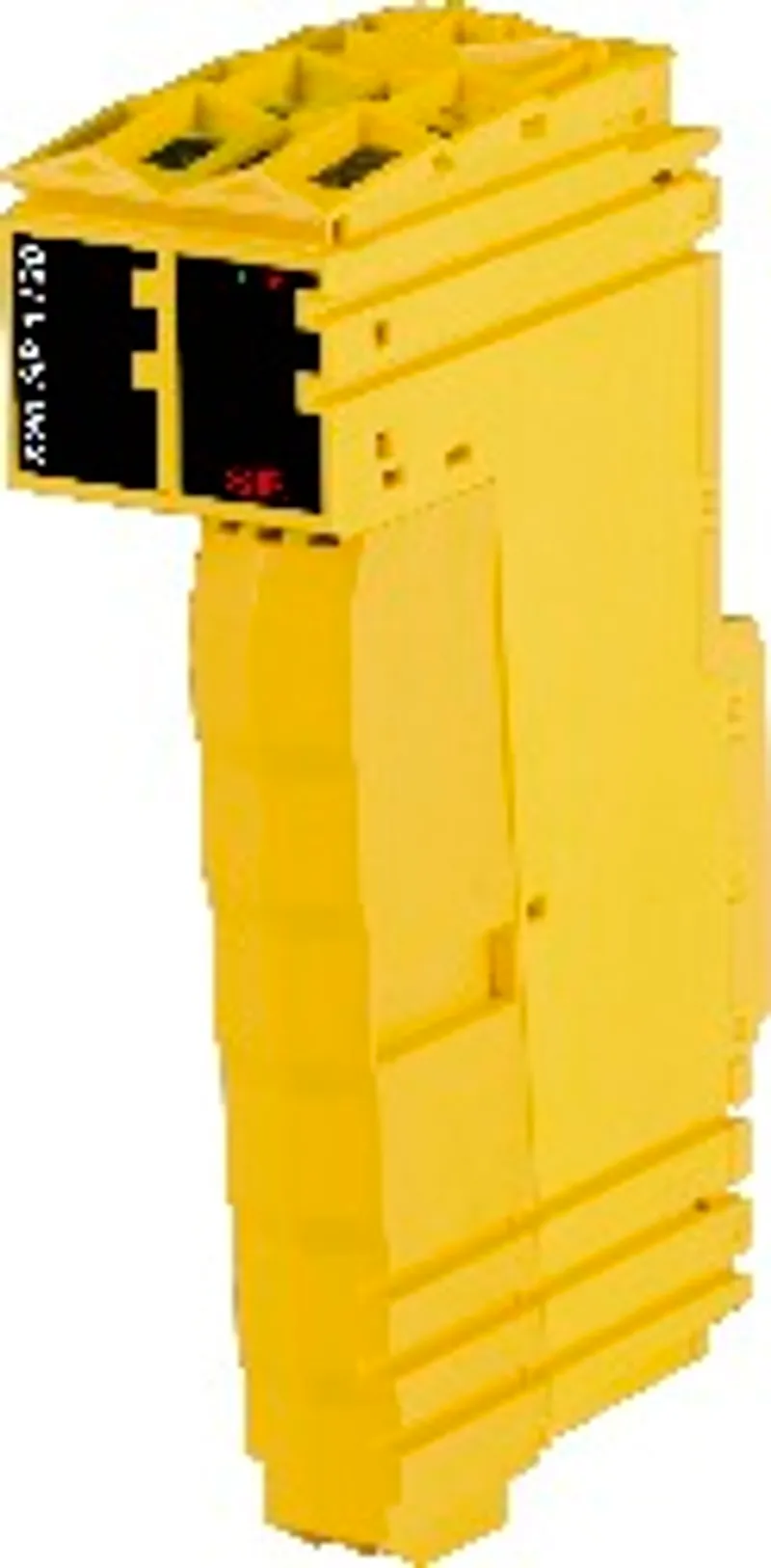

B&R X20SP1130 – I/O module, 1 safe type B1 digital output, 24 VDC, 10 A
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Power supply modules |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can X20SP1130 be shipped?
X20SP1130 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up X20SP1130 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for X20SP1130 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20SP1130, subject to availability and destination.
• 24 VDC power supply module for internal I/O power supply
• Safe cutoff of potential groups with standard outputs
• Safely switched potential can also be tapped externally
• 1 safe digital output with 10 A
• Source circuit
• Output type B
• Integrated output protection
This module is equipped with 1 safe digital output. The nominal output current is 10 A. The power supply module is used for the internal I/O power supply.
A safe digital output channel is integrated in the module for cutting off the I/O power supply of connected X20 modules in safety-related applications up to PL e or SIL 3.
The output is designed using semiconductor technology so that the safety-related characteristics do not depend on the number of operating cycles.
The "High-side-High-side" variant (output type B) is required for actuators with reference potential ( e.g. Enable inputs on frequency inverters). It is important to observe the special notices for the cabling in this case.
In addition, the instructions for switching off X20 potential groups must be observed.
The safe digital output channel provides protection against automatic restart when network errors occur.
This module is designed for X20 12-pin terminal blocks.
Accessories
Required accessories (order separately)
| X20BM26 | Bus modules — Bus module for SafeIO power supply modules; The internal I/O power supply is interrupted to the left.; For creating potential groups; Manua… |
| X20BM23 | Bus modules — Bus module for SafeIO power supply modules; The internal I/O power supply is interrupted to the left.; For creating potential groups The bu… |
| X20TB52 | Terminal blocks — Tool-free wiring using push-in technology; Simple wire release using a lever; Labeling option for each terminal connection; Plain text labe… |
Specifications
Short description
| I/O module | 1 safe type B1 digital output, 24 VDC, 10 A, without OSSD, note list of permitted modules in the potential group |
General information
| Diagnostics – Module run/error | Yes, using LED status indicator and software |
| Diagnostics – Outputs | Yes, using LED status indicator and software |
| Blackout mode – Scope | Module |
| Blackout mode – Function | Module functionality |
| Blackout mode – Standalone mode | No |
| Power consumption – Bus | 0.2 W |
| Power consumption – Internal I/O | 1.5 W |
| Electrical isolation – Channel - Bus | Yes |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – Functional safety | cULus FSPC E361559; Energy and industrial systems; Certified for functional safety; ANSI UL 1998:2013 |
| Certifications – Functional safety | IEC 61508, up to SIL 3 ; IEC 62061, up to SIL 3 ; ISO 13849-1, up to Cat. 4 / PL e ; IEC 61511, up to SIL 3 |
| Certifications – Functional safety | EN 50156-1 |
| Certifications – ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X |
| Certifications – UL | cULus E115267; Industrial control equipment; cULus E537419; Engine generator controller |
| Certifications – HazLoc | cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5 |
| Certifications – KC | Yes |
| B&R ID code | 0x1DBF |
| Status indicators | I/O function per channel, operating state, module status |
| Additional power dissipation caused by actuators (resistive) [W] " data-placement="top" data-html="true" data-container="body" data-content="R<sub>DS(on)</sub> x Nominal output current<sup>2</sup>. For a calculation example, see section "Mechanical and electrical configuration" in the X20 system user's manual."> | 3 |
Safety characteristics
| Note | See section "Safety characteristics". |
Input I/O power supply " data-placement="top" data-html="true" data-container="body" data-content="If a hardware revision <B9 is used, then the power supply unit used must be able to charge a capacitance of 4 mF in a time period of 2 ms.">
| Input voltage | 24 VDC -15% / +20% |
| Fuse | Required line fuse: Max. 10 A, slow-blow |
| Reverse polarity protection | No |
Safe digital outputs
| Quantity | 1 |
| Variant | FET, 2x positive switching, type B1, output level readable |
| Nominal voltage | 24 VDC |
| Nominal output current | 10 A |
| Output protection | See section "Inrush current behavior for output channels". |
| Braking voltage when switching off inductive loads | 1 VDC |
| Diagnostic status | Output monitoring, current measurement (shutdown in the event of overcurrent) |
| Error detection time | 2 s |
| Insulation voltage between channel and bus | 500 V eff |
| Peak short-circuit current | See section "Inrush current behavior for output channels". |
| Leakage current when the output is switched off | 1 mA |
| R DS(on) | 30 mΩ |
| Switching voltage | I/O power supply minus voltage drop due to R DS(on) |
| Max. switching frequency | 5 times per minute with max. 2 Hz; Hardware upgrade 2.2.0.0 and later: 120 times per minute with max. 2 Hz; See section "Inrush current behavior for output channels" and table "Switching inductive loads". |
| Test pulse length | Without test pulse |
| Max. capacitive load | 1 mF |
| Minimum load | 15 mA |
Current on loss of ground
| I OUT | <1 mA |
| I GND | <50 mA |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | Yes |
| Installation elevation above sea level | 0 to 2000 m, no limitation |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Horizontal mounting orientation | 0 to 60°C |
| Temperature – Vertical mounting orientation | 0 to 35°C |
| Temperature – Derating | See section "Derating". |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Note | Order 1x safety-keyed terminal block separately.; Order 1x safety-keyed bus module separately. |
| Pitch | 25 +0.2 mm |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Data sheets SafeIO and SafeLogic | PDF · 28 MB · 3.5.0 (09/02/2026) - EN |
| Integrated safety technology user's manual | PDF · 46 MB · 6.8.0 (09/02/2026) - EN |
| X20 System User´s Manual | PDF · 50 MB · 4.40 (03/10/2026) - EN |
CAD & dimension drawings
| 3D file STEP X20(c)Sxxxxx - Terminal block right side | ZIP · 21 KB · 1.00 (06/09/2016) |
| 3D file STEP X20Sxxx - Terminal block left side | ZIP · 19 KB · 1.00 (05/07/2013) |
| DFX File I/O Slice | ZIP · 4 KB · 1.00 (05/27/2013) |
| Dimensions PDF X20 I/O Slice | PDF · 45 KB · 1.00 (05/27/2013) |
