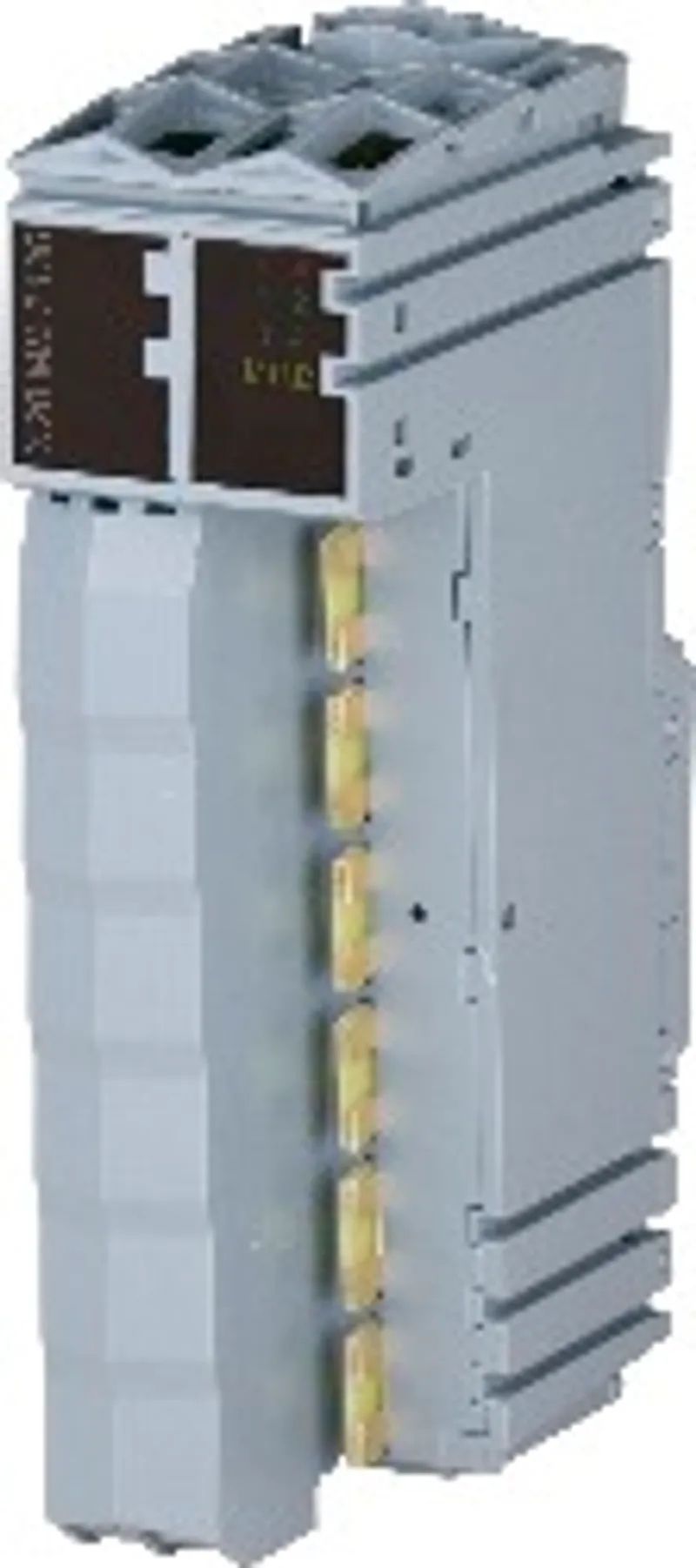

B&R X20MM2436

I/O module, 2-channel PWM motor bridge

MPN: X20MM2436
Category: Motor controllers

€136.74excl. VAT & shipping

In stock — 1 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X20MM2436?

2x outputs (H bridge) with PWM control and 24 to 39 VDC ±25% supply

3 A nominal current (3.5 A max current)

15 Hz to 50 kHz frequency, 16-bit

Frequency mode with 10 to 6553.5 Hz or 1 to 655.35 Hz resolution.

PWM resolution, 15-bit + sign, minimum 10 ns

Configurable dither

2x 2 inputs 24V, can be configured as AB

Sink connection

1-wire connections

The motor bridge module is used to control 2 DC motors with a nominal voltage of 24 to 39 VDC ±25% at a nominal current up to 3 A. The module can be reconfigured and used in current controller mode for controlling inductive loads. The module is also equipped with 4 digital inputs, which can be used as incremental counters. Each motor is controlled with a full-bridge (H-bridge). This enables the motors to be moved in both directions.

Specifications

Short description

I/O module

2-channel PWM motor bridge, 2 AB incremental encoders

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – Output	Yes, using LED status indicator and software
Diagnostics – I/O power supply	Yes, using software
Power consumption – 24 VDC	2.45 W
Power consumption – 48 VDC	3.15 W
Power consumption – Bus	0.01 W
Power consumption – Internal I/O	-
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cURus E225616; Power conversion equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
Certifications – KC	Yes
B&R ID code	0x26B5
Status indicators	I/O function per channel, operating state, module status
Additional power dissipation caused by actuators (resistive) [W]	-

Digital inputs

Input filter – Hardware	<5 µs
Input filter – Software	-
Switching threshold – Low	<5 VDC
Switching threshold – High	>15 VDC
Quantity	4
Nominal voltage	24 VDC
Input voltage	24 VDC (-15% / +20%)
Input current at 24 VDC	Approx. 1.3 mA
Input circuit	Sink
Connection type	1-wire connections
Input resistance	Typ. 18 kΩ
Additional functions	2x AB incremental encoder, 1x ABR counter, 2x event counter, 2x period duration/gate measurement
Insulation voltage between channel and bus	500 V eff

AB incremental encoder

Quantity	2
Encoder inputs	24 V, asymmetrical
Counter size	16-bit
Input frequency	Max. 50 kHz
Evaluation	4x
Signal form	Square wave pulse

PWM output

Actuator power supply – Supply	External
Actuator power supply – Fuse	Required line fuse: Max. 10 A, slow-blow
Quantity	2
Nominal voltage	24 to 39 VDC ±25% (note: The tolerance value is composed of the voltage tolerances and permissible total AC voltage component with a peak value of 5% of the rated voltage.)
Nominal current	3 A
Maximum current	3.5 A (2 s)
PWM frequency	Standard operating mode: 15 Hz to 50 kHz; Frequency operating mode: 1 Hz to 6553.5 Hz; SuperVibe operating mode: 1 Hz to 50 kHz
Output protection	Thermal shutdown in the event of overcurrent or short circuit
Variant	H bridge
Configurable dither	Amplitude, frequency
Period duration resolution (PWM/current operating mode)	16-bit, min. 20 μs
Frequency resolution	Frequency mode ; Scaling 0.1 Hz <3000 Hz: 0.1 Hz; 3000 to 6553.5 Hz: 0.1 to 0.4 Hz; Scaling 0.01 Hz <300 Hz: 0.01 Hz; 300 to 655.35 Hz: 0.01 to 0.04 Hz; ; SuperVibe mode ; Scaling 1 Hz <10 kHz: 1 Hz; 10 to 50 kHz: 1 to 40 Hz; Scaling 0.1 Hz <1000 Hz: 0.1 Hz; 1000 to 6553.5 Hz: 0.1 to 4 Hz
Phase shift PWM1 to PWM2	180° - if possible (according to operating mode)
DC bus capacitance	100 μF
PWM pulse width	15 bits plus sign ≥10 ns
Frequency mode	15 bits plus sign ≥10 ns
Insulation voltage between channel and bus	500 V eff

Electrical properties

Electrical isolation

Channel isolated from bus ; Channel not isolated from channel

Operating conditions

Mounting orientation – Horizontal	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 50°C
Temperature – Vertical mounting orientation	Not permitted
Temperature – Derating	See section "Derating".
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block X20TB12 separately. ; Order 1x bus module X20BM31 separately.
Pitch	25 +0.2 mm

Accessories

Required accessories (order separately)

X20BM31	Bus modules — Bus module for double-width I/O modules; The internal I/O supply is interconnected The bus module serves as a basis for all double-width X2…
X20TB12	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl…
